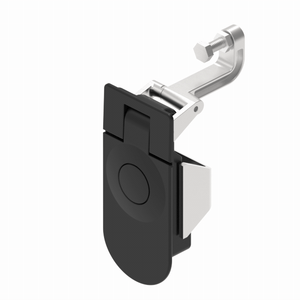

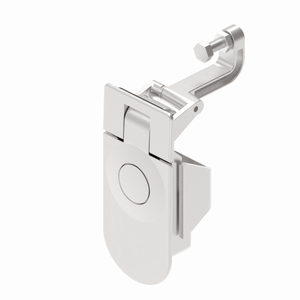

A-1445-1 Sealed Lever Compression Lock
This is an IP65 sealed lever compression lock for vehicles, featuring a flush panel and a push-button release mechanism. Once closed, the lever compression mechanism tightens the door panel. The locking distance at the rear is adjustable, accommodating various door thicknesses, seal compression amounts, and door frame positions. This product is suitable for pickup truck canopies, pickup truck tailgates, RV hatches, trailers, modified vehicles, onboard toolboxes, air compressors, generator sets, and doors of equipment subject to significant vibration. Compared to standard cam locks, this type of compression lock is better suited for vehicle and equipment applications that require vibration resistance, prevention of loosening, and a tight seal.
- Material: Zinc Alloy
- Protection Level: IP65
- Mounting Method: Adjustable Spacing
- Entry Restriction: CH751 Key + Push Button Lock
- Application Scenarios: Pickup Truck Canopy, Pickup Truck Bed Cover, RV Hatch Door, Camper Roof, Modified Vehicle Exterior Hatch Door, Vehicle Toolbox, Service Vehicle Tool Hatch Door, Pickup Truck Toolbox.
Detailed Specifications

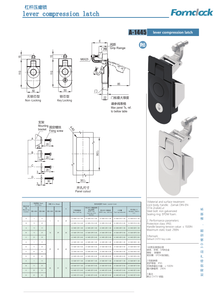

| Image | Model | Door thickness compatibility | Effective Lever Height | Lock Cylinder Specifications | Material and Surface Treatment | Download |
|---|---|---|---|---|---|---|
| A-1445-114-1-40 | Type A (1~11mm) | 1~14mm | Keyless | Powder Coated Matte Black | ||
| A-1445-114-1-30 | Type A (1~11mm) | 1~14mm | Keyless | Chrome Plating | ||
| A-1445-129-1-40 | Type A (1~11mm) | 14~29mm | Keyless | Powder Coated Matte Black | ||
| A-1445-129-1-30 | Type A (1~11mm) | 14~29mm | Keyless | Chrome Plating | ||
| A-1445-145-1-40 | Type A (1~11mm) | 29~45mm | Keyless | Powder Coated Matte Black | ||
| A-1445-145-1-30 | Type A (1~11mm) | 29~45mm | Keyless | Chrome Plating | ||
| A-1445-157-1-40 | Type A (1~11mm) | 45~57mm | Keyless | Powder Coated Matte Black | ||
| A-1445-157-1-30 | Type A (1~11mm) | 45~57mm | Keyless | Chrome Plating | ||
| A-1445-214-1-40 | Type A (1~11mm) | 1~14mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-214-1-30 | Type A (1~11mm) | 1~14mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-229-1-40 | Type A (1~11mm) | 14~29mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-229-1-30 | Type A (1~11mm) | 14~29mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-245-1-40 | Type A (1~11mm) | 29~45mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-245-1-30 | Type A (1~11mm) | 29~45mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-257-1-40 | Type A (1~11mm) | 45~57mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-257-1-30 | Type A (1~11mm) | 45~57mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-414-1-40 | Type A (1~11mm) | 1~14mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-414-1-30 | Type A (1~11mm) | 1~14mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating | ||
| A-1445-429-1-40 | Type A (1~11mm) | 14~29mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-429-1-30 | Type A (1~11mm) | 14~29mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating | ||
| A-1445-445-1-40 | Type A (1~11mm) | 29~45mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-445-1-30 | Type A (1~11mm) | 29~45mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating | ||
| A-1445-457-1-40 | Type A (1~11mm) | 45~57mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-457-1-30 | Type A (1~11mm) | 45~57mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock provide rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the difference between this lock and a standard rotary handle lock?
This is a Lever Compression Lock that generates compressive force when closed, ensuring a tighter fit between the door panel and the sealing strip. Standard rotary handle locks primarily rotate the lock tongue to secure the door panel, which may not provide a significant compressive effect.
Why is it suitable for vehicles and air compressors?
During the operation of equipment such as vehicles, air compressors, and generator sets, significant vibrations can occur, causing ordinary locks to lead to door panel looseness or abnormal noises. The compression lock can provide more stable clamping force, reducing the loosening issues caused by vibrations.
Can the combination key be customized?
Can accommodate approximately 200 combination keys, facilitating project grouping management and reducing the risk of key duplication. Suitable for vehicle modification factories, RV manufacturers, pickup truck canopy manufacturers, and equipment enclosure manufacturers for bulk matching.
