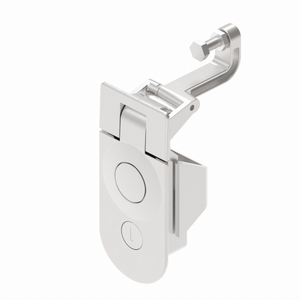

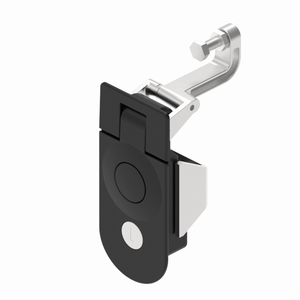

A-1445-2 Sealed Lever Compression Lock
This is a vehicle-use IP65 sealed lever compression lock, featuring a flush panel and a push-button release mechanism. Once closed, the lever compression mechanism tightens the door panel. The rear locking distance is adjustable, accommodating various door thicknesses, seal compression amounts, and door frame positions. This product is suitable for pickup truck tops, pickup truck lids, RV hatches, trailers, modified vehicles, toolboxes, air compressors, generator sets, and doors of equipment subjected to significant vibrations. Compared to standard cam locks, this type of compression lock is more suitable for vehicle and equipment applications that require vibration resistance, loosening prevention, and a tight seal.
- Material: Zinc Alloy
- Protection Level: IP65
- Mounting Method: Adjustable Spacing
- Entry Restriction: CH751 Key + Push Button Lock
- Application Scenarios: Pickup Roof, Pickup Bed Cover, RV Hatch Door, Camper Roof, Modified Vehicle Exterior Hatch Door, Vehicle Toolbox, Service Vehicle Tool Hatch Door, Pickup Toolbox.
Detailed Specifications
| Image | Model | Door thickness compatibility | Effective Lever Height | Lock Cylinder Specifications | Material and Surface Treatment | Download |
|---|---|---|---|---|---|---|
| A-1445-114-1-40 | Type A (1~11mm) | 1~14mm | Keyless | Powder Coated Matte Black | ||
| A-1445-114-1-30 | Type A (1~11mm) | 1~14mm | Keyless | Chrome Plating | ||
| A-1445-129-1-40 | Type A (1~11mm) | 14~29mm | Keyless | Powder Coated Matte Black | ||
| A-1445-129-1-30 | Type A (1~11mm) | 14~29mm | Keyless | Chrome Plating | ||
| A-1445-145-1-40 | Type A (1~11mm) | 29~45mm | Keyless | Powder Coated Matte Black | ||
| A-1445-145-1-30 | Type A (1~11mm) | 29~45mm | Keyless | Chrome Plating | ||
| A-1445-157-1-40 | Type A (1~11mm) | 45~57mm | Keyless | Powder Coated Matte Black | ||
| A-1445-157-1-30 | Type A (1~11mm) | 45~57mm | Keyless | Chrome Plating | ||
| A-1445-214-1-40 | Type A (1~11mm) | 1~14mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-214-1-30 | Type A (1~11mm) | 1~14mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-229-1-40 | Type A (1~11mm) | 14~29mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-229-1-30 | Type A (1~11mm) | 14~29mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-245-1-40 | Type A (1~11mm) | 29~45mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-245-1-30 | Type A (1~11mm) | 29~45mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-257-1-40 | Type A (1~11mm) | 45~57mm | CH751 Lock Cylinder | Powder Coated Matte Black | ||
| A-1445-257-1-30 | Type A (1~11mm) | 45~57mm | CH751 Lock Cylinder | Chrome Plating | ||
| A-1445-414-1-40 | Type A (1~11mm) | 1~14mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-414-1-30 | Type A (1~11mm) | 1~14mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating | ||
| A-1445-429-1-40 | Type A (1~11mm) | 14~29mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-429-1-30 | Type A (1~11mm) | 14~29mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating | ||
| A-1445-445-1-40 | Type A (1~11mm) | 29~45mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-445-1-30 | Type A (1~11mm) | 29~45mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating | ||
| A-1445-457-1-40 | Type A (1~11mm) | 45~57mm | Cross slot (optional hexagon 4.5mm) | Powder Coated Matte Black | ||
| A-1445-457-1-30 | Type A (1~11mm) | 45~57mm | Cross slot (optional hexagon 4.5mm) | Chrome Plating |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer custom rotary locks OEM/ODM?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the difference between this lock and a standard rotary handle lock?
This is a Lever Compression Lock that generates clamping force when closed, ensuring a tighter fit between the door panel and the gasket. Standard rotary handle locks primarily rotate the lock tongue to secure the door panel, which may not provide a significant clamping effect.
Why It Is Suitable for Vehicles and Air Compressors?
During operation, equipment such as vehicles, air compressors, and generator sets experiences significant vibrations, which can cause ordinary locks to result in loose door panels or unusual noises. The Compression Lock provides more stable clamping force, reducing the loosening issues caused by vibrations.
Custom Combination Key Available?
Can accommodate approximately 200 combination keys, facilitating project grouping management and reducing the risk of key duplication. Suitable for vehicle modification factories, RV manufacturers, pickup truck canopy manufacturers, and equipment enclosure manufacturers for bulk matching.
