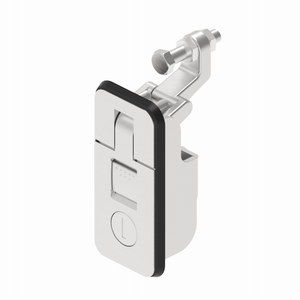

A-1446-110 Small Sealed Lever Compression Lock
This is an IP65 Sealed Lever Compression Lock featuring a CH751 key locking mechanism. To use, first unlock the cylinder, then press the button to release the lever, which secures the door panel through the lever compression mechanism. The product includes an adjustable locking distance, allowing for customization based on door thickness, seal compression, and door frame position. This lock is suitable for pickup truck tops, pickup truck tailgates, RV hatches, trailers, modified vehicles, air compressors, generator sets, and doors of equipment subjected to significant vibrations. Compared to standard cam locks, the compression lock enhances the clamping effect on the door panel, reducing vibration loosening and noise. The product can be customized with approximately 200 key combinations, making it ideal for vehicles and equipment projects with basic anti-theft and key grouping management needs.
- Material: Zinc Alloy
- Protection Level: IP65
- Mounting Method: Adjustable Spacing
- Entry Restriction: CH751 Key + Push Button Lock
- Usage scenarios: Pickup truck canopy, pickup truck tailgate, RV hatch door, camper roof, modified vehicle external hatch door, vehicle toolbox, service vehicle tool hatch door, pickup truck toolbox.
Detailed Specifications

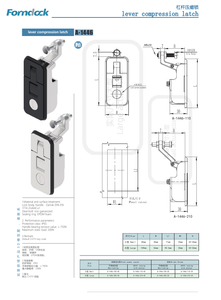

| Image | Model | Size | Drive Method | Surface Treatment | Download |
|---|---|---|---|---|---|

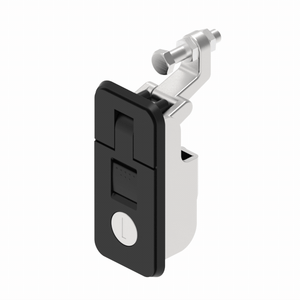

| A-1446-110-40 | Small, hole size 71*25mm | CH751 Key | Powder Coated Black | ||
| A-1446-110-30 | Small, hole size 71*25mm | CH751 Key | Chrome Plating | ||
| A-1446-210-40 | Large, hole size 90.5*35mm | CH751 Key | Powder Coated Black | ||
| A-1446-210-30 | Large, hole size 90.5*35mm | CH751 Key | Powder Coated Black |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structure, surface treatment, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the difference between this lock and a standard rotary handle lock?
This is a Lever Compression Lock that generates compressive force when closed, ensuring a tighter fit between the door panel and the seal. Unlike standard rotary handle locks, which primarily rotate the latch to secure the door panel, this lock provides a more pronounced compressive effect.
Why is it suitable for vehicles and air compressors?
During the operation of vehicles, air compressors, generator sets, and other equipment, significant vibrations can occur, causing ordinary locks to lead to door panel looseness or abnormal noises. The compression lock provides more stable clamping force, reducing the loosening issues caused by vibrations.
Custom Combination Key Available?
Can accommodate approximately 200 combination keys, facilitating project group management and reducing the risk of the same key opening multiple locks. Suitable for vehicle modification factories, RV manufacturers, pickup truck canopy manufacturers, and equipment enclosure manufacturers for bulk matching.
