A-1202-10 Rotary Handle Lock

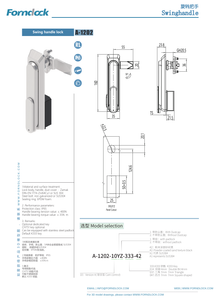

This is a single-point rotary handle lock, suitable for electrical enclosures, distribution cabinets, control cabinets, communication cabinets, industrial equipment cabinets, and various types of box doors. The product features a long strip rotary handle structure, with a single-point lock tongue at the rear to secure the cabinet door. This series can be customized according to customer requirements, including options for a dust cover, padlock structure, K333 key cylinder, or various tool cylinder configurations, making it suitable for different access management and usage environment needs. Specific materials, protection ratings, cylinder specifications, hole dimensions, and door thickness must be confirmed according to the drawings.
- Material: Zinc Alloy/SUS304
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosure, Outdoor Control Cabinet, Communication Cabinet, Distribution Cabinet, Industrial Equipment Cabinet, Generator Door, Energy Storage Cabinet.
Detailed Specifications
| Image | Model | Locking Method | Dust Cover Included | With Hook | Lock Cylinder Specification | Material and Surface Treatment | Download |
|---|---|---|---|---|---|---|---|

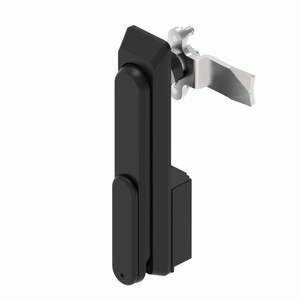

| A-1202-1011-40 | Lock Tongue Type | with dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1202-1012-40 | Lock Tongue Type | with dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1202-1021-40 | Lock Tongue Type | Without dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1202-1022-40 | Lock Tongue Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||

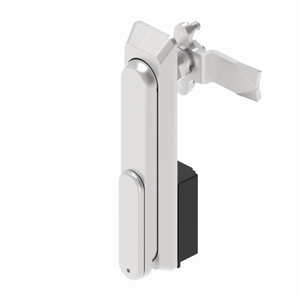

| A-1202-1011-A1 | Lock Tongue Type | with dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1202-1012-A1 | Lock Tongue Type | with dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1202-1021-A1 | Lock Tongue Type | Without dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1202-1022-A1 | Lock Tongue Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, equipment maintenance doors, and other scenarios. It is particularly well-suited for lightweight cabinets and general industrial applications.
How to choose K333 Key and Tool Lock Cylinder?
This product's key features include a lightweight plastic structure, a front sliding dust cover, and a single-point rotary handle lock. Compared to standard single-point handle locks, it emphasizes portability, dust resistance, and ease of daily operation.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray testing requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
How to choose K333 Key and Tool Lock Cylinder?
For key management, the K333 Keyed Cylinder can be selected; if a uniform tool operation is preferred, options such as triangular, square, slotted, double-wing, and hexagonal tool cylinders are available. Tool cylinders are commonly used in electrical enclosures and distribution cabinets.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
