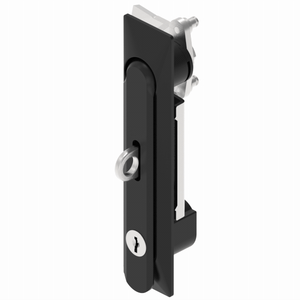

A-1113 Rotary Handle Lock
This is a rotary handle lock for industrial cabinet doors, suitable for electrical enclosures, control cabinets, distribution cabinets, communication cabinets, and various equipment doors. The product features a flush handle design that is stored within the panel when not in use and flips out for operation, allowing for single-point locking as well as the option to connect to a locking rod or linkage mechanism for multi-point locking. The product can be equipped with a padlock function, facilitating the addition of locks or seals on-site, enhancing equipment safety management and preventing accidental openings.
- Material: Zinc Alloy
- Configuration: with padlock
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosure, Outdoor Control Cabinet, Communication Cabinet, Distribution Cabinet, Industrial Equipment Cabinet, Generator Door, Energy Storage Cabinet.

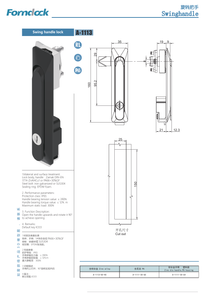

Detailed Specifications
| Image | Model | Size | With Hook | Material | Download |
|---|---|---|---|---|---|
| A-1113-10-40 | Small size, hole size 70*25mm | Without hook | Zinc Alloy (Nylon Base, Nylon Handle Optional) | ||
| A-1113-20-40 | Medium size, hole size 110*25mm | Without hook | Zinc Alloy (Nylon Base, Nylon Handle Optional) | ||
| A-1113-22-40 | Medium size, hole size 110*25mm | With hook | Zinc Alloy (Nylon Base, Nylon Handle Optional) | ||
| A-1113-30-40 | Large, hole size 120*25mm | Without hook | Zinc Alloy (Nylon Base, Nylon Handle Optional) | ||
| A-1113-32-40 | Large, hole size 120*25mm | With hook | Zinc Alloy (Nylon Base, Nylon Handle Optional) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for customers, but we hope that the shipping costs can be covered by you.
Where is this Rotary Handle Lock mainly suitable for use?
This stainless steel rotary handle lock is primarily suitable for electrical enclosures, control cabinets, communication cabinets, distribution cabinets, outdoor equipment boxes, generator doors, and industrial equipment cabinet doors. If equipped with a locking rod system at the rear, it can also be used for taller or larger cabinet doors.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restriction.
Is stainless steel suitable for outdoor use?
Suitable. Based on the information you provided, this product is made of stainless steel, suitable for outdoor and industrial environments. However, it needs to be confirmed whether it is SUS304 or SUS316. If used in coastal, high-salt mist, or highly corrosive environments, it is recommended to prioritize SUS316 or increase the salt spray test requirements.
What is the difference between it and a standard cam lock?
Standard cam locks are typically small key or tool-driven, suitable for lightweight cabinet doors. This model features a rotary handle structure, providing greater operating force and convenience. It can be connected to a locking rod or multi-point locking system, making it more suitable for electrical enclosures, communication cabinets, and outdoor equipment doors.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression amount, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
