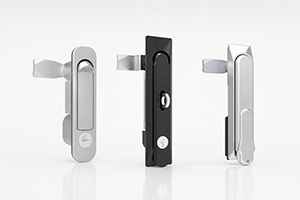

The Single Point Swing Handle Latch is an industrial door lock that integrates an opening handle and locking mechanism, primarily driven by rotating the handle to operate a single lock tongue for closing and opening the door. The product features a compact structure and easy installation, making it suitable for applications such as medium and small cabinets, electrical boxes, communication cabinets, distribution cabinets, and industrial equipment doors. This series typically adopts a flush design, allowing the handle to fold and hide after closing the door, providing both security and a clean appearance. It supports key locking, push button opening, padlocks, and various lock cylinder structures, and can be paired with waterproof seals, shock-resistant structures, and left or right door configurations. The product is widely used in fields such as renewable energy equipment, rail transportation, automation equipment, outdoor enclosures, and industrial control cabinets, offering excellent durability, protection, and ease of operation.
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
Single-Point Swing Handle Latches
The Single-Point Swing Handle Latch is designed as a mechanical enclosure locking system that converts rotational handle movement into a direct cam or bolt engagement at a single locking point. Compared with multi-point systems, the swinging handle structure simplifies actuation while maintaining stable enclosure closure performance for industrial cabinets, machinery housings, and access doors.
ForndLock engineers each swinging handle latch system with a focus on structural reliability, installation adaptability, and controlled locking force distribution for industrial enclosure applications.
Item | Specification |
|---|---|
Maximum Static Load | 250 N (55 lbf) |
Ultimate Load Capacity | 580 N (130 lbf) |
Each locking point of the Single-Point Swing Handle Latch is engineered to withstand a maximum static load of 250 N (55 lbf), while the system achieves an average ultimate load capacity of 580 N (130 lbf) under controlled testing conditions.
ForndLock Single-Point Swing Handle Latch integrates a modular locking tab system that supports multiple spacing configurations.
Parameter | Value |
|---|---|
Adjustment Range | 6.5 mm to 112 mm |
Increment | 5.5 mm steps |
ForndLock manufactures swinging handle latch systems using:
Zinc alloy die-casting (industrial grade structural strength)
Stainless steel (corrosion-resistant environments)
Surface treatments include:
Powder coating (black industrial finish)
Bright stainless polishing
Corrosion-resistant plating
These configurations ensure durability in:
Outdoor enclosures
High humidity environments
Industrial machinery zones
The Single-Point Swing Handle Latch is widely applied in: industrial electrical cabinets, mechanical equipment doors, outdoor control enclosures, communication infrastructure housings, access panels requiring dust and water resistance
Its compact rotary handle design ensures fast operation with minimal protrusion from enclosure surfaces.
ForndLock designs and manufactures industrial-grade Single-Point Swing Handle Latch systems with full OEM/ODM customization, precision engineering validation, and scalable production capability.
If your project requires reliable enclosure locking systems with verified load performance, adjustable installation geometry, and industrial durability, ForndLock provides engineered solutions built for long-term industrial deployment.
Custom engineering, bulk supply, and factory direct support are available for global enclosure manufacturers and OEM partners.
It is used to secure industrial enclosure doors with a single mechanical locking point, ideal for electrical cabinets and machinery access systems.
ForndLock systems support up to 250 N static load per point and 580 N ultimate system load under engineering test conditions.
It supports enclosure panels from 1.5 mm to 4.5 mm thickness, including double-layer door structures.
Single-point systems use one locking engagement for faster operation, while multi-point systems distribute locking force across multiple points.
Yes, ForndLock provides OEM/ODM manufacturing with custom engineering, tooling, and mass production support.
Load testing, vibration resistance, corrosion resistance, and lifecycle durability tests are applied in ForndLock engineering labs.
Yes, it is designed for industrial outdoor environments with corrosion-resistant materials and sealing compatibility.
