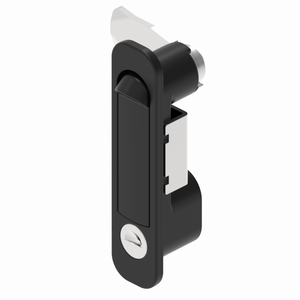

A-1118 Rotary Handle Lock

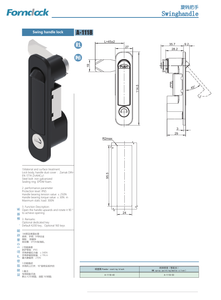

This is a zinc alloy single-point rotary handle lock featuring a flush long panel structure. The handle is equipped with a raised pressing area, allowing users to easily press and open the handle. The product includes a keyed lock cylinder for basic locking management; the rear utilizes a single-point lock tongue structure, suitable for electrical enclosures, control cabinets, communication cabinets, industrial equipment cabinets, instrument boxes, and various small to medium-sized equipment doors. The product is available in black and silver finishes, with specific material grades, surface treatments, protection ratings, and installation dimensions to be confirmed according to the drawings.
- Material: Zinc Alloy
- Protection Rating: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosures, Outdoor Control Cabinets, Communication Cabinets, Distribution Cabinets, Industrial Equipment Cabinets, Generator Set Doors, Energy Storage Cabinets.
Detailed Specifications
| Image | Model | Surface Treatment | Download |
|---|---|---|---|
| A-1118-40 | Powder Coated Black | ||

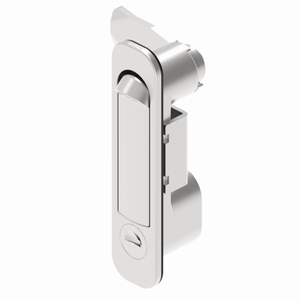

| A-1118-50 | Spray Painted Matte Silver |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Where is this rotary handle lock mainly suitable for use?
This stainless steel rotary handle lock is primarily suitable for electrical enclosures, control cabinets, communication cabinets, distribution cabinets, outdoor equipment boxes, generator doors, and industrial equipment cabinet doors. If equipped with a lock rod system at the rear, it can also be used for taller or larger cabinet doors.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restrictions.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What is the difference between it and a standard cam lock?
The standard turn latch lock is typically driven by a small key or tool, suitable for lightweight cabinet doors. This model features a rotary handle structure, providing greater operational force and convenience. It can be connected to a locking rod or multi-point locking system, making it more suitable for electrical enclosures, communication cabinets, and outdoor equipment doors.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a foundation for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
