Rotary Latch Systems/Rotary Latches

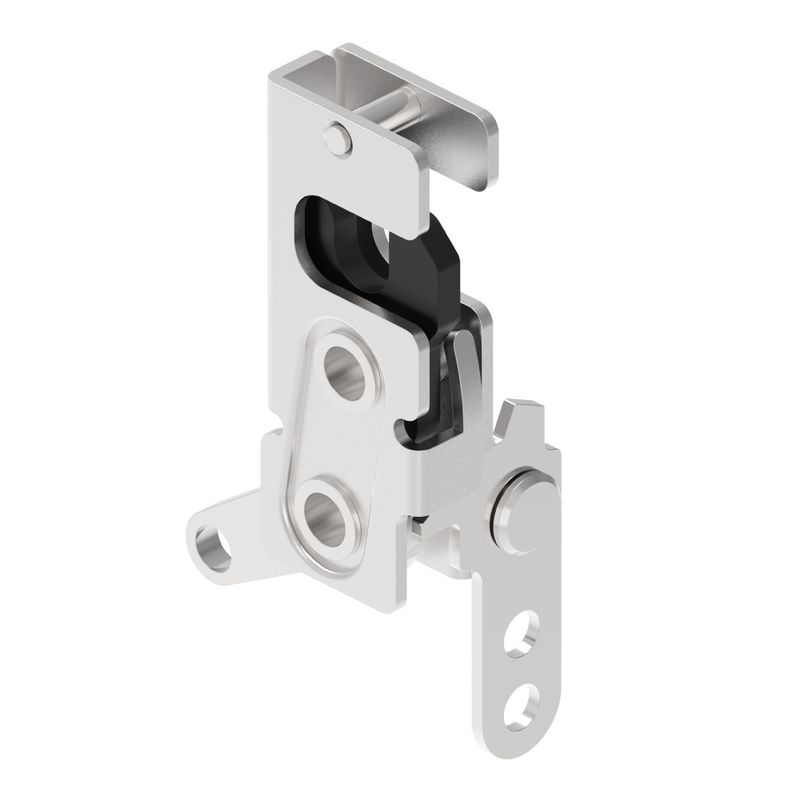

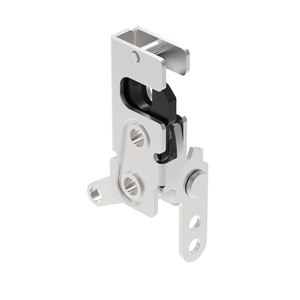

3005-81 Double Trigger, Vertical/Bottom Drive Rotary Lock
The 3005-81 Dual Trigger Vertical/Bottom Drive Rotary Lock features a dual trigger design that enables vertical and bottom drive operation. It supports left and right single-stage and double-stage selection, compatible with Ф7.2 through holes, M6x1, and 1/4-20 threaded installations. Available materials include galvanized steel or stainless steel, with a maximum load capacity of 3600N, compliant with REACH standards. This lock is specifically designed for synchronized locking of industrial cabinets, equipment doors, and vehicle compartments, suitable for project bulk matching.
- Maximum Size of Pin: 9.5mm
- Maximum Load: 3600N
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: RV / Trailer Storage Compartment Doors, Engineering Vehicle Maintenance Doors, Pickup / Truck Toolboxes, Generator / Outdoor Equipment Boxes, Agricultural / Construction Machinery Covers, Special Vehicle Small Hatches.
Detailed Specifications
| Image | Model | Level & Direction | Mounting Method | Drive Method | Style | Material | Download |
|---|---|---|---|---|---|---|---|
| 3005-11-11 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-12 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-11 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-12 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-21 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-22 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-21 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-22 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-31 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-32 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-31 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-32 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-41 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-42 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-41 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-42 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-51 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-52 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-51 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-52 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-61 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-62 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-61 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-62 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-71 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-72 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-71 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-72 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-81 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-82 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-81 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-82 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-91 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Double trigger, vertical/top | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-91 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Double trigger, vertical/top | Standard | Galvanized Steel (Optional Stainless Steel) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided based on actual demand, with no minimum order quantity restriction.
What is the standard delivery time for rotary locks?
Typically 15 to 30 days, depending on customization requirements and order quantity.
What materials are available for rotary locks?
Common materials include zinc alloy, SS304, SS316 stainless steel, and PA66+GF plastic, which can be selected based on corrosion resistance and strength requirements.
Does the rotary lock support waterproof and dustproof features?
Support. Available with IP65 or IP67 sealing ratings, ensuring reliable locking in long-term outdoor or industrial environments.
Can rotary locks be used in high humidity or marine environments?
Yes. It is recommended to use SS316 material, with options for corrosion treatment and sealed mounting.
What types of doors or enclosures are suitable?
The rotary lock is suitable for electrical enclosures, communication cabinets, rail transit equipment, engineering vehicle hatches, and industrial enclosures.
