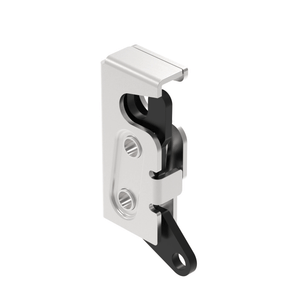

3000-30 Top Drive Rotary Lock
The 3000-30 Top Drive Rotary Lock features a compact top drive design, supporting single-stage/double-stage configurations, with a Ф6.4 through hole or M6x1 threaded fixation. Available in galvanized steel or stainless steel, it does not include a buffering device. The maximum pin stroke is 9.6mm, with a limit load of 3300N. This lock is suitable for industrial enclosures, lightweight equipment door panels, and sealed dust-proof locks for special vehicles. It is also convenient for batch matching and custom production, meeting the high reliability and long-term use requirements of engineering projects.
- Buffer Device: None
- Maximum Size of Strike Pin: 9.6mm
- Maximum Load: 3300N
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Engineering Vehicle Maintenance Doors, RV/Trailer Storage Compartment Doors, Pickup Toolbox/Truck Toolbox, Agricultural/Machinery Equipment Doors, Outdoor Equipment Boxes/Generator Doors.
Details
Detailed Introduction
Detailed Specifications
| Image | Model | Grade & Direction | Mounting Method | Drive Method | Material | Download |
|---|---|---|---|---|---|---|
| 3000-11-10 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-10 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-11-20 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Extended Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-20 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Extended Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-11-30 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-30 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) |
Compliance Documents
FAQ
How to Choose Between Stainless Steel Rotary Locks and Galvanized Rotary Locks?
Recommended stainless steel 304/316L for outdoor, humid, or corrosive environments; galvanized is sufficient for dry indoor environments.
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
Can you make custom products?
Yes, custom products are available. We develop new products every year.
What is the delivery time?
15 to 30 days, depending on the specific quantity and special packaging requirements.
What is the minimum order quantity?
Generally, the minimum order quantity is 200 PCS. However, if our inventory is sufficient, there is no minimum order quantity requirement.
How do I read your catalog?
You can email us or contact our customer service. Alternatively, download from our company website: https://forndlock.com
How to Inquire Online?
Each product has a link at the bottom for online inquiries. Please fill in the information, and we will send you the pricing.
How do I place an order?
You can place an order with us via email, fax, or phone. Please provide the following information: company name, company address, your phone number, fax number, email address, as well as model, quantity, surface treatment requirements, and any other requests you may have.
What are the payment terms?
T/T, Western Union, Letter of Credit.
