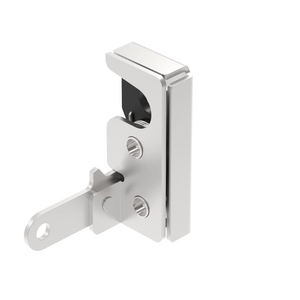

3000-20 Extended Vertical Drive Rotary Lock
The 3000-20 Extended Vertical Drive Rotary Lock features an extended vertical drive structure, suitable for industrial enclosures and equipment doors with limited vertical drive space or requiring a longer drive stroke. It supports single-stage/dual-stage, left/right orientation, and can be fixed with a Ф6.4 through hole or M6x1 threaded connection. Available in galvanized steel or stainless steel, the maximum pin strike is 9.6mm, with a maximum load capacity of 3300N, making it ideal for bulk supply and custom selection.
- Buffer Device: None
- Maximum size of the striker: 9.6mm
- Maximum Load: 3300N
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Engineering Vehicle Maintenance Doors, RV/Trailer Storage Compartment Doors, Pickup Toolbox/Truck Toolbox, Agricultural Machinery/Construction Equipment Doors, Outdoor Equipment Boxes/Generator Doors.
Details
Detailed Introduction
Detailed Specifications
| Image | Model | Grade & Direction | Mounting Method | Drive Method | Material | Download |
|---|---|---|---|---|---|---|
| 3000-11-10 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-10 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-11-20 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Extended Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-20 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Extended Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-11-30 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-30 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) |
Compliance Documents
FAQ
How to Choose Between Stainless Steel Rotary Locks and Galvanized Rotary Locks?
Recommended stainless steel 304/316L for outdoor, humid, or corrosive environments; galvanized is sufficient for dry indoor environments.
Can you send samples?
Yes, we can provide a few free samples for customers, but we hope that the shipping cost can be covered by you.
Can you make custom products?
Yes, custom products are available. We develop new products every year.
What is the delivery time?
15 to 30 days, depending on the specific quantity and special packaging requirements.
What is the minimum order quantity?
Generally, the minimum order quantity is 200 PCS. However, if our inventory is sufficient, there is no minimum order quantity requirement.
How do I read your catalog?
You can email us or contact our customer service. Alternatively, download from our company website: www.forndlock.com
How to Inquire Online?
Each product has a link for online inquiries at the bottom. Please fill in the information, and we will mail you the pricing.
How do I place an order?
You can place an order with us via email, fax, or phone. Please provide the following information: company name, company address, your phone number, fax number, email address, as well as the model, quantity, surface treatment requirements, and any other specifications you may need.
What are the payment terms?
T/T, Western Union, Letter of Credit.
