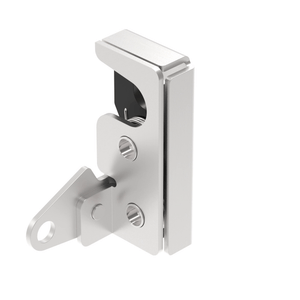

3000-10 Vertical Drive Rotary Lock
The 3000-10 Vertical Drive Rotary Lock features a vertical drive locking structure, supporting single or double-stage configurations and left or right installation options. The Φ6.4 through hole or M6×1 threaded fixing method is compatible with different equipment doors. It maintains stable locking performance under a maximum load of 3300N, making it suitable for specialized vehicles, vibrating equipment, and sealed dust-proof industrial enclosures.
- Buffer Device: None
- Maximum Size of the Strike Pin: 9.6mm
- Maximum Load: 3300N
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Engineering Vehicle Maintenance Doors, RV/Trailer Storage Compartment Doors, Pickup Toolbox/Truck Toolbox, Agricultural Machinery/Construction Equipment Doors, Outdoor Equipment Boxes/Generator Doors.
Details
Detailed Introduction
Detailed Specifications
| Image | Model | Grade & Direction | Mounting Method | Drive Method | Material | Download |
|---|---|---|---|---|---|---|
| 3000-11-10 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-10 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-11-20 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Extended Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-20 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Extended Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-11-30 -10 | Single stage (optional double stage), left | Ф6.4 through hole (optional M6x1 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3000-21-30 -10 | Single pole (optional double pole), right | Ф6.4 through hole (optional M6x1 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) |
Compliance Documents
FAQ
How to Choose Between Stainless Steel Rotary Locks and Galvanized Rotary Locks?
Recommended stainless steel 304/316L for outdoor, humid, or corrosive environments; galvanized is sufficient for dry indoor environments.
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
As a source factory, do you support customization of the material, surface treatment, or structure for this type of rotary door lock?
Support. The rotary door lock can be adjusted for single or double-stage structure, left or right configuration, and through-hole or threaded mounting according to project requirements. It is available in galvanized steel or stainless steel materials. For bulk projects, structural optimization and custom development can be carried out according to drawings.
What is the delivery time?
15 to 30 days, depending on the specific quantity and special packaging requirements.
What is the minimum order quantity?
Generally, the minimum order quantity is 200 PCS. However, if our inventory is sufficient, there is no minimum order quantity requirement.
Does the rotary door lock you manufacture meet the compliance and reliability requirements for industrial projects?
Yes. This series of rotary locks complies with REACH No. 1907/2006 requirements, with key components made from industrial-grade materials. It has undergone reliability validation for long-term vibration, frequent operation, and equipment operating environments, making it suitable for industrial equipment and vehicle door applications.
What is the factory's delivery cycle and supply stability for bulk purchases of rotary door locks for the project?
ForndLock has a stable mass production capacity and a mature supply chain system, with standard products typically completed and delivered within 15–30 days. For long-term projects and ongoing procurement needs, we can provide batch production scheduling, inventory planning, and stable supply support to ensure project delivery timelines.
How do I place an order?
You can place an order with us via email, fax, or phone. Please provide the following information: company name, company address, your phone number, fax number, email address, as well as the model, quantity, surface treatment requirements, and any other specifications you may need.
What are the payment terms?
T/T, Western Union, Letter of Credit.
