Paddle Latch Guide: Types, Materials, Installation & Industrial Applications

A paddle latch uses a paddle-style handle to release a latch mechanism and provide access to a door, panel or compartment. That much is straightforward. What actually determines whether a paddle latch performs well on a given door is a longer list: latch structure, door geometry, cutout, grip, rear clearance, striker position, material system, release method, and operating environment. Depending on the design, the paddle may operate a slide, a pawl, a rotary latch, or a linked remote latch through a cable or rod. Selecting the right configuration means working through these variables together, not choosing a latch style based on appearance alone. The sections below walk through the structural families, material logic, installation geometry, and common failure patterns that shape a working paddle latch installation.

ForndLock Industrial Flush Paddle Handle Latch

Types of Paddle Latches

Industrial paddle latches fall into four structural families — flush/recessed, surface-mount, locking, and paddle-actuated rotary systems — and each one answers a different combination of door geometry and access requirement. None of them is universally "better"; the right choice depends on what the door structure can physically accommodate.

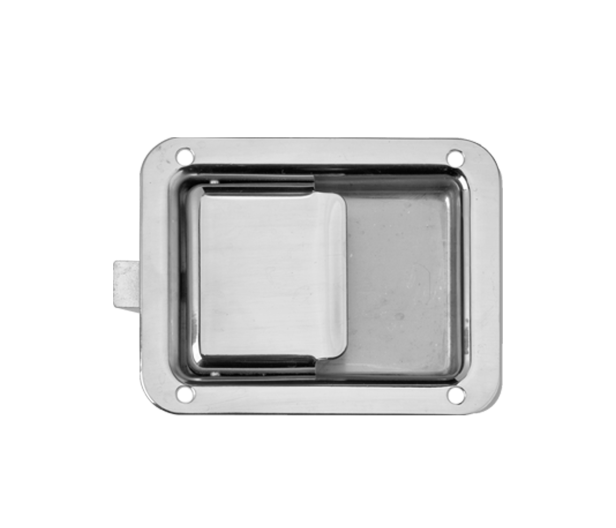

Flush / Recessed Paddle Latches

Flush paddle latches sit recessed within the panel to minimize external projection, but that low profile depends entirely on cutout accuracy and rear clearance rather than on the latch itself. They are often selected for vehicle compartments, machinery doors, and equipment panels where a protruding handle would create a snag or impact risk. The visual result is a cleaner exterior surface with fewer catch points.

The trade-off is installation sensitivity. A flush design requires a panel cutout matched to the housing, and it requires enough depth behind the panel for the mechanism to sit and move. When either dimension is off, the housing may not seat correctly, or it may seat but leave insufficient room for the paddle to travel through its full range. The engineering points worth checking early are cutout size, housing depth, rear mechanism space, and striker location — not just whether the front of the latch looks correct once mounted.

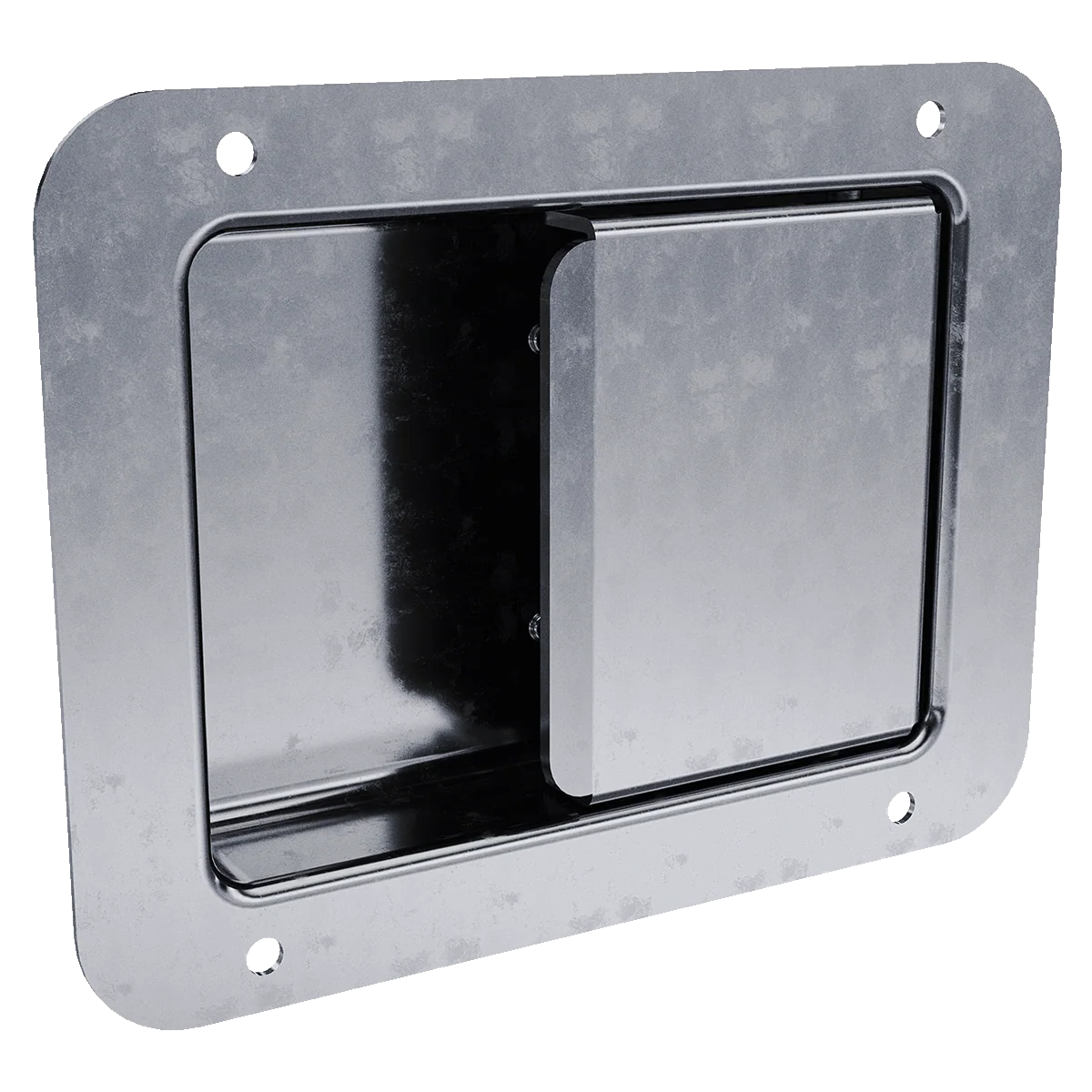

Surface-Mount Paddle Latches

Surface-mount paddle latches attach directly to the panel face, trading a flush appearance for simpler mounting and easier access to fasteners. They are a practical choice for retrofit work, or for panels where recess depth is limited and a flush housing simply will not fit behind the surface.

The compromise is that the latch body projects outward, which increases exposure to impact and snagging in high-traffic or high-vibration settings. Surface-mount hardware also depends less on rear cavity space, which makes it a reasonable fallback when a door structure cannot support a recessed design — but that convenience comes at the cost of a less protected external profile.

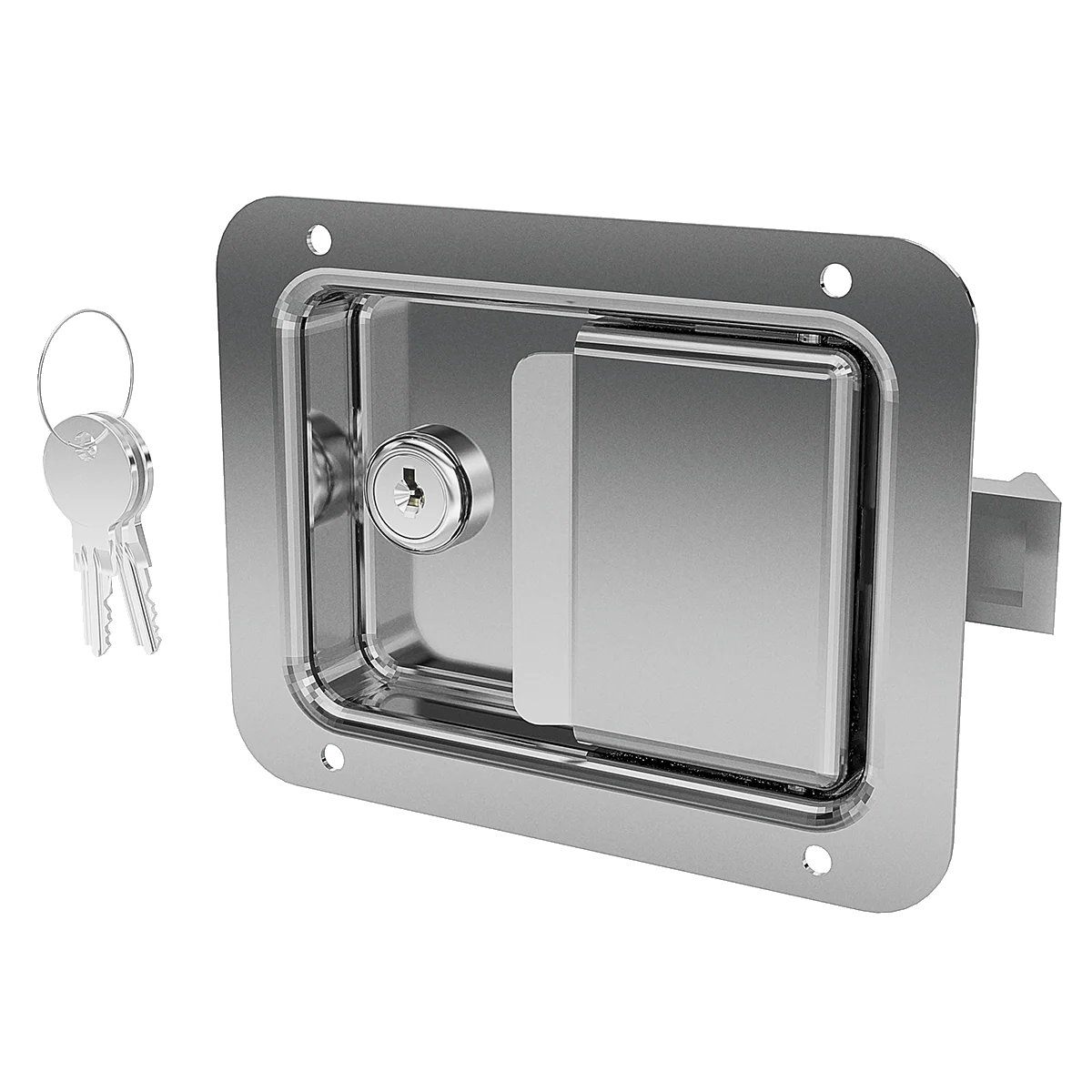

Locking Paddle Latches

Locking paddle latches add a key or padlock provision primarily to control access and authorize service, not to guarantee security on their own. The distinction matters for selection: a locking paddle restricts who can open a panel and supports maintenance scheduling, but it does not by itself determine how resistant the enclosure is to forced entry.

Selecting a locking configuration means deciding between keyed access, padlock provision, or a non-locking design based on how frequently the panel needs to be opened and by whom. It's also worth recognizing that overall security still depends on door strength, mounting quality, striker engagement, the lock mechanism itself, and the surrounding structure — a locking paddle mounted on a thin, poorly supported panel does not deliver the same outcome as the same latch on a rigid, well-braced door.

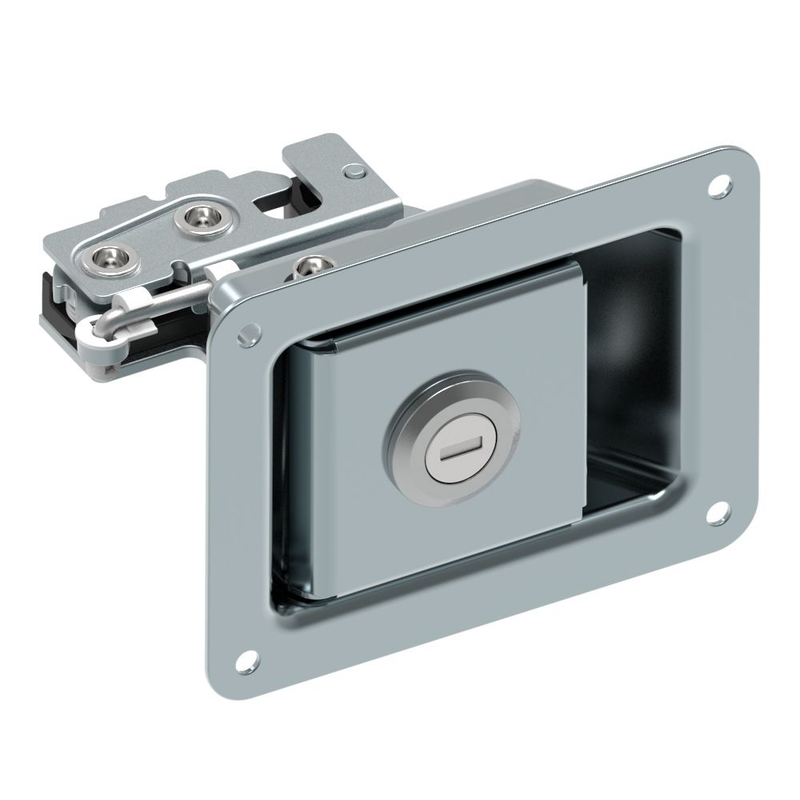

Paddle-Actuated Rotary Latch Systems

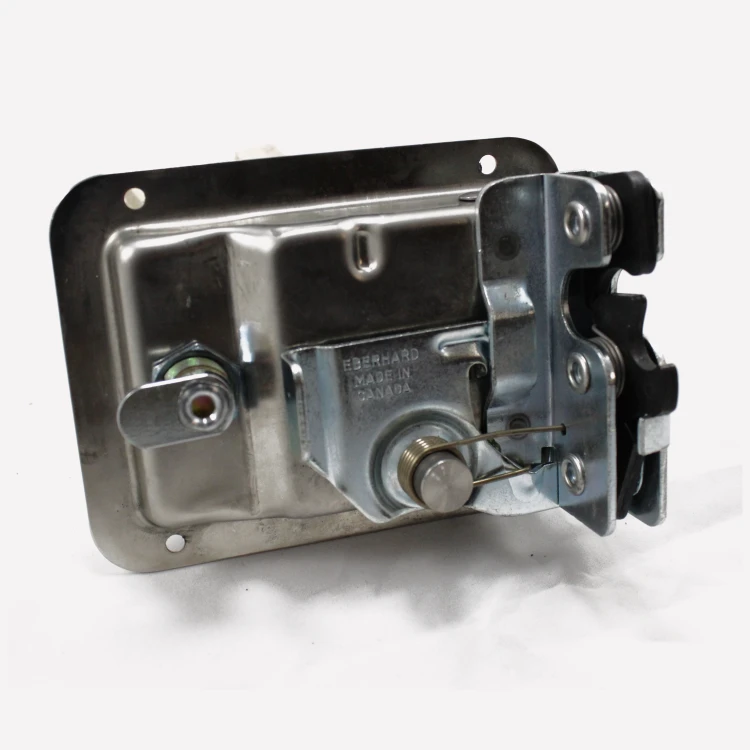

In a paddle-actuated rotary latch system, the paddle releases a remotely mounted rotary latch through direct linkage, a rod, or a cable, which separates the handle location from the latch position. This is a meaningful design option when concealed retention is required, or when the door structure doesn't allow the latch itself to sit where the operator needs to reach it. Reviewing how rotary latch systems integrate with remote release mechanisms is useful before committing to this configuration, since the rotary latch and the paddle handle need to be evaluated as a linked pair rather than as independent components.

This approach is common in vehicle compartments and machinery doors where positive striker capture matters and the latch position needs flexibility. The advantage is a more secure mechanical hold and freedom to place the rotary latch away from the paddle. The limitation is added complexity: more components introduce more tolerance stacking, the striker path becomes more critical to get right, and cable or linkage travel must be tightly controlled or the paddle will move without fully releasing the latch.

Paddle Latch Type Comparison

The core decision isn't which type is superior — it's whether the door geometry allows a flush design, whether the application needs the latch positioned away from the paddle, and whether locking is solving an access-control problem or being expected to solve a structural security problem it was never designed for.

Materials Used in Paddle Latch Systems

The visible paddle is only one part of the material system. Housing, pawl, linkage, striker, and fasteners each carry their own material logic, and the performance of the assembly over time depends on how well those choices work together — not on the finish of the handle alone.

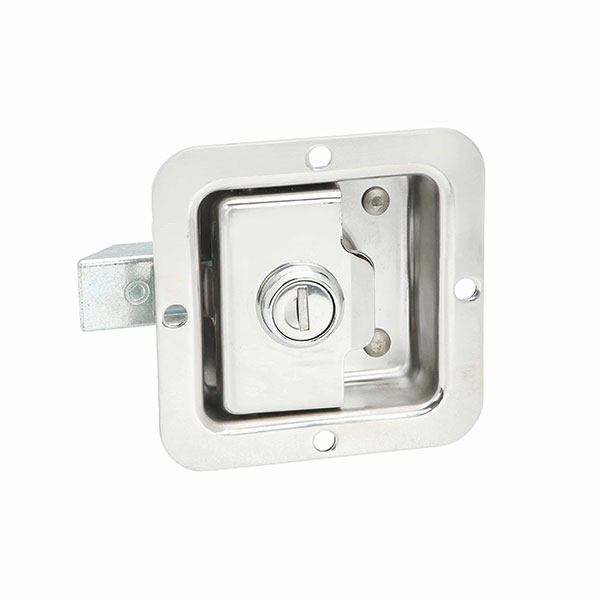

Zinc Alloy

Zinc alloy is typically selected for the paddle body because it allows complex molded shapes at a practical manufacturing cost. It suits integrated handle geometries and general industrial use where the paddle needs a specific ergonomic profile. The limitation is that surface finish durability matters more than the base material strength in most failure cases, so the exposure environment — moisture, UV, contaminants — needs to be considered alongside the alloy choice rather than assumed away.

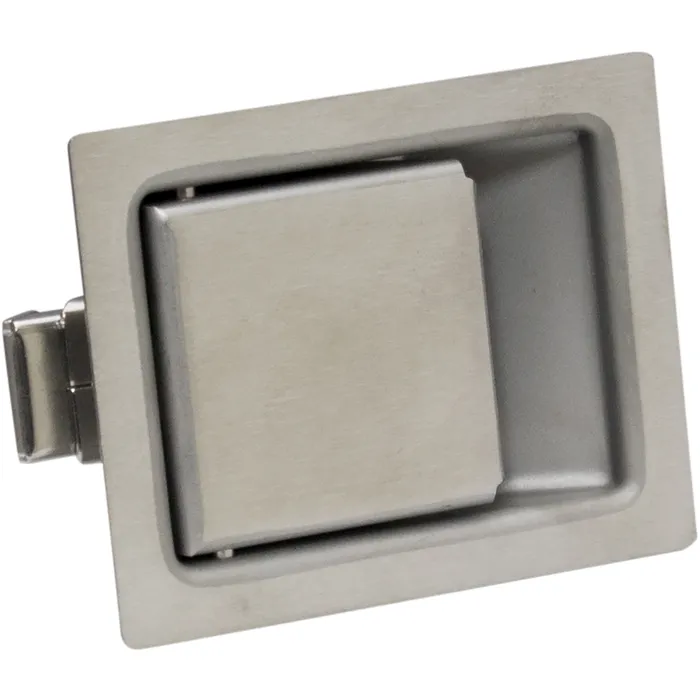

Steel

Steel is commonly used for internal pawls, linkages, strikers, and structural components where mechanical loading, not appearance, is the priority. Its performance depends heavily on coating, plating, moisture exposure, and accumulated wear at contact points.

A steel striker with a worn or damaged coating can develop friction and corrosion issues well before the structural steel itself is compromised, which is a common reason a latch feels rough long before it actually fails.

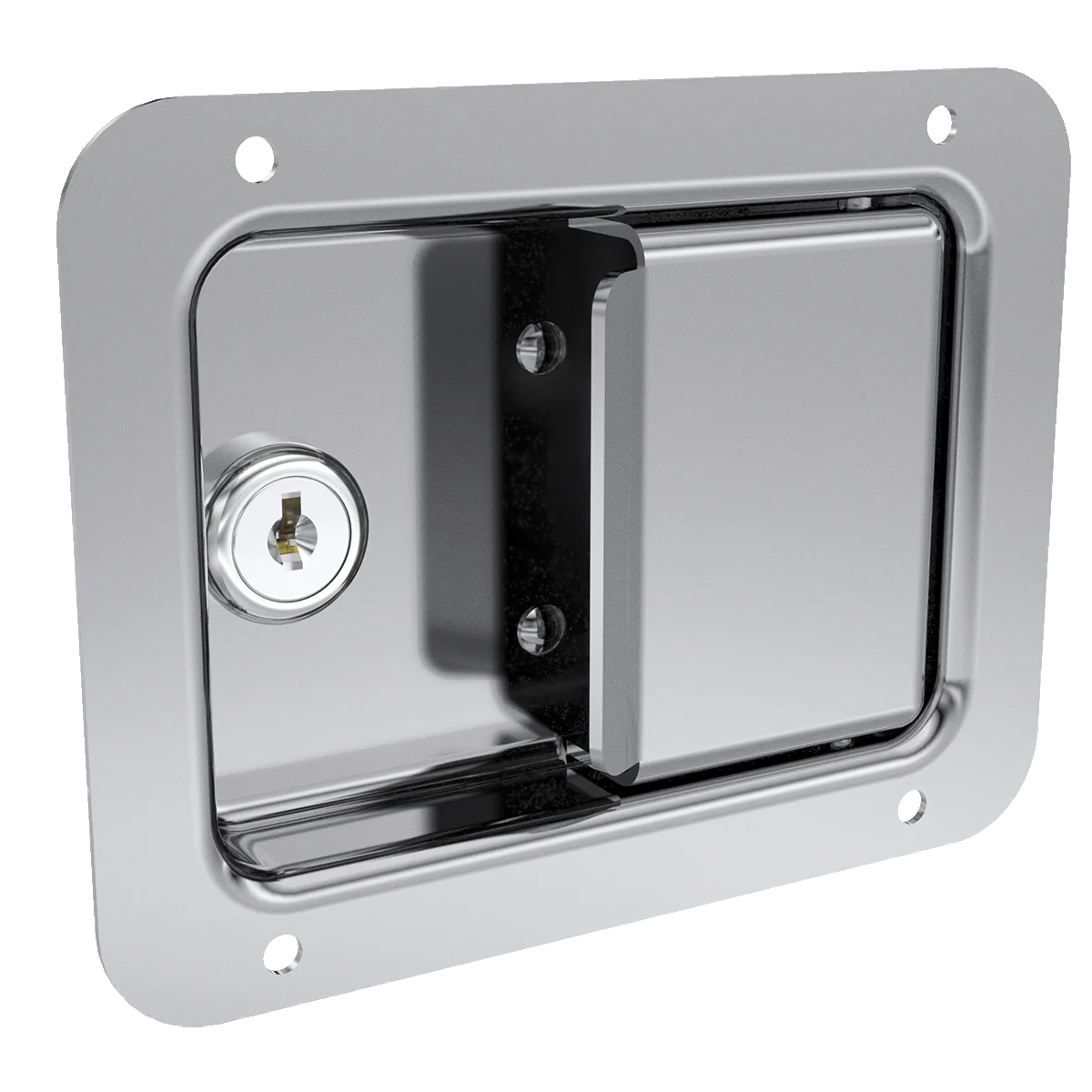

Stainless Steel

Stainless steel is considered for outdoor, moist, washdown, or corrosive environments where appropriate, but a stainless paddle does not automatically mean the complete latch system is corrosion-resistant. Hidden components — springs, linkages, fasteners, and the striker — carry the same exposure and need the same material scrutiny.

In our experience, a common oversight in application review is specifying a stainless paddle while leaving a plated-steel striker or fastener set in the same washdown environment, which shifts the corrosion risk to a less visible part of the assembly rather than eliminating it.

Material Selection Across a Paddle Latch System

Material selection should be made for the complete assembly, not the visible handle alone. A latch specified purely by paddle finish is only partially specified.

Installation Factors That Determine Paddle Latch Performance

Paddle latch performance is largely decided before the latch is even mounted — by cutout accuracy, grip, rear clearance, striker alignment, and panel rigidity working together. Getting the latch itself right and getting the installation geometry right are two separate problems, and the second one is where most field issues originate.

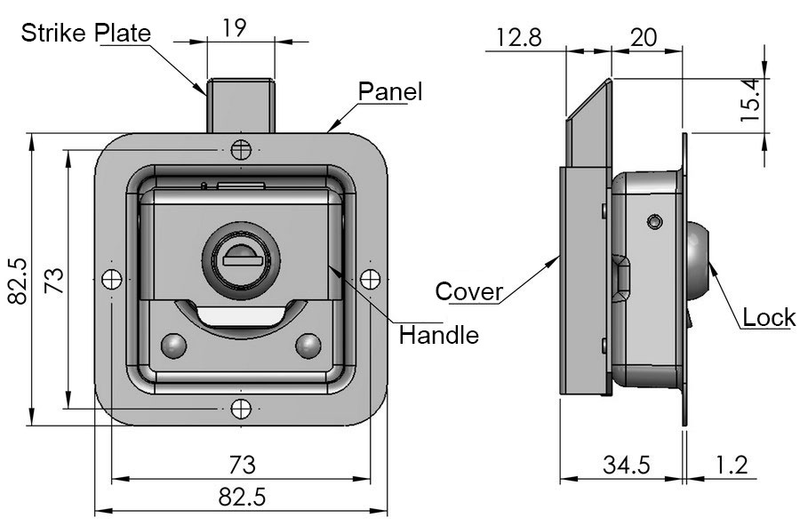

Panel Cutout

An undersized cutout can distort the housing during forced installation, while an oversized cutout leaves excessive movement and poor mounting stability.

Neither extreme is acceptable, and both can be difficult to correct after the panel has already been cut. Edge distance, panel strength, and position tolerance all need to be checked alongside the raw cutout dimension, since a technically correct size in the wrong location on a thin panel can still produce a weak, flexing mount.

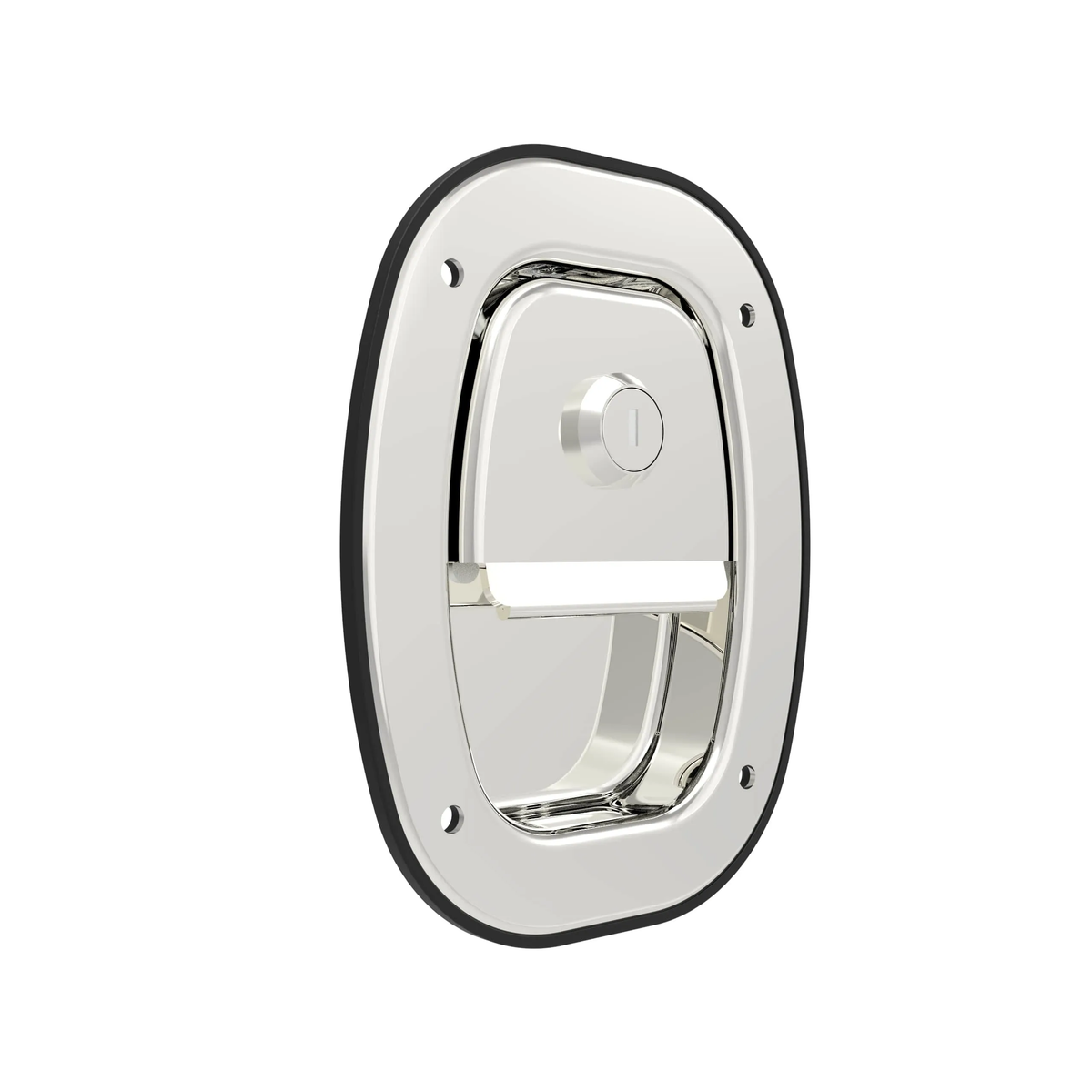

Door Thickness and Grip

Door thickness alone does not define grip. Frame offset, bracket design, gasket compression, striker geometry, and latch position all influence the effective grip range that the latch actually needs to span. Treating door thickness as a stand-in for grip is one of the more frequent specification errors we see during application review, and it tends to produce one of a few outcomes: loose closure, excessive preload, binding, or incomplete engagement — none of which point back to a defective latch.

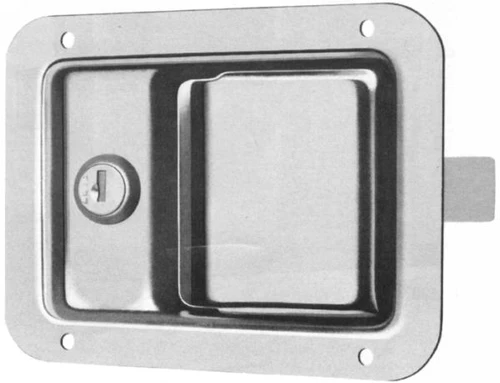

Rear Clearance

Fitting the front of a flush paddle latch into a cutout does not confirm there is enough space behind the panel for the mechanism to travel. This is the single most overlooked variable in flush installations. Housing depth, paddle movement, linkage travel, rotary latch position, cable routing, mounting brackets, and nearby internal equipment all compete for the same rear volume.

A common issue we see during drawing review is a cutout that fits perfectly on paper while the rear cavity is already occupied by wiring, framing, or another component — which only becomes apparent once the latch is physically installed.

Striker Alignment

A door closing normally does not confirm the latch is correctly engaged. Striker height, entry angle, engagement depth, and preload all need to be checked independently of whether the door appears to shut. Misalignment here doesn't always announce itself immediately — it tends to show up as hard closing, hard release, partial engagement, or accelerated wear over repeated cycles.

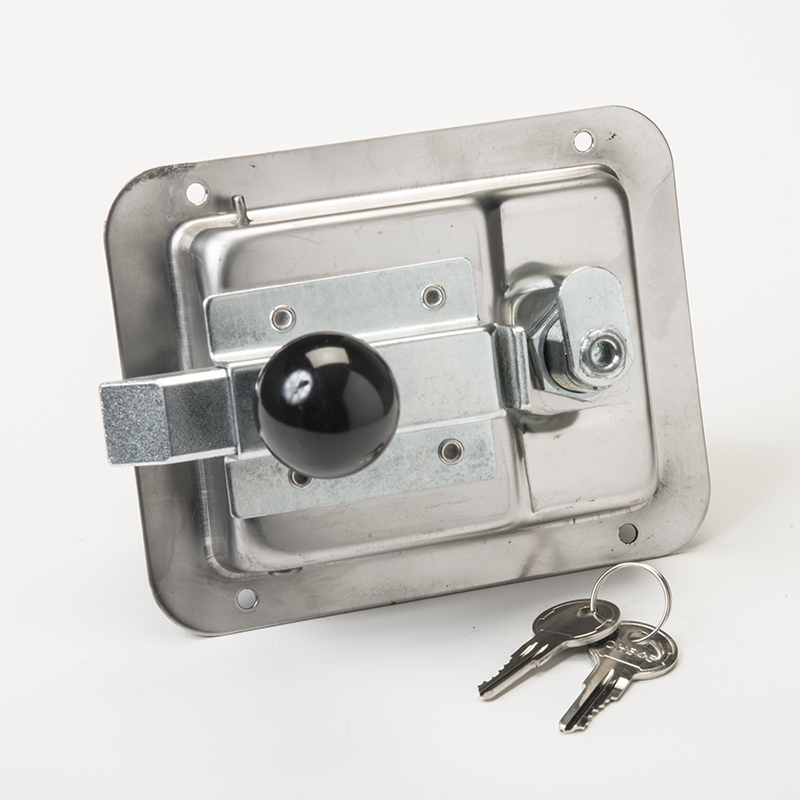

Panel Rigidity

Insufficient panel rigidity allows the panel to flex when the paddle is pulled, which changes latch geometry and increases release force over time.

A thin panel or an under-supported mounting area may hold the latch adequately at rest, but under the actual operating load of someone pulling the paddle, that flex can distort the housing and shift the relationship between paddle, striker, and mechanism.

Paddle Latch Installation Checks

The pattern across all seven variables is the same: installation performance is a geometry problem first, and a hardware problem only after the geometry is confirmed correct.

Why Does a Paddle Latch Become Hard to Open?

A paddle latch can become hard to open even when the latch itself is undamaged, because the difficulty often originates from preload, alignment drift, or mechanical travel rather than a broken mechanism. Diagnosing the actual cause matters, because replacing a latch that isn't the source of the problem doesn't fix anything.

Excessive Striker Preload

Excessive striker preload leaves the latch under load before release, which is felt as an unusually heavy paddle and, once released, a door that springs outward. The latch isn't struggling to open — it's fighting stored tension the whole time it's closed. Adjusting striker position or reducing gasket compression is usually a more effective fix than replacing hardware.

Door Sag or Misalignment

A latch that worked normally when new can become harder to operate over time as hinge movement, door sag, or frame shift gradually change the striker position. This is a slow-developing failure mode — the latch and striker were correctly aligned at installation, but the door structure around them moved. Re-surveying striker alignment rather than inspecting the latch itself is usually the right starting point when a previously smooth-operating latch degrades gradually.

Insufficient Release Travel

In cable- or rod-actuated systems, insufficient release travel allows the paddle to move fully while the latch itself does not fully release. This is a common blind spot in rotary latch integrations, because the paddle motion feels normal to the operator even though the linkage isn't transmitting enough stroke to disengage the rotary latch completely.

Corrosion or Contamination

Dirt, moisture, washdown residue, and coating wear increase internal friction, which slows return motion and can lead to binding. This is less about catastrophic failure and more about gradual degradation — a latch that used to snap back cleanly starts returning sluggishly, which is often an early indicator worth addressing before it progresses to full binding.

Incorrect Mounting Geometry

Distorted housings, rear interference, or an incorrectly positioned striker introduced during installation can make a functionally sound latch behave as if it were defective from day one. In these cases, the root cause was never in the latch — it was in how the geometry was set during mounting.

Paddle Latch Troubleshooting

The three worth expanding on are preload, release travel, and door sag, because each one produces symptoms that look like a latch defect while the actual cause sits somewhere else in the door assembly. Preload issues feel like a heavy or springy paddle even though the mechanism is fine. Release travel issues are specific to cable and rod systems, where the paddle can complete its full motion without the latch fully disengaging — a problem that's invisible from the front. Door sag is the slowest to diagnose because it develops gradually, and by the time it's noticeable, the original installation geometry has already shifted.

Matching Paddle Latches to Industrial Applications

The right paddle latch configuration depends on which factor the application prioritizes — front access, vibration resistance, dynamic door movement, or corrosion exposure. Trying to standardize on one configuration across all of these tends to under-serve at least one requirement.

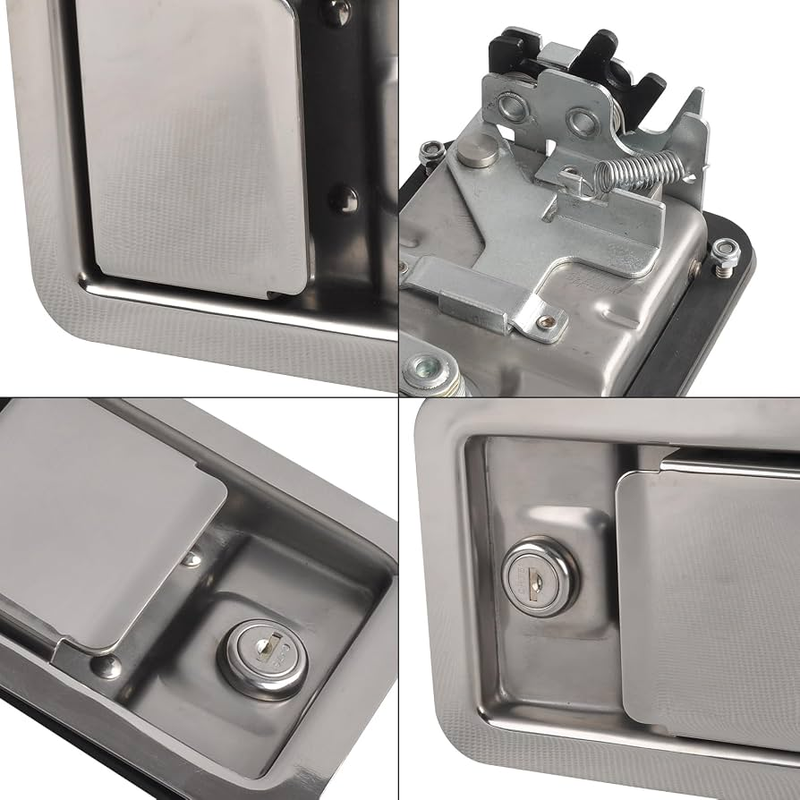

Industrial Enclosures and Cabinets

Enclosure doors typically prioritize front access, optional locking, and cutout consistency over structural load. Since these panels are usually opened for service or inspection rather than continuous cycling, grip consistency across a production run matters more than high-preload sealing capability.

Machinery and Construction Equipment

Machinery access doors need to withstand repeated service access and vibration, which places more emphasis on panel rigidity and striker stability than on appearance. A latch that performs fine on a static enclosure can loosen or misalign faster on equipment subject to continuous operating vibration if the mounting isn't reinforced accordingly.

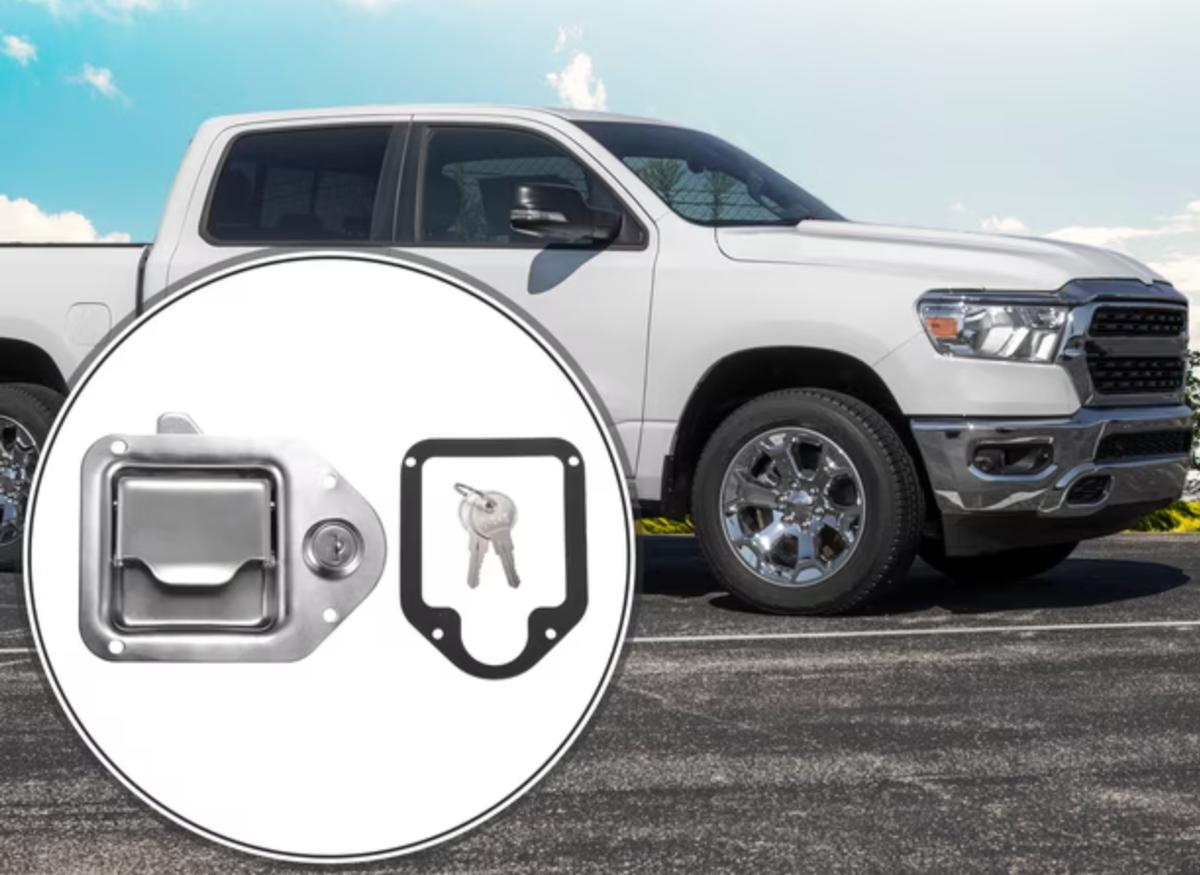

Vehicle and Transportation Compartments

Vehicle compartments favor a flush profile and often pair the paddle with a rotary latch and remote release to accommodate dynamic door movement. Because these doors flex and shift during transit in ways static enclosures don't, striker engagement depth and cable/linkage travel become more critical checks than in a stationary cabinet application.

HVAC and Outdoor Equipment

HVAC and outdoor equipment introduce moisture and contamination exposure, making cutout sealing and material system selection more critical than latch type alone. Choosing a stainless paddle without addressing the sealing at the cutout or the material of the hidden linkage components only solves part of the exposure problem.

Paddle Latch Selection by Industrial Application

If your application sits at the edge of one of these categories — a vibrating enclosure, or an outdoor cabinet with frequent front access, for example — it's worth reviewing the configuration against both rows rather than defaulting to a single one.

When a Paddle Latch Is Not the Right Mechanism

A paddle latch is not always the right mechanism. Applications requiring strong gasket compression, automatic striker capture, or multi-point locking are often better served by a different latch family entirely, and recommending a paddle latch anyway just because it's a familiar option doesn't hold up under real operating conditions. Working through comparing latch mechanism types for industrial equipment is a useful step before finalizing a mechanism choice, especially when the application requirement doesn't map cleanly onto what a paddle latch is built to do.

Mechanism Suitability Check

The point of this table isn't to steer every project toward a paddle latch. It's to identify, early, when the door structure or sealing requirement calls for a different mechanism family so the project doesn't get built around a compromise.

What Should Be Confirmed Before Production?

Before quoting, sampling, or producing a paddle latch, the door drawing, cutout dimensions, grip, rear clearance, striker position, and release method should all be confirmed together. Reviewing these in isolation tends to surface conflicts only after tooling or samples are already committed.

Pre-Production Confirmation Checklist

A latch should not be finalized based only on the front dimensions or appearance. The information that actually determines whether a configuration will work sits behind the panel, not in front of it.

Turning Door Requirements Into a Workable Paddle Latch Configuration

At ForndLock, we convert door-level information — drawings, cutout, grip, rear clearance, and striker position — into a configuration that can actually be produced and validated, rather than starting from a catalog part number and working backward. Our engineering team checks door drawings for cutout accuracy, confirms grip against the full panel and gasket stack, and reviews rear clearance against housing depth, linkage travel, and cable routing before recommending direct, cable, or rod actuation.

We recommend a material system based on the complete assembly — paddle, housing, internal mechanism, striker, and fasteners — rather than specifying the visible handle alone. Where samples are needed to validate fit or release feel before a production run, we support that validation step, and we support custom development where standard configurations don't match the door structure.

We also review whether a paddle latch is actually the right mechanism for a given door. If the structure calls for stronger gasket compression, automatic striker capture without a paddle assembly, or multi-point locking across a large panel, we'll say so and point toward a rotary latch, compression latch, quarter-turn latch, or multi-point system instead of defaulting to a paddle configuration that wasn't built for that requirement.

Conclusion

Paddle latch performance is often decided by installation geometry, not the handle alone. A well-made latch mounted against an undersized cutout, insufficient rear clearance, or a misaligned striker will behave like a poorly made one — and a modest latch installed against correct geometry will usually outperform expectations. Before finalizing a paddle latch, confirm cutout, grip, rear clearance, striker position, release method, and material system as a set, not as separate checkboxes.

If your current paddle latch is difficult to release, does not align with the striker, or does not fit the available rear space, send ForndLock your door drawing, current latch dimensions, application conditions, and quantity — [email protected]. We can review the configuration, recommend a latch type, match the striker, evaluate the installation geometry, recommend materials, support custom development, and validate samples before you commit to production.
