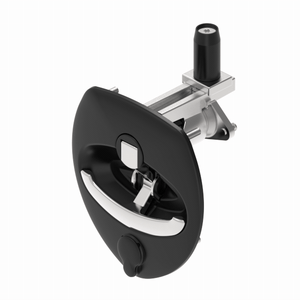

A-1550-20 Vehicle T-Handle Compression Lock
This is a Whale Tail T-Handle Compression Lock, featuring a heavy-duty automotive folding handle structure. Once closed, it utilizes a compression locking mechanism to tighten the door panel, reducing looseness, noise, and vibration during vehicle operation. The product includes a keyed lock cylinder, and the rear locking distance is adjustable, making it suitable for applications such as pickup truck lids, Ute canopies, vehicle toolboxes, trailer toolboxes, RV storage compartments, engineering vehicle equipment doors, and modified vehicle storage boxes. The Whale Tail design offers a large grip area and is aesthetically suited for vehicle-related products, available in black and silver finishes.
- Material: Die-Cast Zinc + PA66
- Protection Level: IP65
- Mounting Method: Fixed Spacing / Adjustable Spacing
- Usage scenarios: Pickup truck bed cover, pickup truck canopy, vehicle toolbox, trailer toolbox, RV storage compartment, work vehicle equipment door, modified vehicle.
Details
Detailed Specifications
| Image | Model | Installation Method | Lock Cylinder Type | Handle Specifications | Handle Rotation Angle | Lock Plate Specifications | Download |
|---|---|---|---|---|---|---|---|
| Face mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Fixed Lock Plate | |||
| Face mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Two-Point Locking Plate | |||
| Face mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Fixed 3 Point Locking Plate | |||
| Face mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Adjustable Single-Point Locking Plate | |||
| Face mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Adjustable 3 Point Latch | |||
| Flush mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Fixed Lock Plate | |||
| Flush mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Two-Point Locking Plate | |||
| Flush mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Fixed 3 Point Locking Plate | |||
| Flush mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Adjustable Single-Point Locking Plate | |||
| Flush mounting | CH751 Key locking | Handle made of die-cast zinc, brushed black (custom electroplated bright chrome available, material can be selected as SUS304) | 180 degrees (optional to turn left 90 degrees or right 90 degrees) | Adjustable 3 Point Latch |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of the materials, structure, surface treatment, lock cylinder type, and identification of rotary locks to meet project requirements.
Where is this lock mainly used?
Primarily used for pickup truck lids, Ute canopies, vehicle toolboxes, trailer toolboxes, RV storage compartments, engineering vehicle equipment doors, modified vehicle storage boxes, and service vehicle doors. It is a typical vehicle compression lock, suitable for door panels that experience vibrations while the vehicle is in motion.
Why is it called a Whale Tail Lock?
Due to the external handle's shape resembling a whale tail, the term Whale Tail Lock / Whale Tail T Handle Lock is commonly used in the overseas market, especially in the Australian Ute canopy and toolbox market. This naming convention makes it easier for customers involved in pickups, trailers, and toolboxes to find the product.
Why are T-Handles Suitable for Engineering Vehicles and Toolboxes?
The T-Handle provides a larger gripping area and greater operating force, making it suitable for outdoor, muddy, gloved, and high-frequency switching environments. Engineering vehicles and toolbox doors are typically heavier, and using a T-Handle facilitates easier operation.
Is this suitable for outdoor use?
Can be used for general outdoor vehicles and equipment enclosures, but surface treatment, protection level, salt spray testing, and sealing structure need to be confirmed. If used in long-term coastal, marine, or high salt spray environments, it is recommended to switch to the SUS316 stainless steel version.
