A-1547 Heavy-Duty Compression Latch

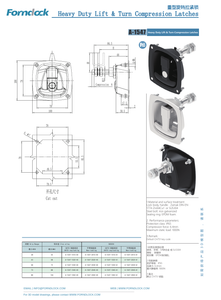

This is a T-Handle Lever Compression Lock made of die-cast zinc. It features a heavy-duty T-handle structure with adjustable locking distance at the rear, suitable for applications such as engineering vehicles, modified vehicles, pickup toolbox, trailer storage boxes, RV hatches, air compressors, generator sets, and industrial equipment maintenance doors. After closing, the compression structure pulls the door panel inward, reducing vibration, looseness, and noise. The T-handle provides a larger grip space, making it ideal for outdoor, construction machinery, and gloved operation environments. Available in black or silver finish, specific protection level, lock cylinder type, hole size, and adjustable range must be confirmed according to the drawings.
- Material: Zinc Alloy/SUS304
- Protection Rating: IP65
- Mounting Method: Adjustable Spacing
- Application Scenarios: Engineering Vehicles, Off-Road Equipment, Agricultural Machinery, Modified Vehicles, Pickup Toolbox, Trailers, RV Storage Compartments.
Detailed Specifications
| Image | Model | Spacing | Drive Method | Material | Download |
|---|---|---|---|---|---|

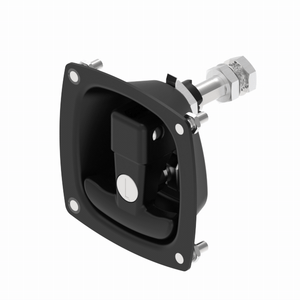

| A-1547-1010-40 | 28~43mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||

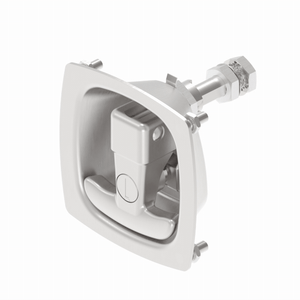

| A-1547-1010-A1 | 28~43mm | CH751 Key locking | SUS304 | ||
| A-1547-1020-40 | 43~58mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1547-1020-A1 | 43~58mm | CH751 Key locking | SUS304 | ||
| A-1547-1030-40 | 58~73mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1547-1030-A1 | 58~73mm | CH751 Key locking | SUS304 | ||
| A-1547-1040-40 | 73~88mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1547-1040-A1 | 73~88mm | CH751 Key locking | SUS304 | ||
| A-1547-1050-40 | 88~104mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1547-1050-A1 | 88~104mm | CH751 Key locking | SUS304 | ||
| A-1547-2010-40 | 28~43mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1547-2010-A1 | 28~43mm | Without lock cylinder | SUS304 | ||
| A-1547-2020-40 | 43~58mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1547-2020-A1 | 43~58mm | Without lock cylinder | SUS304 | ||
| A-1547-2030-40 | 58~73mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1547-2030-A1 | 58~73mm | Without lock cylinder | SUS304 | ||
| A-1547-2040-40 | 73~88mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1547-2040-A1 | 73~88mm | Without lock cylinder | SUS304 | ||
| A-1547-2050-40 | 88~104mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1547-2050-A1 | 88~104mm | Without lock cylinder | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
Where is this lock mainly used?
Mainly suitable for engineering vehicles, modified vehicles, pickup toolbox, trailer storage boxes, RV hatches, air compressors, generator sets, agricultural machinery, and industrial equipment access doors. It is designed for scenarios where the door panels are heavier, experience significant vibration, and require a tight closure.
Is this lock suitable for equipment with high vibration?
Suitable. The compression lock tightens the door panel after closing, reducing looseness, noise, and vibration of the door panel during the operation of air compressors, generator sets, vehicles, and construction machinery.
Why are T-Handles Suitable for Engineering Vehicles and Toolboxes?
The T-Handle provides a larger gripping area and greater operating force, making it suitable for outdoor, muddy, gloved, and high-frequency switching environments. Engineering vehicles and toolbox doors are typically heavier, and the T-Handle makes operation easier.
Is this suitable for outdoor use?
Can be used for general outdoor vehicles and equipment enclosures, but it is necessary to confirm surface treatment, protection level, salt spray testing, and sealing structure. For long-term coastal, marine, or high salt spray environments, it is recommended to switch to the SUS316 stainless steel version.
