A-1548 Heavy-duty Compression Latch
This is a T-Handle Lever Compression Lock made of die-cast zinc. It features a heavy-duty T-handle structure with an adjustable locking distance at the rear, suitable for applications such as engineering vehicles, modified vehicles, pickup toolbox, trailer storage boxes, RV compartment doors, air compressors, generator sets, and industrial equipment access doors. Once closed, the compression structure pulls the door panel inward, reducing vibration, looseness, and noise. The T-handle provides a larger gripping area, making it ideal for outdoor, construction machinery, and gloved operation environments. Available in black or silver finish, specific protection levels, lock cylinder types, hole sizes, and adjustable ranges must be confirmed according to the drawings.
- Material: Zinc Alloy/SUS304
- Protection Level: IP65
- Mounting Method: Adjustable Spacing
- Application Scenarios: Engineering Vehicles, Off-Road Equipment, Agricultural Machinery, Modified Vehicles, Pickup Toolboxes, Trailers, RV Storage Compartments.
Detailed Specifications
| Image | Model | Spacing | Drive Method | Material | Download |
|---|---|---|---|---|---|

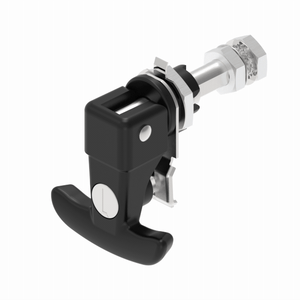

| A-1548-1010-40 | 28~43mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||

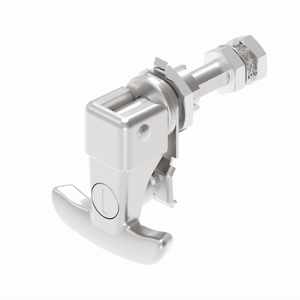

| A-1548-1010-A1 | 28~43mm | CH751 Key locking | SUS304 | ||
| A-1548-1020-40 | 43~58mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1548-1020-A1 | 43~58mm | CH751 Key locking | SUS304 | ||
| A-1548-1030-40 | 58~73mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1548-1030-A1 | 58~73mm | CH751 Key locking | SUS304 | ||
| A-1548-1040-40 | 73~88mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1548-1040-A1 | 73~88mm | CH751 Key locking | SUS304 | ||
| A-1548-1050-40 | 88~104mm | CH751 Key locking | Die-Cast Zinc Powder Coated Black | ||
| A-1548-1050-A1 | 88~104mm | CH751 Key locking | SUS304 | ||
| A-1548-2010-40 | 28~43mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1548-2010-A1 | 28~43mm | Without lock cylinder | SUS304 | ||
| A-1548-2020-40 | 43~58mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1548-2020-A1 | 43~58mm | Without lock cylinder | SUS304 | ||
| A-1548-2030-40 | 58~73mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1548-2030-A1 | 58~73mm | Without lock cylinder | SUS304 | ||
| A-1548-2040-40 | 73~88mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1548-2040-A1 | 73~88mm | Without lock cylinder | SUS304 | ||
| A-1548-2050-40 | 88~104mm | Without lock cylinder | Die-Cast Zinc Powder Coated Black | ||
| A-1548-2050-A1 | 88~104mm | Without lock cylinder | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
Where is this lock mainly used?
Mainly suitable for engineering vehicles, modified vehicles, pickup toolbox, trailer storage boxes, RV hatch doors, air compressors, generator sets, agricultural machinery, and industrial equipment access doors. It is suitable for scenarios with heavier door panels, significant vibrations, and the need for a tight closure.
Is this lock suitable for equipment with high vibrations?
Suitable. The compression lock tightens the door panel after closing, reducing looseness, noise, and shaking of the door panel during the operation of air compressors, generator sets, vehicles, and construction machinery.
Why are T-Handles Suitable for Engineering Vehicles and Toolboxes?
The T-Handle provides a larger gripping area and greater operating force, making it suitable for outdoor, muddy, gloved, and high-frequency switching environments. Engineering vehicles and toolbox doors are typically heavier, and the T-Handle facilitates easier operation.
Is this suitable for outdoor use?
Can be used for general outdoor vehicles and equipment enclosures, but it is necessary to confirm the surface treatment, protection level, salt spray test, and sealing structure. For long-term seaside, marine, or high salt spray environments, it is recommended to switch to the SUS316 stainless steel version.
