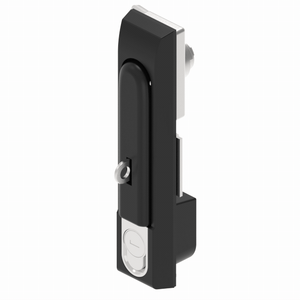

A-1234-10 Rotary Handle Lock
This is a Zinc Alloy Single Point Rotary Handle Lock, featuring a flush long panel structure. The rear is secured by a single point lock tongue to lock cabinet doors. The product can include a padlock function, facilitating additional external secondary locking or on-site access management. Additionally, the lock cylinder can be pressed to automatically pop out the handle for ease of operation. It is suitable for electrical enclosures, control cabinets, communication cabinets, industrial equipment cabinets, distribution boxes, and various types of small to medium-sized equipment doors.
- Material: Zinc Alloy
- Configuration: Optional Padlock
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosure, Outdoor Control Cabinet, Communication Cabinet, Distribution Cabinet, Industrial Equipment Cabinet, Generator Door, Energy Storage Cabinet.
Detailed Specifications

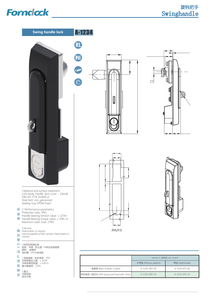

| Image | Model | Locking Method | With Hook | Surface Treatment | Download |
|---|---|---|---|---|---|
| A-1234-1001-40 | Lock Tongue Type | Without padlock | Powder Coated Matte Black | ||
| A-1234-1011-40 | Lock Tongue Type | Padlock Compatible | Powder Coated Matte Black | ||
| A-1234-1001-50 | Lock Tongue Type | Without padlock | Matte Silver Paint | ||
| A-1234-1011-50 | Lock Tongue Type | Padlock Compatible | Matte Silver Paint |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, and equipment maintenance doors. It is particularly suitable for lightweight cabinets and general industrial applications.
What is the biggest feature of this product?
This product's main feature is the lock cylinder with a push handle that pops out + single-point rotary handle locking. Compared to standard single-point handle locks, it emphasizes lightweight design, dust resistance, and convenience for daily operation.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What is the function of a padlock feature?
The padlock function can enhance external locking based on the existing locking mechanism, suitable for maintenance tagging, access management, prevention of accidental openings, and unauthorized access in industrial applications.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression amount, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
