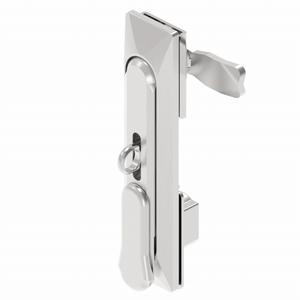

A-1220-1P Rotary Handle Lock
This is a stainless steel single-point rotary handle lock featuring a flush long panel structure. The rear is secured with a single-point lock tongue to lock the cabinet door. The product can accommodate a padlock function, facilitating additional external locking or on-site access management. It also includes a dust cover to reduce the ingress of dust and debris into the lock cylinder or operating area. Suitable for electrical enclosures, control cabinets, communication cabinets, industrial equipment cabinets, distribution boxes, and various small to medium-sized equipment doors.
- Material: SUS304
- Configuration: Optional Padlock, Optional Dust Cover
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosure, Outdoor Control Cabinet, Communication Cabinet, Distribution Cabinet, Industrial Equipment Cabinet, Generator Door, Energy Storage Cabinet.
Detailed Specifications
| Image | Model | Locking Method | Dust Cover Included | With Hook | Lock Cylinder Specifications | Surface Treatment | Download |
|---|---|---|---|---|---|---|---|
| A-1220-1P11-333-A1 | Lock Tongue Type | Dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-1P12-333-A1 | Lock Tongue Type | Dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-1P21-333-A1 | Lock Tongue Type | Without dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-1P22-333-A1 | Lock Tongue Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-3P11-333-A1 | 3 Point Rod Type | Dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-3P12-333-A1 | 3 Point Rod Type | Dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-3P21-333-A1 | 3 Point Rod Type | Without dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1220-3P22-333-A1 | 3 Point Rod Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, and equipment maintenance doors. It is particularly well-suited for lightweight cabinets and general industrial applications.
What is the biggest feature of this product?
This product's main feature is its lightweight plastic structure combined with a single-point rotary handle locking mechanism. Compared to standard single-point handle locks, it emphasizes convenience in daily operation, dust resistance, and portability.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What are the differences between plastic materials and metal materials?
The advantages of plastic material include being lighter, more cost-effective, and easier to integrate aesthetically; however, in terms of load-bearing capacity, impact resistance, and high-strength security, it typically does not match that of metal lock bodies. Therefore, it is more suitable for light to medium applications rather than for heavy-duty or high-risk environments.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating must be confirmed in conjunction with the door panel cutout, gasket compression amount, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
