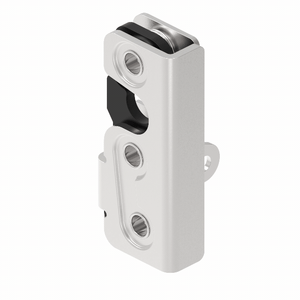

3010-21 Vertical Drive Rotary Lock

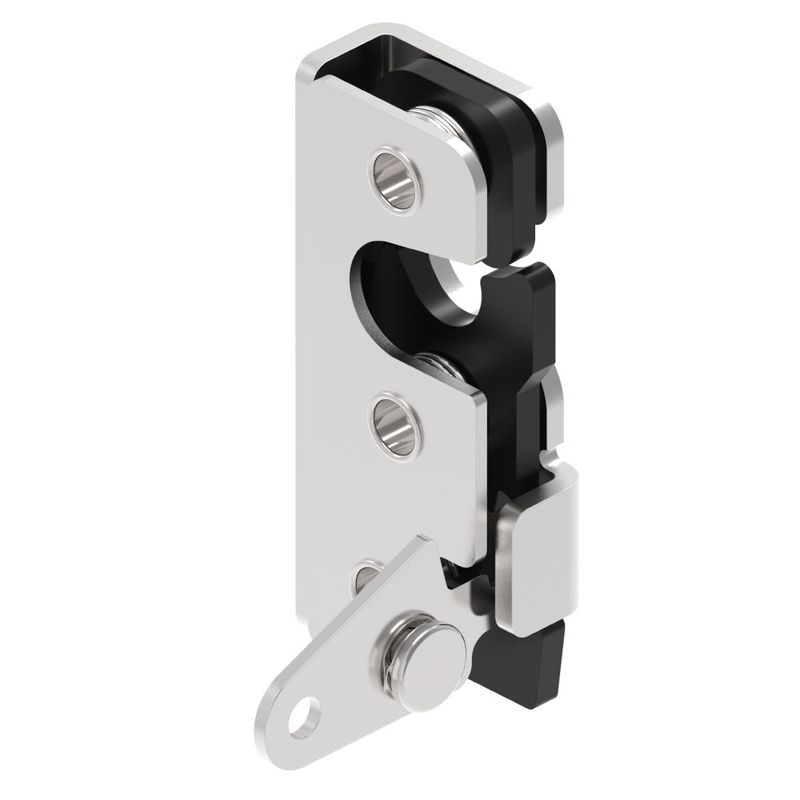

This is a heavy-duty rotary door lock designed to prevent noise, featuring a slam-close mechanism. When the door closes, the latch pin enters the lock opening, and the internal rotating locking pawl automatically grips to secure the lock. The black cushioning/guiding component inside the lock body reduces metal impact noise and latch rattling, enhancing stability in vibrating environments. The product can be released via an external lever and can be connected to handles, buttons, or linkage mechanisms, making it suitable for RV storage compartments, trailer toolboxes, engineering vehicle maintenance doors, outdoor equipment boxes, and specialized vehicle equipment compartment doors.
- Maximum Size of Strike Pin: 14.2mm
- Maximum Load: 4500N
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: RV / Trailer Storage Compartment Doors, Pickup / Truck Toolboxes, Engineering Vehicle Maintenance Doors, Special Vehicle Equipment Compartment Doors, Generator / Outdoor Equipment Boxes, Agricultural Machinery / Construction Machinery Covers.
Detailed Specifications
| Image | Model | Grade & Direction | Mounting Method | Drive Method | Material | Download |
|---|---|---|---|---|---|---|
| 3010-11-11 | Single stage (optional double stage), left | Ф7.8 through hole (optional M8x1.25 thread, 1/4 -20 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3010-21-11 | Single pole (optional double pole), right | Ф7.8 through hole (optional M8x1.25 thread, 1/4 -20 thread) | Top Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3010-11-21 | Single stage (optional double stage), left | Ф7.8 through hole (optional M8x1.25 thread, 1/4 -20 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3010-21-21 | Single pole (optional double pole), right | Ф7.8 through hole (optional M8x1.25 thread, 1/4 -20 thread) | Vertical Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3010-11-31 | Single stage (optional double stage), left | Ф7.8 through hole (optional M8x1.25 thread, 1/4 -20 thread) | Two-Point Drive | Galvanized Steel (Optional Stainless Steel) | ||
| 3010-21-32 | Single pole (optional double pole), right | Ф7.8 through hole (optional M8x1.25 thread, 1/4 -20 thread) | Two-Point Drive | Galvanized Steel (Optional Stainless Steel) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restrictions.
What is the standard delivery time for rotary locks?
Typically 15 to 30 days, depending on customization requirements and order quantity.
What materials are available for rotary locks?
Common materials include zinc alloy, SS304, SS316 stainless steel, and PA66+GF plastic, which can be selected based on corrosion resistance and strength requirements.
Does the rotary lock support waterproof and dustproof features?
Supports IP65 or IP67 sealing ratings, ensuring reliable locking in long-term outdoor or industrial environments.
Can rotary locks be used in high humidity or marine environments?
Yes. It is recommended to use SS316 material, with options for corrosion treatment and sealed mounting.
What types of doors or enclosures is it suitable for?
The rotary lock is suitable for electrical enclosures, communication cabinets, rail transit equipment, engineering vehicle hatches, and industrial enclosures.
