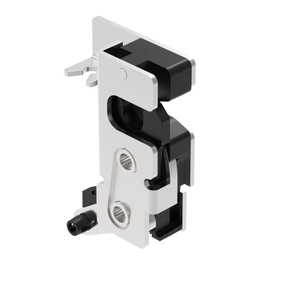

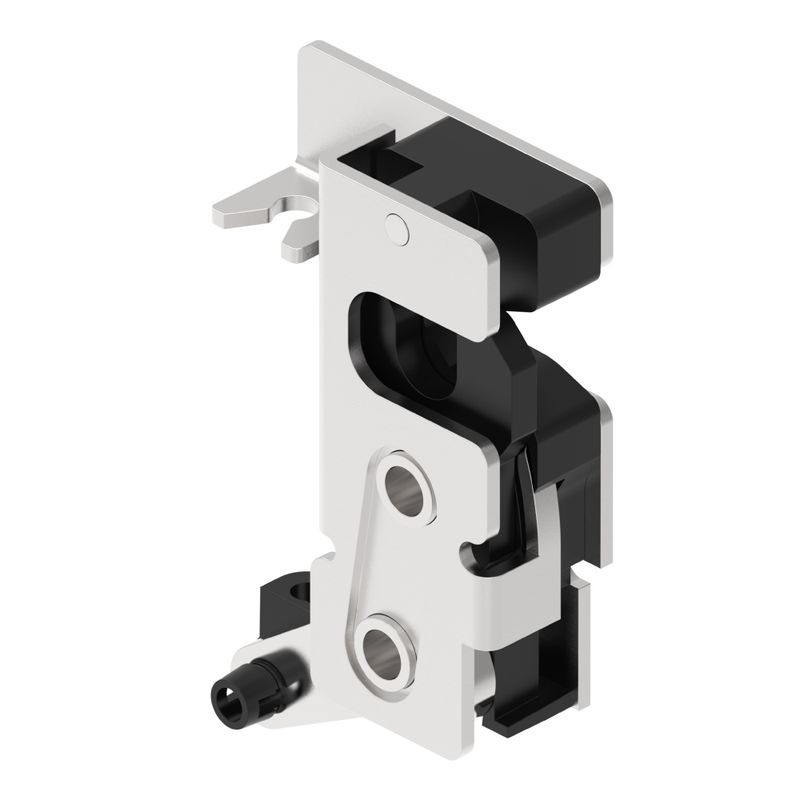

3006-20 Shock Absorbing & Cable Support, Bottom Drive Rotary Lock
This is a compact single-rotor rotary door lock with a cable release interface. It features a slam-close mechanism, where the latch pin automatically engages the locking jaws upon closing to secure the lock. The bottom interface can connect to a wire cable, external button, handle, or actuator for remote operation. It is suitable for RV storage compartments, trailer toolboxes, engineering vehicle maintenance doors, outdoor equipment boxes, generator doors, and various light to medium-duty equipment door panels.
- Maximum Size of Piston: 9.5mm
- Maximum Load: 3600N
- Compliance Standard: REACH No.1907/2006
- Usage scenarios: RV / trailer storage compartment doors, pickup / truck toolboxes, engineering vehicle maintenance doors, agricultural / construction machinery covers, generator sets / outdoor equipment boxes, special vehicle small hatches.
Detailed Specifications
| Image | Model | Grade & Direction | Mounting Method | Drive Method | Style | Material | Download |
|---|---|---|---|---|---|---|---|
| 3006-11-11 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Standard Cable Bracket | Galvanized Steel (Optional Stainless Steel) | ||
| 3006-11-12 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Shock absorber with cable bracket | Galvanized Steel (Optional Stainless Steel) | ||
| 3006-21-11 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Standard Cable Bracket | Galvanized Steel (Optional Stainless Steel) | ||
| 3006-21-12 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Shock absorber with cable bracket | Galvanized Steel (Optional Stainless Steel) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structure, surface treatment, lock cylinder type, and identification for rotary locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided based on actual demand, with no minimum order quantity restriction.
What is the standard delivery time for rotary locks?
Typically 15 to 30 days, depending on customization requirements and order quantity.
What materials are available for rotary locks?
Common materials include zinc alloy, SS304, SS316 stainless steel, and PA66+GF plastic, which can be selected based on corrosion resistance and strength requirements.
Does the rotary lock support waterproof and dustproof features?
Support. Available with IP65 or IP67 sealing ratings, ensuring reliable locking in long-term outdoor or industrial environments.
Can rotary locks be used in high humidity or marine environments?
Yes. It is recommended to use SS316 material, with options for corrosion resistance treatment and sealed mounting method.
What types of doors or enclosures are suitable?
The rotary lock is suitable for electrical enclosures, communication cabinets, rail transit equipment, engineering vehicle hatches, and industrial enclosures.
