Rotary Latch Systems/Rotary Latches

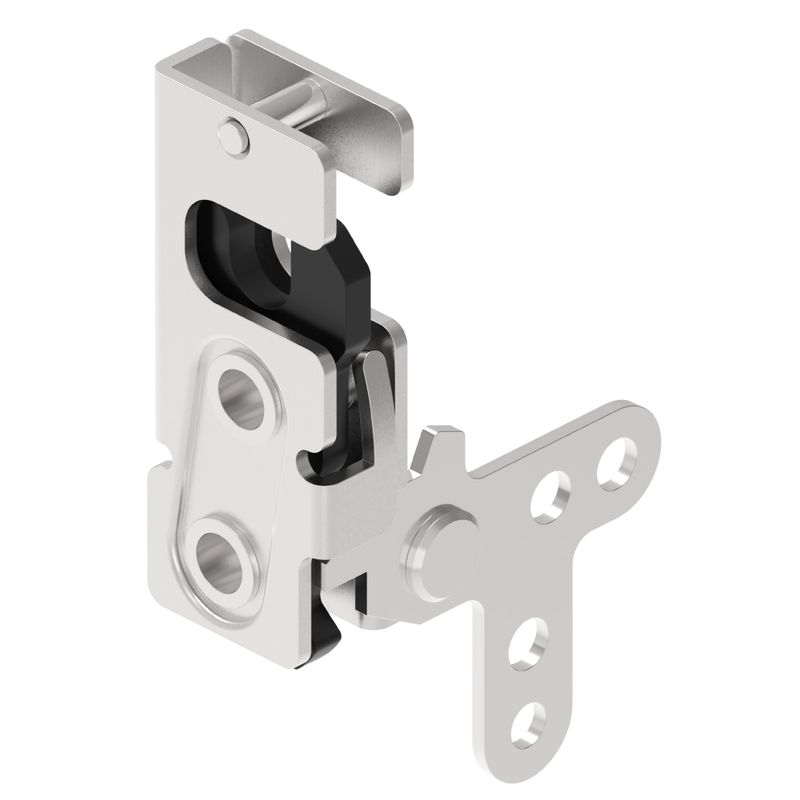

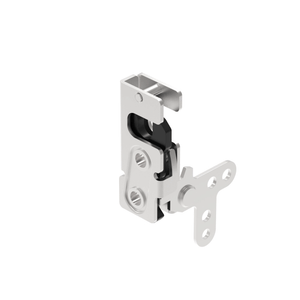

3005-61 Two-Point Drive Rotary Lock
3005-61 Two-Point Drive Rotary Lock Cover 3005-11-61 Left-Hand and 3005-21-61 Right-Hand Standard Models, featuring a two-point drive structure, available in single-stage or double-stage options. Supports Ф7.2 through hole, M6x1, or 1/4-20 threaded installation. Material options include galvanized steel or stainless steel, suitable for industrial cabinets, equipment doors, and vehicle hatches requiring two-point interlocking locking solutions.
- Maximum Size of Strike Pin: 9.5mm
- Maximum Load: 3600N
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: RV / Trailer Storage Compartment Door, Engineering Vehicle Maintenance Door, Pickup / Truck Toolbox, Generator / Outdoor Equipment Box, Agricultural Machinery / Construction Machinery Cover, Special Vehicle Small Hatch.
Detailed Specifications
| Image | Model | Level & Direction | Mounting Method | Drive Method | Style | Material | Download |
|---|---|---|---|---|---|---|---|
| 3005-11-11 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-12 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-11 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-12 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Handle Type Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-21 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-22 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-21 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-22 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Bottom Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-31 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-32 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-31 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-32 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Top Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-41 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-42 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-41 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-42 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Vertical Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-51 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-52 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-51 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-52 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Linear Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-61 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-62 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-61 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-62 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Two-Point Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-71 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-72 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-71 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-72 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Direct Drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-81 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-82 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-81 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-82 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Dual trigger, vertical/bottom drive | with damping | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-11-91 | Single stage (optional double stage), left | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Double trigger, vertical/top | Standard | Galvanized Steel (Optional Stainless Steel) | ||
| 3005-21-91 | Single pole (optional double pole), right | F7.2 through hole (optional M6x1 thread, 1/4-20 thread) | Double trigger, vertical/top | Standard | Galvanized Steel (Optional Stainless Steel) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary lock OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restriction.
What is the standard delivery time for rotary locks?
Typically 15 to 30 days, depending on customization requirements and order quantity.
What materials are available for rotary locks?
Common materials include die-cast zinc, SUS304, SUS316 stainless steel, and PA66+GF plastic, which can be selected based on corrosion resistance and strength requirements.
Does the rotary lock support waterproof and dustproof features?
Support. Available with IP65 or IP67 sealing ratings, ensuring reliable locking in long-term outdoor or industrial environments.
Can rotary locks be used in high humidity or marine environments?
Yes. It is recommended to use SS316 material, with options for corrosion treatment and sealed mounting.
What types of doors or enclosures are suitable?
The rotary lock can be used for electrical enclosures, communication cabinets, rail transit equipment, engineering vehicle hatches, and industrial enclosures.
