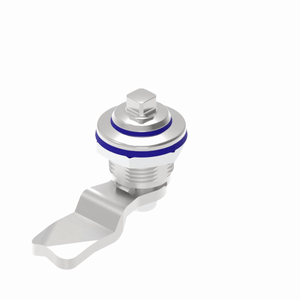

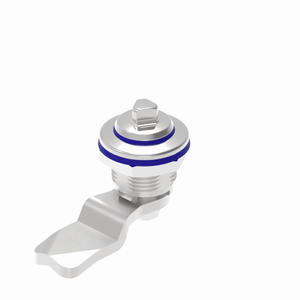

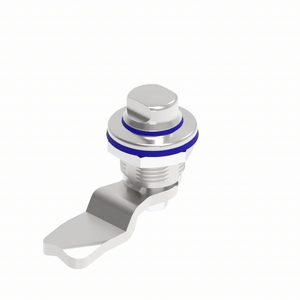

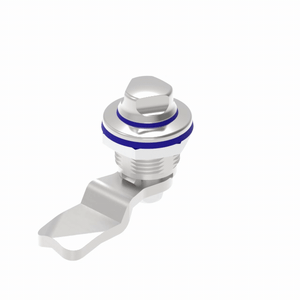

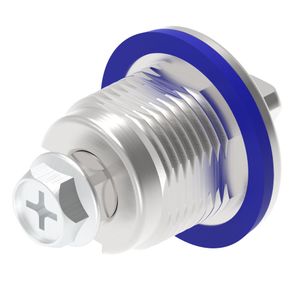

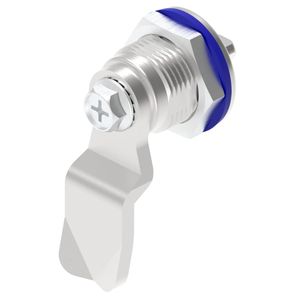

D1-1446 Sanitary Lock
This is a hygienic right-angle rotary lock specifically designed for food, beverage, dairy, and pharmaceutical equipment. The lock body is made of SUS316 stainless steel with a mirror-polished surface and is equipped with a blue food-grade TPU sealing ring. The smooth, easy-to-clean hygienic structure minimizes dirt and cleaning fluid residue, making it suitable for frequent cleaning and high hygiene requirement environments. The product features a 90° right-angle rotation mechanism to operate the lock tongue, offering a compact structure, quick operation, and convenient maintenance. The IP69K protection design meets the demands of high-pressure and high-temperature washing environments, making it suitable for hygienic equipment such as food machinery, electrical control cabinets, filling equipment, dairy equipment, meat processing equipment, and pharmaceutical machinery.
- Hole Size: M22*20mm
- Material: Main body SUS316L, Seal: Blue Silicone
- Protection Level: IP69K
- Compliance Standards: Adhere to sanitary design guidelines such as 3-A, EHEDG, EN 1672-2, and ISO 14159. Use food-safe seals that meet FDA standards.
- Application Scenarios: Food processing machinery, stainless steel sanitary equipment, dairy production lines, beer and beverage production lines, meat processing equipment, seafood processing equipment, central kitchen equipment, baking machinery, chocolate and candy equipment, filling equipment, packaging equipment, food conveying equipment, cleaning machines, pharmaceutical machinery, bioengineering equipment, cleanroom equipment, and sanitary electrical enclosures and control cabinets that require high-pressure washing.
Detailed Specifications
| Image | Model | 锁芯规格 | 材质 | Download |
|---|---|---|---|---|
| D1-1446-038-LH-A2 | 三角8mm | SUS316L | ||
| D1-1446-048-LH-A2 | 四方8mm | SUS316L | ||
| D1-1446-T15-LH-A2 | 三角15mm | SUS316L | ||
| D1-1446-W13-LH-A2 | W13 | SUS316L | ||
| D1-1446-100-LH-A2 | 手柄型 | SUS316L |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
Does ForndLock offer custom OEM/ODM safety corner locks?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for safety right angle locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restrictions.
Why is this lock suitable for food machinery?
The lock body is made of SUS316 stainless steel, featuring a smooth shape and a hygienic sealing structure that minimizes gaps where dirt, liquids, and bacteria can accumulate, making it suitable for environments in food machinery that require frequent cleaning.
What material is the blue sealing ring made of?
Made of blue TPU sealing material commonly used in food equipment. The blue design also facilitates quick identification of seals in food production environments. If direct food contact is involved, corresponding compliance documents for food contact materials can be provided as per project requirements.
What does IP69K represent?
The P69K is primarily designed for high-pressure and high-temperature spray environments, suitable for equipment frequently washed with high-pressure water guns in food factories. Actual supply should be based on the corresponding IP test report and installation conditions.
