D1-1443 Sanitary Lock
This is a hygienic right-angle rotary lock specifically designed for food, beverage, dairy, and pharmaceutical equipment. The lock body is made of SUS316 stainless steel with a mirror-polished surface and is equipped with a blue food-grade TPU sealing ring. The smooth, easy-to-clean hygienic design minimizes residue from contaminants and cleaning agents, making it suitable for environments requiring frequent cleaning and high hygiene standards. The product features a 90° right-angle rotation mechanism to operate the lock tongue, offering a compact structure, quick operation, and easy maintenance. The IP69K protection design meets the demands of high-pressure and high-temperature washing environments, making it applicable for hygienic equipment such as food machinery, electrical control cabinets, filling equipment, dairy equipment, meat processing equipment, and pharmaceutical machinery.
- Hole Size: M22*20mm
- Material: Main body SUS316L, Seal ring TPU
- Protection Level: IP69K
- Compliance Standards: Adhere to sanitary design guidelines such as 3-A, EHEDG, EN 1672-2, and ISO 14159. Use food-safe seals that meet FDA standards.
- Application scenarios: Food processing machinery, stainless steel sanitary equipment, dairy production lines, beer and beverage production lines, meat processing equipment, seafood processing equipment, central kitchen equipment, baking machinery, chocolate and candy equipment, filling equipment, packaging equipment, food conveying equipment, washing machines, pharmaceutical machinery, bioengineering equipment, cleanroom equipment, and sanitary electrical enclosures and control cabinets that require high-pressure washing.
Detailed Specifications
| Image | Model | Lock Cylinder Specification | Lock Plate Specification | Material | Download |
|---|---|---|---|---|---|

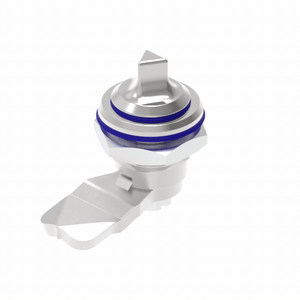

| D1-1443-038-LH-A2 | Triangle 8mm | LH can be customized as needed | SUS316 | ||

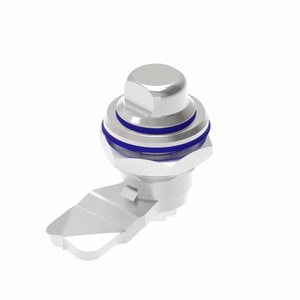

| D1-1443-W13-LH-A2 | W13 Type | LH can be customized as needed | SUS316 | ||

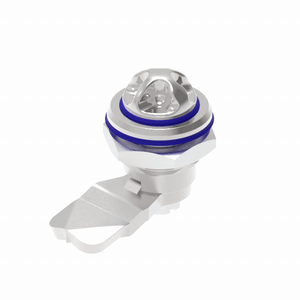

| D1-1443-X46-LH-A2 | X46 Type | LH can be customized as needed | SUS316 | ||

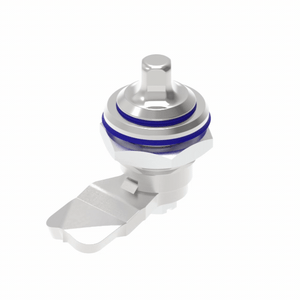

| D1-1443-048-LH-A2 | Square 8mm | LH can be customized as needed | SUS316 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer OEM/ODM customization for safety right angle locks?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for safety right angle locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restriction.
Why is this lock suitable for food machinery?
The lock body is made of SUS316 stainless steel, featuring a smooth design and a hygienic sealing structure that minimizes gaps where dirt, liquids, and bacteria can accumulate, making it suitable for environments with frequent cleaning in food machinery.
What material is the blue sealing ring made of?
Made of blue TPU sealing material commonly used in food equipment. The blue design also facilitates quick identification of seals in food production environments. If direct food contact is involved, relevant food contact material compliance documents can be provided according to project requirements.
What does IP69K represent?
The P69K is primarily designed for high-pressure and high-temperature spray environments, suitable for equipment frequently washed with high-pressure water guns in food factories. Actual supply should be based on the corresponding IP test report and installation conditions.
