Surface Mounted Hinges: Types, Applications and Manufacturer Selection Guide

Surface mounted hinges remain a common choice for industrial equipment doors because door weight, frequent opening, misalignment and outdoor exposure create long-term reliability challenges that simple hardware must address.

Industrial doors rarely fail because of a single defect. Failure develops gradually, through repeated opening cycles, panel flex, loose fasteners and small misalignments that accumulate over time. A control cabinet door opened dozens of times per shift places different demands on hardware than a sealed enclosure opened only for scheduled service.

Surface mounted hinges are widely used across equipment doors, electrical cabinets and machinery enclosures because they offer:

· Simple installation without recessed cutouts

· Easy replacement when a hinge wears or a door is modified

· Flexible mounting positions on flat panels

· Reliable door movement across a wide range of panel thicknesses

At ForndLock, we evaluate surface mounted hinges by considering door weight, mounting structure, operating environment and installation requirements rather than selecting a hinge based only on size. Hinge performance is never determined by the hinge alone. Door structure, mounting method, load distribution and installation accuracy all influence how a hinge behaves once it is in service. This guide works through hinge structure, hinge types, application requirements, selection criteria and manufacturer evaluation in that order.

ForndLock Hinges Product Range

What Is a Surface Mounted Hinge?

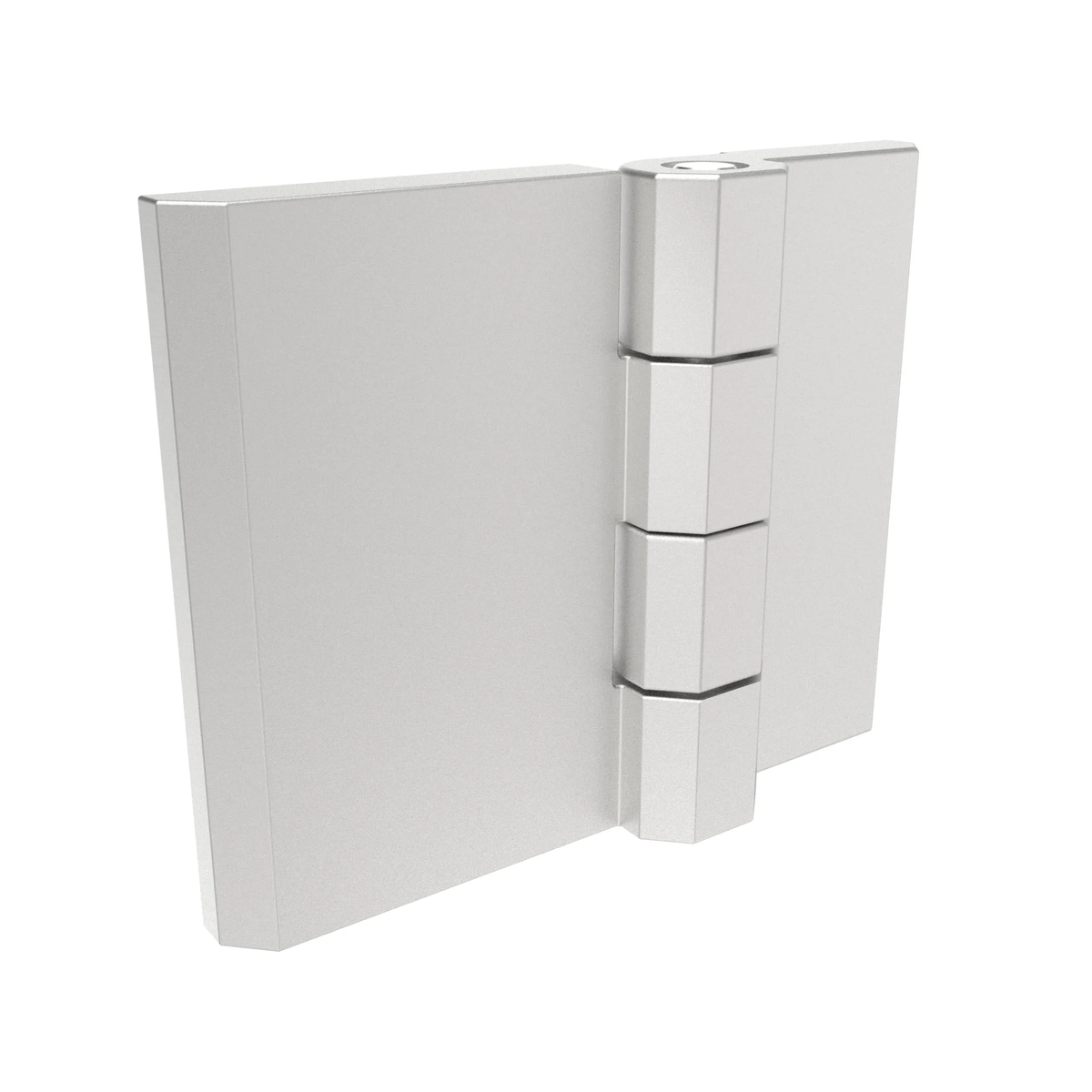

A surface mounted hinge is a hinge assembly installed on the external surface of a door leaf and its frame, transferring load through two leaves and a pin rather than through a recessed or hidden joint.

A typical surface mounted hinge consists of:

· Door leaf, fixed to the door panel

· Frame leaf, fixed to the enclosure frame or body

· Hinge pin, forming the rotation axis

· Knuckle, connecting both leaves around the pin

· Mounting holes, for screws, bolts or weld preparation

· Bushings or bearings, reducing wear at the pin interface

The two leaves transfer load from the door into the frame. The pin provides a fixed rotation axis, and the door swings around that axis as it opens and closes. This arrangement is mechanically simple, which is one reason surface mounted hinges are used across so many industrial equipment doors.

Load capacity is not decided by the hinge alone. Door weight, the number of hinges installed, hinge position along the door edge and the strength of the mounting structure all affect how much load the assembly can actually carry in service. A correctly rated hinge mounted on a weak panel section will still underperform.

How Does a Surface Mounted Hinge Work?

A surface mounted hinge works by allowing the door leaf to rotate around a fixed pin axis while the hinge leaves carry the door weight into the mounting frame.

What Is the Hinge Rotation Mechanism?

The hinge rotation mechanism relies on the knuckle and pin forming a fixed axis around which the door leaf swings.

The door leaf and frame leaf are joined at the knuckle, where the pin passes through both components. As the door opens, the door leaf rotates around the pin while the frame leaf remains fixed to the enclosure. Bushings or bearings at the knuckle reduce friction and limit wear at this contact point over repeated cycles.

How Does Load Transfer Occur?

Load transfer occurs as door weight moves from the door leaf through the hinge leaf and pin into the frame leaf and mounting structure.

The path follows a consistent sequence: Door → Hinge Leaf → Pin → Frame. Each stage in this path needs to be sized correctly. A hinge with an adequate pin diameter but a thin mounting leaf, or a strong leaf fastened into a weak panel, still creates a weak point somewhere along the load path.

How Does Misalignment Affect Door Movement?

Installation misalignment can cause binding, uneven loading and progressive door sagging even when the hinge itself is correctly rated.

If hinges are not installed on the same vertical line, the door leaf is forced into a slightly twisted position every time it closes. This produces binding during operation, uneven load distribution between hinges, and gradual sagging as the panel and fasteners absorb repeated stress. Alignment errors are one of the most frequent causes of hinge-related service calls we discuss with engineering teams.

How Do Surface Mounted Hinges Differ From Concealed Hinges?

Surface mounted hinges differ from concealed hinges mainly in installation method, accessibility, load handling and maintenance convenience.

For industrial equipment doors, surface mounted hinges are generally preferred because they are easier to install on flat metal panels, remain accessible for inspection during maintenance, suit the load requirements of heavier industrial doors, and can be replaced without cutting into the panel structure. Concealed hinges remain relevant where a flush exterior is required, but that priority is less common on functional equipment enclosures.

What Are the Different Types of Surface Mounted Hinges?

Surface mounted hinges are available in several structural variations, including standard, heavy duty, lift-off, weld-on, screw mounted and adjustable designs, each suited to different load and access requirements.

What Are Standard Surface Mounted Hinges Used For?

Standard surface mounted hinges cover general industrial applications where door weight and exposure are moderate. They are common on equipment doors, control cabinets and general enclosure applications that do not require heavy duty leaf thickness or specialized adjustment.

What Are Heavy Duty Surface Mounted Hinges?

Heavy duty surface mounted hinges are intended for heavy doors, large panels and machinery enclosures where the standard hinge geometry is insufficient. When we evaluate a heavy duty application, our engineering team reviews pin diameter, leaf thickness and mounting strength together, since a larger pin has limited benefit if the leaf or the underlying panel cannot support the resulting load.

What Are Lift-Off Surface Mounted Hinges?

Lift-off surface mounted hinges allow the door to be removed by lifting it off the pin, without unscrewing the hinge itself. This design supports removable doors and simplifies maintenance access, particularly on enclosures where the entire door panel needs to be taken off during service or installation work.

What Are Weld-On Surface Mounted Hinges?

Weld-on surface mounted hinges provide a strong structural connection between the hinge and the panel, since the hinge leaf becomes part of the welded frame structure. The tradeoff is reduced flexibility: replacement is more difficult once installed, and the welding process itself can influence panel flatness if not controlled carefully.

What Are Screw Mounted Surface Hinges?

Screw mounted surface hinges are installed with fasteners rather than welding, which allows easier installation and easier replacement. This makes them a practical choice where doors may need adjustment, repositioning or hinge replacement over the service life of the equipment.

What Are Adjustable Surface Mounted Hinges?

Adjustable surface mounted hinges include mounting features that allow fine alignment after installation. They are useful on precision equipment and on applications where door alignment requirements are tight, since they allow correction without redrilling the mounting holes.

Where Are Surface Mounted Hinges Used in Industrial Applications?

Surface mounted hinges are used across electrical cabinets, control panels, machinery enclosures, outdoor equipment cabinets, telecom and energy cabinets, and hygienic food equipment.

Why Are They Used on Electrical Cabinets?

Electrical cabinet doors require dependable maintenance access, consistent door alignment for proper sealing, and a compact hinge structure that does not interfere with adjacent panels. Recommended hinge consideration: a screw mounted or lift-off design that supports repeated access without disturbing the cabinet seal.

Why Are They Used on Control Panels?

Control panels are opened frequently during operation and adjustment. The requirement here is reliability across a high number of cycles. Recommended hinge consideration: standard or adjustable surface mounted hinges with bushings that resist wear under frequent use.

Why Are They Used on Industrial Machinery Enclosures?

Machinery enclosure doors are often heavy and exposed to vibration from nearby equipment. The requirement is structural stability under load and vibration. Recommended hinge consideration: heavy duty surface mounted hinges with adequate pin diameter and a reinforced mounting area.

Why Are They Used on Outdoor Equipment Cabinets?

Outdoor cabinets face ongoing corrosion risk and direct weather exposure. The requirement is long-term resistance to moisture and environmental attack. Recommended hinge consideration: stainless steel surface mounted hinges paired with a suitable surface treatment.

Why Are They Used on Telecom and Energy Cabinets?

Telecom and energy cabinets are typically installed for long-term, low-maintenance operation in varied environments. The requirement is environmental protection combined with dependable long-term function. Recommended hinge consideration: corrosion-resistant materials matched to the installation environment, whether coastal, industrial or urban.

Why Are They Used on Food and Hygienic Equipment?

Food and hygienic equipment enclosures operate in cleaning environments that involve washdown and chemical exposure. The requirement is a hinge material and finish that tolerates repeated cleaning without degrading. Recommended hinge consideration: stainless steel surface mounted hinges suited to hygienic environments. Material recommendations vary by cleaning chemistry and frequency, so this is a detail worth discussing directly with an engineering team before finalizing a specification.

How Do You Select the Right Surface Mounted Hinge?

Selecting the right surface mounted hinge requires evaluating door weight and load distribution, hinge quantity and position, material, mounting method, opening angle and environmental exposure together, not in isolation.

How Do You Evaluate Door Weight and Load Distribution?

Door weight alone is not sufficient information. Door size, the weight of accessories mounted on the door such as displays, latches or gauges, and the resulting center of gravity all affect how load is actually distributed across the hinge line. A door of a given weight with off-center accessories behaves differently than the same door with evenly distributed mass. Hinge selection should never be based on total weight alone.

How Do You Determine Hinge Quantity and Position?

Two hinges may be sufficient for lighter, smaller doors. Larger or heavier doors typically require multiple hinges with calculated spacing to distribute load evenly along the door edge. Incorrect spacing, or too few hinges for the panel size, is a direct contributor to door sagging and uneven load on the hinges that remain in service the longest.

How Do You Select Hinge Material?

Hinge material selection depends on the operating environment, load level and required surface treatment rather than cost alone.

Is Stainless Steel Suitable?

Stainless steel surface mounted hinges are generally suited to outdoor installations and corrosive environments, including coastal, chemical or washdown conditions where long-term resistance to moisture and chemical exposure is a priority.

Is Steel Suitable?

Steel hinges are commonly selected for heavy-duty applications where load capacity and structural strength are the primary concern, particularly when paired with an appropriate surface treatment for the operating environment.

Is Zinc Alloy Suitable?

Zinc alloy hinges are typically applied to general industrial applications with moderate load and standard indoor environmental conditions, where cost efficiency and adequate performance are balanced.

Material selection ultimately depends on the combination of environment, load and the surface treatment applied, rather than any single factor considered alone.

How Do You Choose a Mounting Method?

Screw mounted hinges offer easier installation and easier replacement, but rely on fastener quality and panel thickness for long-term security. Weld-on hinges provide a stronger structural connection but limit future adjustment and replacement. Bolt mounted hinges sit between the two, offering strong mechanical connection with the ability to remove and reinstall the hinge without welding equipment. Each method involves a tradeoff between installation strength and future flexibility.

How Do You Consider Opening Angle Requirements?

Required clearance, the position of adjacent equipment, and the intended range of door movement all affect which hinge geometry is appropriate. A hinge that performs well in isolation may still create interference if the door cannot reach its required open position without contacting nearby structure.

How Do Environmental Conditions Affect Hinge Choice?

Moisture, dust, salt exposure, chemical contact and temperature range each influence material choice, surface treatment and bushing selection. An enclosure hinge specified for a dry indoor cabinet is rarely the correct choice for an outdoor cabinet in a coastal or industrial atmosphere.

Neutral Salt Spray Test for ForndLock Swing Hinges

How Do You Prevent Door Sagging?

Door sagging is prevented by correct hinge position, panel reinforcement, adequate door stiffness and even load distribution across all hinges.

Hinge position along the door edge, reinforcement behind mounting points, sufficient door panel stiffness, and even load distribution across the full set of hinges all work together to prevent sagging over time. Addressing only one of these factors, such as upgrading hinge size without reinforcing a thin panel, typically fails to resolve the underlying issue.

What Are Common Surface Mounted Hinge Selection Mistakes?

Common selection mistakes include choosing hinges by size alone, ignoring load distribution, using too few hinges and overlooking corrosion or vibration exposure.

What Are the Installation Best Practices for Surface Mounted Hinges?

Reliable installation depends on confirming mounting position, reinforcing thin panels, aligning multiple hinges accurately and using suitable fasteners before final testing.

How Do You Confirm Mounting Position?

Mounting position should be verified against the door drawing before drilling or welding, checking that hinge placement matches the intended load distribution and clearance requirements.

How Do You Reinforce Thin Panels?

Thin panels benefit from reinforcement plates or backing structure behind hinge mounting points, reducing the risk of fastener pull-through or panel flex under repeated load.

How Do You Align Multiple Hinges?

Multiple hinges should be aligned on a common vertical or horizontal reference line before final fastening, since even small deviations between hinges create uneven load distribution.

What Fasteners Should You Use?

Fasteners should match the hinge mounting holes, panel material and expected load, with attention to corrosion resistance in outdoor or washdown environments.

How Do You Test the Complete Door Assembly?

Testing should cover opening, closing, alignment, load distribution and overall door movement across the full range of motion before the equipment is placed into service. This step confirms that the hinge assembly performs correctly under the specific door structure it was installed on, rather than relying solely on the hinge specification sheet.

How Should You Maintain and Inspect Surface Mounted Hinges?

Maintenance and inspection should focus on loose fasteners, pin wear, corrosion, door alignment, deformation and lubrication needs rather than a fixed universal schedule.

Inspection routines vary significantly by application environment. A cabinet operating indoors in a controlled environment experiences different wear patterns than an outdoor enclosure exposed to weather and vibration. Rather than applying a single maintenance interval across all applications, we recommend checking fasteners for looseness, inspecting the pin for visible wear, looking for early corrosion signs, verifying door alignment has not shifted, checking for panel or leaf deformation, and confirming lubrication where the hinge design calls for it. The appropriate frequency for these checks should be set based on operating conditions and duty cycle rather than a generic timeline.

How Do You Choose a Reliable Surface Mounted Hinge Manufacturer?

Choosing a reliable manufacturer requires evaluating engineering support, customization capability, manufacturing process, material and quality control, prototype support and long-term supply consistency.

Can the Manufacturer Provide Engineering Support?

Our engineering team reviews drawings, recommends hinge structure suited to the application, evaluates load requirements against the proposed door design, and suggests a mounting method appropriate to the panel and frame. Engineering support at this stage reduces the risk of specifying a hinge that looks correct on paper but does not match the actual door structure.

Does the Manufacturer Offer Customization Capability?

Customization capability should cover custom dimensions, mounting hole patterns, leaf size, pin size, material and surface finish. At ForndLock, we evaluate each of these variables against the door specification provided, rather than adjusting only one parameter while leaving others as a standard default.

What Manufacturing Capability Should You Check?

Manufacturing capability worth confirming includes metal forming, CNC machining, casting, welding, surface treatment and assembly. We manufacture surface mounted hinges using these processes based on the structural and material requirements of each project, matching the process to the hinge geometry rather than forcing a single production method across all designs.

How Is Material and Quality Control Reviewed?

Material and quality control should address material consistency between batches, dimensional accuracy against the approved drawing, surface quality after treatment, and assembly inspection before hinges are packed for shipment. These checks matter as much for repeat production runs as for the first batch.

Does the Manufacturer Support Prototyping?

Prototype support includes sample production, installation verification on an actual or representative door structure, and design improvement based on what is observed during that verification. From our engineering experience, prototype validation before batch production reduces the risk of discovering an alignment or load issue only after a full production run has been completed.

Can the Manufacturer Support Long-Term Supply?

Long-term supply capability depends on production consistency across repeat orders, support for future replacement parts, and batch stability as order volumes change. This matters particularly for equipment manufacturers who need matching hinges for the same product line over an extended period.

What Information Should You Provide to a Surface Mounted Hinge Manufacturer?

Providing accurate door drawings, weight, size, material requirements, environment, mounting method and quantity allows a manufacturer to recommend the correct hinge structure.

When Do You Need a Custom Surface Mounted Hinge?

A custom surface mounted hinge is needed when standard dimensions, mounting patterns, materials or load requirements cannot meet a specific door structure or operating environment.

At ForndLock, we support custom surface mounted hinge projects through:

· Drawing review

· Application evaluation

· Material recommendation

· Custom dimensions

· Mounting design

· Surface treatment selection

· Prototype validation

· Production support

To move a custom project forward, we recommend sharing drawings, door specifications, weight requirements, the intended operating environment and expected quantity. This information allows our engineering team to evaluate the application properly rather than proposing a hinge based on incomplete assumptions.

What Should You Remember Before Choosing a Surface Mounted Hinge?

Choosing a surface mounted hinge should never depend only on size or appearance; door weight, load distribution, material, mounting method, environment and installation accuracy must be considered together.

Surface mounted hinges are a practical, accessible hardware choice for industrial equipment doors, electrical cabinets, machinery enclosures and outdoor cabinets because they support simple installation, easy replacement and flexible mounting. That practicality only holds if the hinge is matched correctly to the door it is installed on.

When evaluating a manufacturer, engineering capability, customization capability, manufacturing process and quality consistency are the factors that determine whether a supplier can support a project reliably, not just for an initial order but across repeat production and future replacement needs.
