Stainless Steel Lift-Off Hinges: Types, Applications and Selection Guide

Industrial doors, machine guards, and equipment panels often need to come completely off their frame for cleaning, repainting, or heavy repair, and stainless steel lift-off hinges make that possible without unbolting fasteners or driving out a fixed pin. At ForndLock, we review requests for removable door hinges almost every week, and the pattern is consistent: engineers know they need a hinge that separates cleanly, but they are less certain about handing, offset, lift clearance, and the right stainless steel grade for their environment. Selecting stainless steel lift-off hinges is not a matter of matching a hole pattern on a data sheet. It requires evaluating door weight, centre of gravity, hinge orientation, mounting rigidity, and the space available above the door before the hardware is finalized. This guide walks through the structure, types, materials, applications, and selection logic we apply when reviewing lift-off hinge projects for industrial equipment, cabinets, machinery guards, and removable access panels.

What Is a Stainless Steel Lift-Off Hinge?

A stainless steel lift-off hinge is a two-part hinge assembly consisting of a door leaf, a frame leaf, and a vertical pin that allows the two leaves to separate once the door is raised to a specific position. The frame leaf typically carries the pin, either fixed or removable, while the door leaf carries a knuckle that engages the pin and rotates around it during normal opening and closing. Depending on the design, the knuckle and pin sit either in-line with the mounting surfaces or offset from them, and the leaves attach through mounting holes, screws, or a welding surface machined or formed for that purpose.

Functionally, the hinge supports the door through its full range of rotation, just as a standard butt hinge does. The difference is that once the door reaches an approved angle, the leaf can be lifted vertically off the pin, separating the door from the frame. This is useful for maintenance access, cleaning cycles, panel replacement, and equipment servicing where technicians would otherwise need to unscrew or unbolt the hinge each time the door is removed.

We want to be clear about one distinction that gets confused often: lift-off describes a structural behavior, and stainless steel describes a material property. A hinge can be lift-off and made from mild steel, aluminum, or zinc alloy. A stainless steel hinge can be lift-off, fixed-pin, or continuous. When we talk about stainless steel lift-off hinges, we are combining two separate selection decisions — the mechanical behavior needed for door removal, and the material behavior needed for the operating environment — and both need to be confirmed independently.

How Does a Lift-Off Hinge Work?

A lift-off hinge works by engaging two leaves on a vertical pin so the door swings normally during use, then separating once the leaf is raised past its engagement length at a permitted angle. The mechanism follows a defined sequence:

1. The frame leaf and door leaf engage through the pin and knuckle, forming a continuous rotating joint.

2. During normal operation, the door swings open and closed around the pin axis, just like a fixed hinge.

3. When the door reaches the angle specified for removal — often, but not always, close to fully open — the door leaf can be lifted vertically.

4. As the leaf rises past the pin's engagement length, the knuckle clears the pin and the two halves separate.

5. The door is then free of the frame and can be moved away for service, cleaning, or replacement.

Several variables control whether this sequence works safely. The removal angle matters because some geometries only disengage cleanly near full swing, while lifting at a partial angle can bind the knuckle against the pin. The pin orientation determines whether lift direction is up or down, which matters when the hinge is inverted or mounted upside down for design reasons. The vertical lift distance has to clear the full pin engagement length, and there needs to be open space above the door for the leaf to travel through that distance without striking a header, conduit, or bracket.

Handing also affects this process, because a left-hand hinge and a right-hand hinge lift in different directions relative to the door swing. We should also be direct about a common misconception: not every lift-off hinge can be separated at any arbitrary angle. Some designs are engineered to disengage only within a narrow angular range, and forcing separation outside that range risks damaging the knuckle or the pin seat.

How Do Lift-Off Hinges Differ From Fixed-Pin Hinges?

Lift-off hinges allow the door to separate from the frame without removing fasteners, while fixed-pin hinges keep the door permanently attached unless the pin itself is driven out or drilled. Both structures are legitimate industrial choices, and the right one depends on how often the door needs to come off and what stability is required during normal use.

We see fixed-pin hinges chosen where the door rarely, if ever, needs full removal, and where the simplicity of a continuous pin outweighs the convenience of a separable joint. Lift-off hinges earn their place where technicians repeatedly need the door fully out of the way — for cleaning a food processing line, swapping a heavy access panel, or repainting an outdoor enclosure door. Neither structure is universally better; the decision depends on maintenance frequency, safety tolerance for accidental separation, and how much vertical clearance the installation actually has.

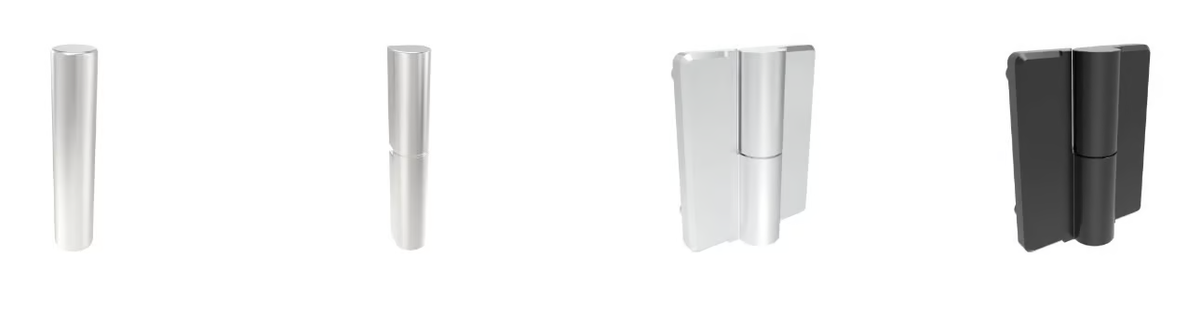

What Types of Stainless Steel Lift-Off Hinges Exist?

Stainless steel lift-off hinges come in several structural variants — handed, in-line, offset, surface-mounted, weld-on, screw-mounted, heavy-duty, and concealed — and each variant suits a different door structure and mounting condition. Treating "lift-off hinge" as a single product category, rather than a family of related structures, is one of the more common causes of a wrong order.

How Do You Identify Left-Hand or Right-Hand Lift-Off Hinges?

You identify handing by standing on the side the door swings toward and checking which side carries the pin and knuckle. In our engineering reviews, handing errors are one of the most frequent issues we catch before production, usually because the drawing shows the door from the wrong viewpoint or omits the swing direction entirely. The convention is to view the door from the side it opens toward, note whether the hinge is on the left or right, and confirm the pin's lift direction against that same orientation. We recommend confirming handing directly from the fabrication drawing rather than assuming a default, because a mismatched hinge will still bolt on but will lift off in the wrong direction or interfere with the door swing.

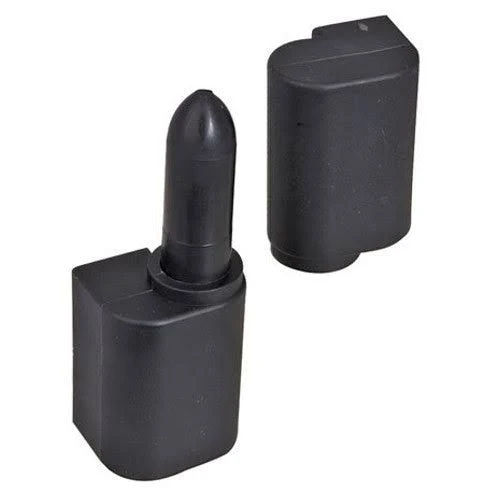

What Is an In-Line Knuckle Lift-Off Hinge?

An in-line knuckle lift-off hinge places the pin axis directly between two mounting surfaces on the same plane, producing a tight, consistent door gap.

This geometry works well where the door and frame sit flush or nearly flush against each other, with no significant return or step between the two surfaces. In-line hinges are common on flat access panels and lightweight enclosure doors where a minimal gap is preferred for appearance or sealing. The opening angle tends to be limited by the leaf geometry rather than by clearance behind the frame, so it suits equipment where a moderate swing is sufficient.

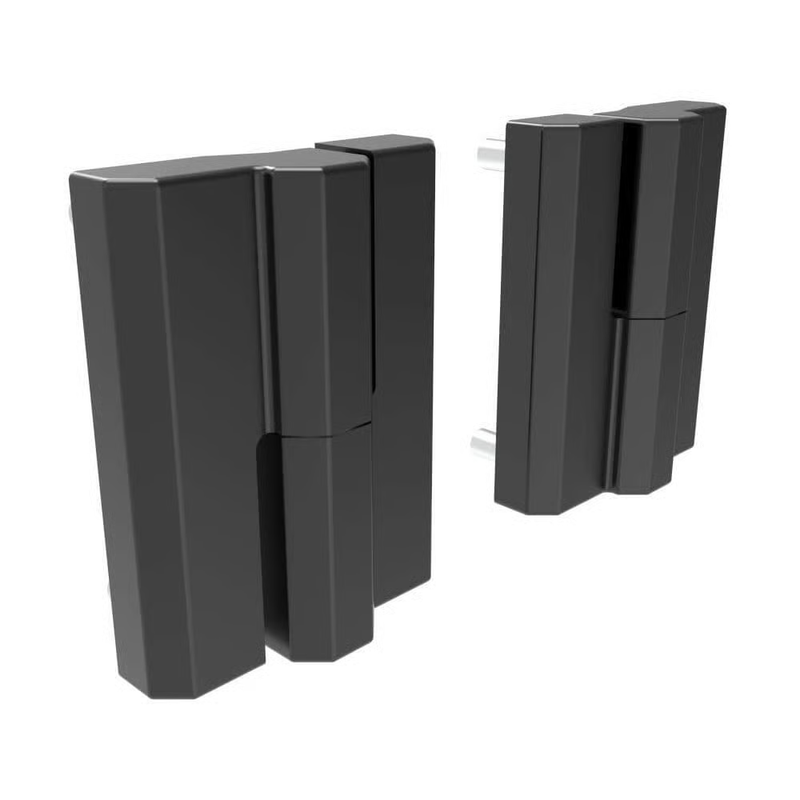

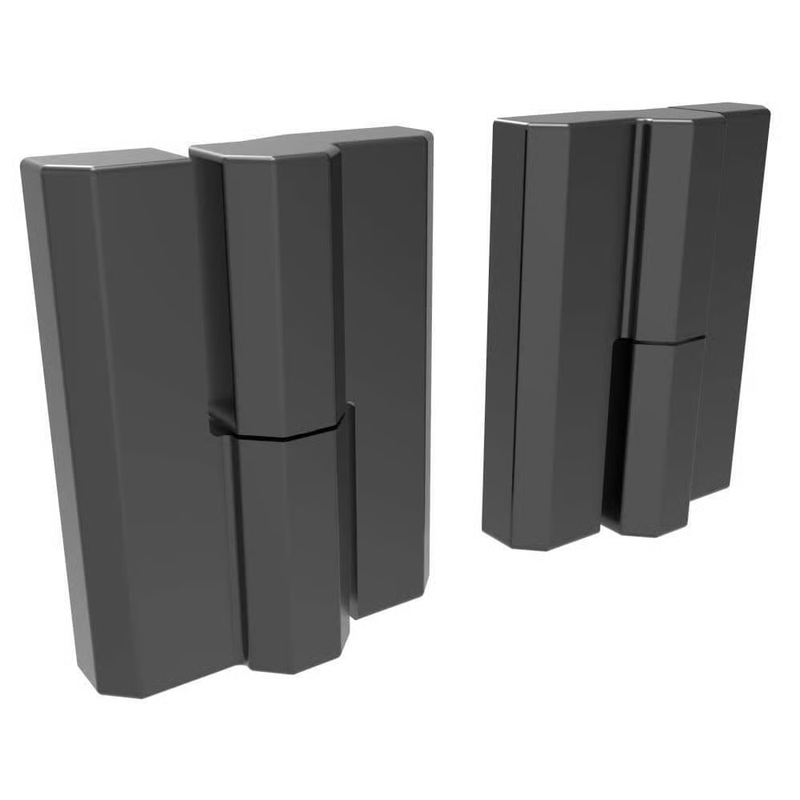

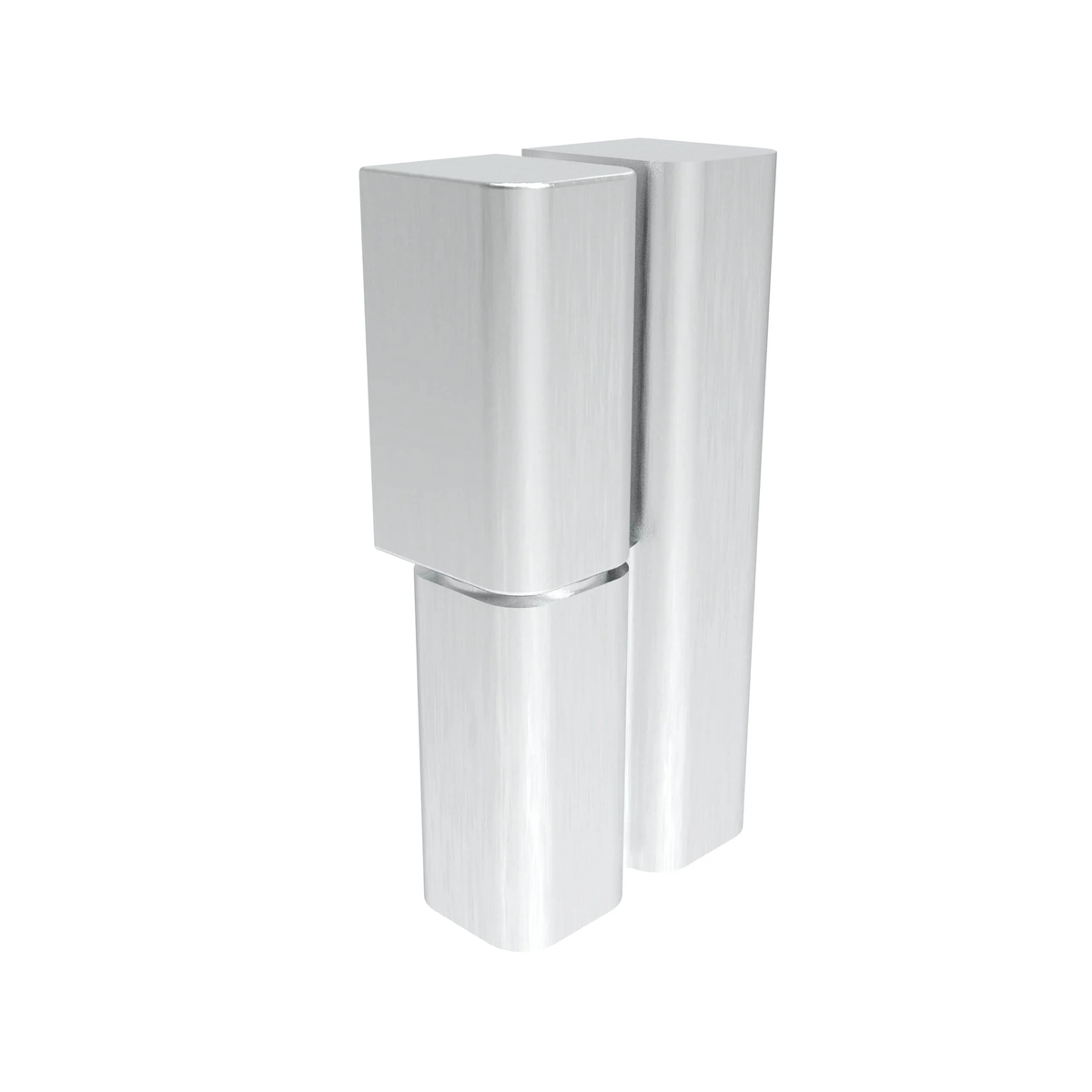

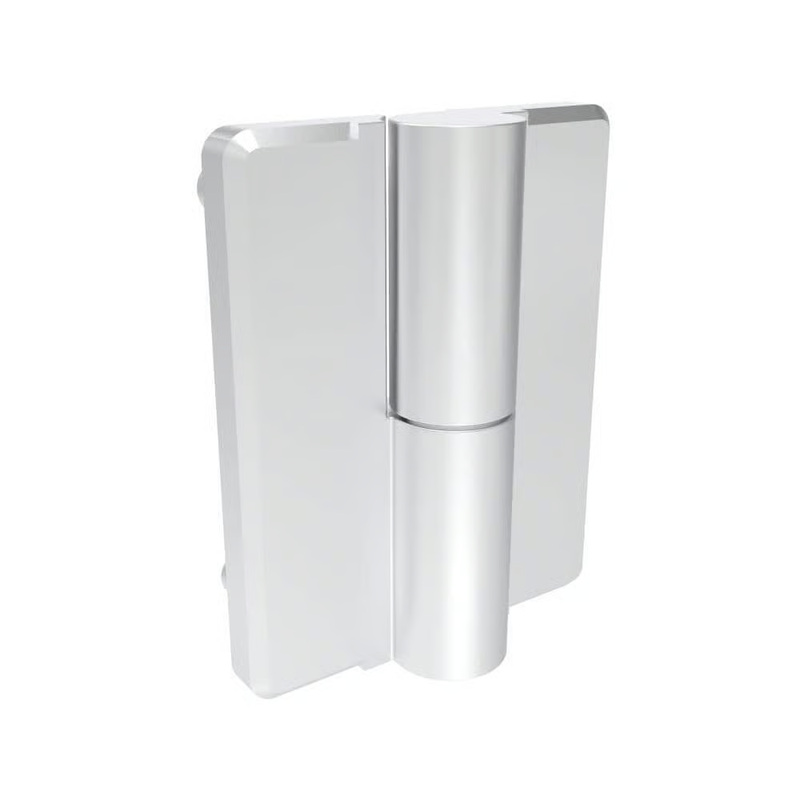

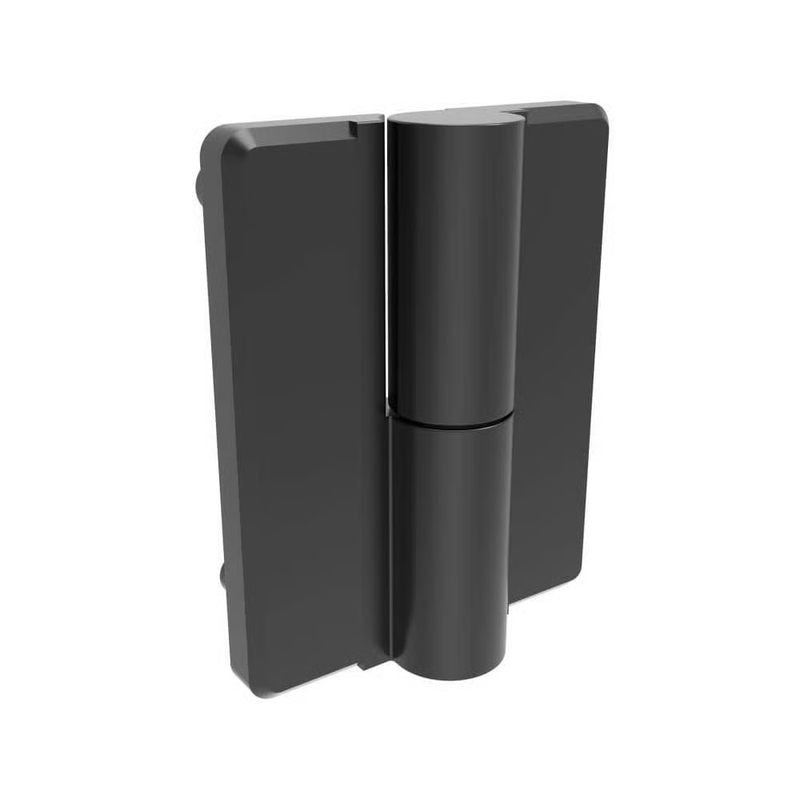

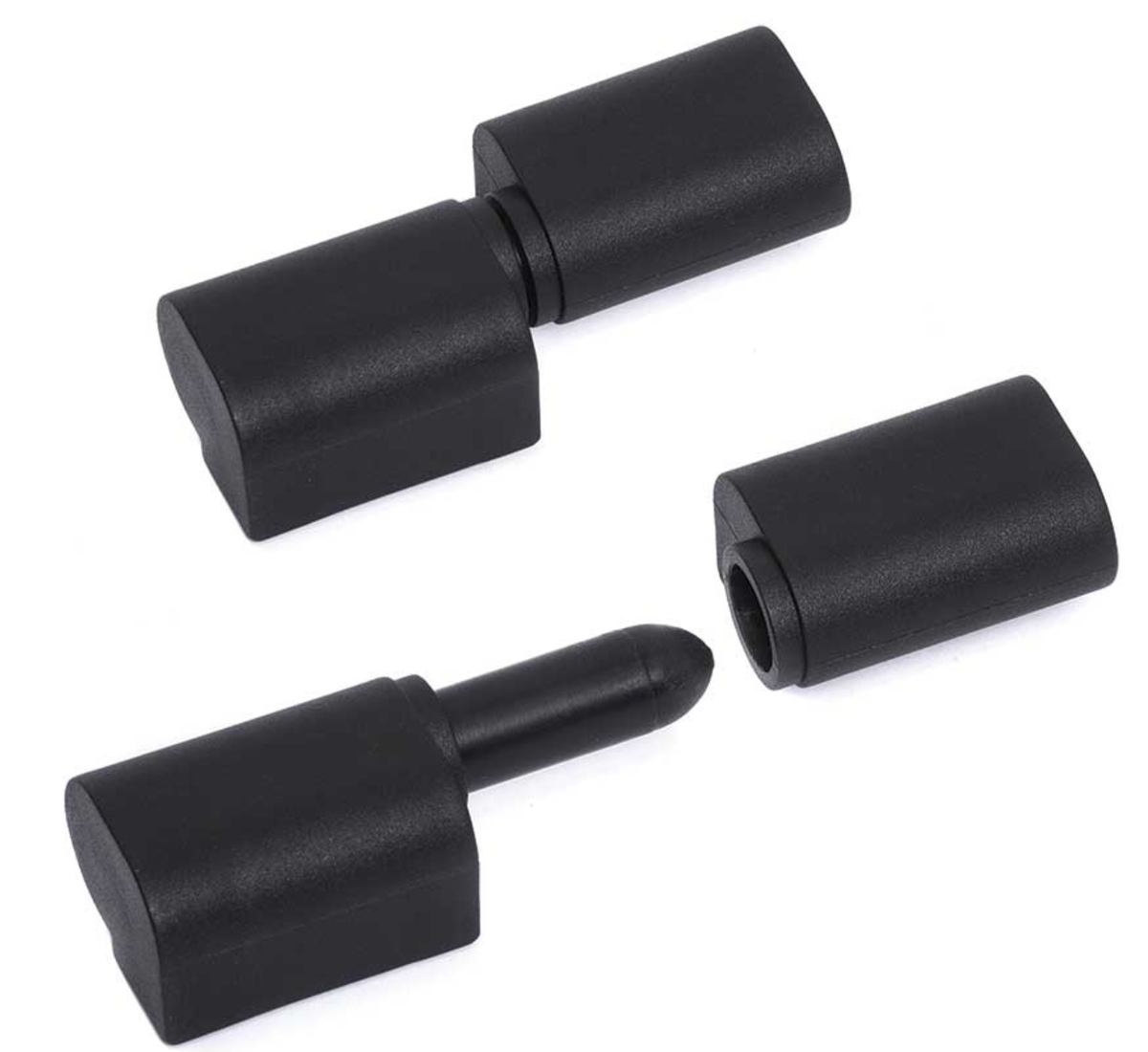

What Is an Offset Lift-Off Hinge?

An offset lift-off hinge shifts the pin axis away from the mounting surface to clear a door return, gasket, or frame profile.

Many cabinet doors have a formed lip or return that sits proud of the frame face, and mounting an in-line hinge on that structure would either bind the door or crush the gasket. The offset distance moves the pivot point outward so the door can swing clear of the frame lip while still sealing correctly when closed. Getting the offset dimension wrong is a recurring issue we review on drawings — even a few millimeters of error changes the door gap, the gasket compression, and sometimes the achievable opening angle.

How Do Surface-Mounted Lift-Off Hinges Work?

Surface-mounted lift-off hinges attach externally to the door and frame faces using visible fasteners, which simplifies both installation and later replacement. Because the hardware sits on the outside of the structure, alignment during installation is straightforward, and a damaged hinge can usually be swapped without disassembling the door. The trade-off is that the fasteners and hinge body are exposed, so where tamper resistance or a cleaner external appearance matters, additional anti-tamper fasteners or a cover plate are worth considering.

When Should You Use Weld-On Lift-Off Hinges?

Weld-on lift-off hinges suit heavier doors and structural frames where welded rigidity is preferred over a bolted connection. They eliminate reliance on threaded fasteners, which matters on doors subject to vibration or repeated impact. The trade-off is that welding introduces heat distortion risk, and if the two leaves are not fixtured correctly during welding, the pin axis can shift slightly, causing binding once the door is hung. Weld-on hinges also demand more care in surface finishing afterward, since the heat-affected zone can alter the passive layer on stainless steel and needs re-passivation or cleanup to restore corrosion resistance. Once welded in place, replacement is more involved than with a bolted hinge, so this method fits applications where long-term stability outweighs future serviceability.

When Are Screw-Mounted Lift-Off Hinges Suitable?

Screw-mounted lift-off hinges suit thinner sheet-metal enclosures where a reinforced backing plate can support the fastening load. They are quick to install and simple to replace, which is useful on cabinet doors and light-duty access panels. The main limitation is that thin panel material alone often cannot hold screws securely under repeated door cycles, so a backing plate, rivnut, or welded nut is usually needed behind the mounting point. Thread-locking measures also matter here, since vibration can work screws loose over time if no retaining feature is used.

What Defines a Heavy-Duty Lift-Off Hinge?

A heavy-duty lift-off hinge is defined by a larger leaf area, thicker pin diameter, and an expanded mounting zone, not simply by its overall physical size. We caution against judging load capacity from appearance alone, because two hinges of similar outer dimensions can carry very different loads depending on wall thickness, pin diameter, and how the mounting holes are arranged relative to the load path. Heavy-duty designs are generally intended for wider or taller doors, doors carrying mounted equipment, or applications with frequent open-close cycles, but confirming actual capacity should always come from the manufacturer's engineering data rather than a visual comparison.

What Are Concealed or Semi-Concealed Lift-Off Hinges?

Concealed or semi-concealed lift-off hinges hide most of the hardware within the door or frame profile to protect appearance and reduce external exposure. This is useful where a clean external face matters, or where exposed hardware could be caught, damaged, or tampered with. The trade-off is installation and maintenance complexity — concealed designs typically require more precise mounting tolerances, and the removal path needs to be confirmed carefully since the leaf may need to travel through a slot or recess rather than lifting freely in open air.

When we review a drawing, we generally cross-reference the door structure against this table before recommending a type, because the frame profile and door return often eliminate two or three options before material or finish is even discussed.

304 or 316: Which Stainless Steel Grade Fits?

304 stainless steel suits general indoor and moderate-humidity environments, while 316 stainless steel is recommended where chlorides, coastal air, or aggressive cleaning chemicals are present. Grade selection is one of the areas where we most often ask for more environmental detail before confirming a specification, because the two grades are not interchangeable once salt exposure or aggressive washdown chemicals enter the picture.

When Is 304 Stainless Steel Sufficient?

304 stainless steel is sufficient for general industrial interiors and typical washdown conditions where chloride exposure stays limited. It offers solid corrosion resistance for indoor cabinets, general machinery guards, and equipment kept away from coastal air or heavy salt exposure. It machines and forms well, and its cost sits below 316, which makes it the default choice unless the operating environment pushes toward the higher grade. Its limitation is straightforward: in environments with persistent chloride exposure, 304 shows pitting and surface corrosion faster than 316 would under the same conditions.

Neutral Salt Spray Test for ForndLock Rotary Locks & Swing Hinges

When Does 316 Stainless Steel Make Sense?

316 stainless steel makes sense in coastal, marine-adjacent, or high-salinity environments where 304 shows accelerated surface corrosion. The added molybdenum content improves resistance to chloride attack, which matters for outdoor equipment near coastlines, marine deck hardware, and facilities using aggressive cleaning agents. That resistance comes at a higher material cost, and it is worth stating plainly: 316 is not a universal upgrade that suits every environment. In dry indoor applications, it offers little practical benefit over 304 while adding unnecessary cost. Grade selection should follow the actual exposure conditions — chloride level, cleaning chemistry, humidity, and temperature swings — not a blanket assumption that higher grade always means better performance.

We should also be direct about a broader point: stainless steel resists corrosion, but it is not immune to it. Both 304 and 316 can corrode under sustained exposure to aggressive chemicals, poor cleaning practices, or contact with dissimilar metals that create galvanic reactions. Material selection needs to weigh the corrosive medium, the cleaning method used on site, mechanical strength requirements, and cost together, rather than treating "stainless steel" as a single guaranteed solution.

How Do Surface Finishes Affect Corrosion Resistance?

Surface finish affects how readily contaminants adhere to the hinge and how consistently the passive oxide layer performs, not just how the hinge looks. A polished finish gives a smooth, reflective surface that resists surface staining reasonably well, though it can show fingerprints and light scratching over time. A satin finish is more forgiving in appearance and commonly used where a lower-maintenance look is preferred over a mirror finish. Passivation treatment restores or reinforces the chromium oxide layer after fabrication, which matters particularly after welding or machining disturbs the surface. Electropolishing, where specified, can produce an especially smooth surface that reduces bacterial adhesion and cleaning residue, which is why it appears in some hygienic equipment specifications. An uncoated mill finish, by contrast, may carry embedded contaminants from manufacturing that reduce corrosion performance until cleaned or treated.

We avoid making blanket promises about any of these finishes without a specific product and process behind them. The right finish depends on the application's cleaning regime, appearance requirements, and how much surface preparation was actually performed on the hinge in question.

Where Are Stainless Steel Lift-Off Hinges Used?

Stainless steel lift-off hinges are used on electrical cabinets, machinery guards, outdoor enclosures, hygienic equipment, marine equipment, transportation panels, and telecom cabinets, and each of these applications carries different load, access, and corrosion demands.

What Do Electrical Cabinets Require?

Electrical cabinets require accurate door alignment and consistent gasket compression to maintain enclosure protection through repeated door removal. Beyond the hinge itself, we look at how the door centers against the frame, whether the seal compresses evenly across its length, and how grounding continuity is maintained once a hinge is removed and reinstalled. Load distribution across the hinge set matters too, particularly on wider cabinet doors carrying mounted components.

How Do Machinery Guards Use Lift-Off Hinges?

Machinery guards use lift-off hinges to allow full panel removal for frequent maintenance while resisting vibration-induced loosening during operation. Guards are opened and closed often, sometimes multiple times a shift, so fastener retention and wear resistance at the pin matter more here than in a rarely opened cabinet. Door weight combined with vibration also raises the importance of anti-lift retention, since an accidentally separated guard panel is a safety concern, not just an inconvenience.

What Do Food and Hygienic Applications Need?

Food and hygienic applications need smooth, cleanable surfaces and hinge geometry that avoids trapping residue during washdown. Crevices around the knuckle and pin can collect moisture and food residue if the geometry is not considered carefully, and this is one reason lift-off structures are popular in this sector — the door can be fully removed for thorough cleaning rather than scrubbed around fixed hardware. We want to be clear that choosing stainless steel does not by itself satisfy any hygiene or food-contact certification; certification depends on the complete assembly, surface treatment, and the standards the equipment is built to meet.

Why Choose 316 for Marine Equipment?

316 stainless steel is generally preferred for marine equipment because it resists chloride attack better than 304 under salt spray exposure. Beyond grade selection, dissimilar metal contact is worth checking closely on marine hardware, since pairing stainless steel hinges with incompatible fasteners or adjacent metals can accelerate galvanic corrosion at the contact point. Fastener material compatibility and a realistic cleaning schedule both influence how well the hinge performs over time in this environment.

How Do Transportation Doors Handle Vibration?

Transportation doors rely on anti-lift features and correct hinge spacing to prevent accidental separation under vibration and shock. Repeated road or rail vibration can work a poorly retained lift-off hinge loose over time, so this application category is one where we pay close attention to secondary retention hardware, not just load rating. Maintenance efficiency still matters, since transportation panels are often serviced in the field with limited tools.

What Do Telecom and Energy Cabinets Need?

Telecom and energy storage cabinets need hinges sized correctly to the door panel with reliable sealing for outdoor, largely unattended installation sites. These cabinets are often visited infrequently, so the hinge and seal need to perform reliably between service intervals without close monitoring. Door size on this equipment can vary significantly, which affects both hinge count and mounting method decisions.

How Do You Select the Right Lift-Off Hinge?

Selecting the right stainless steel lift-off hinge requires reviewing door weight, centre of gravity, handing, lift clearance, geometry, mounting method, environment, opening angle, and anti-lift needs together, rather than relying on any single factor. This is the section our engineering team spends the most time on with new drawings, because most selection mistakes come from treating one variable — usually dimension or material — as the whole decision.

How Do Door Weight and Gravity Matter?

Door weight and its centre of gravity together determine the bending moment the hinge must resist, particularly when the door is fully open and unsupported. We look at overall door mass, door width and height, the distance from the hinge axis to the centre of gravity, and any equipment or accessories mounted on the door face, since these shift the load point outward and increase the moment arm. Dynamic load from repeated opening and closing also matters, especially in high-cycle applications. We intentionally avoid quoting blanket load figures here, because actual capacity depends on the specific hinge model and should come from the manufacturer's engineering data for that part.

How Many Hinges and What Spacing Are Needed?

The number and spacing of hinges depend on door height, panel stiffness, and how much load the top hinge carries relative to the others. Two hinges are common on smaller, lighter doors, but taller or heavier doors, and doors built from thinner sheet material, often need a third hinge to control flex and reduce load concentration on the top hinge. Spacing and panel reinforcement both influence how well the door resists sag over time. As with load capacity, exact hinge count and spacing should be verified against the manufacturer's data for the specific hinge and door combination, not assumed from habit.

How Do You Confirm Left- or Right-Hand Orientation?

You confirm handing by checking the drawing's opening direction, pin position, and lift direction before ordering, rather than assuming a default. We treat this as a non-negotiable step in drawing review, since a hinge ordered with the wrong hand will still physically mount but will lift in the wrong direction, sometimes fouling the door swing entirely.

How Much Vertical Lift Clearance Is Needed?

Vertical lift clearance must equal or exceed the pin engagement length plus enough additional space above the door for the leaf to fully disengage. This means measuring the space above the door frame, confirming the actual pin engagement length on the specified hinge, and checking for interference from cables, conduit, brackets, or adjacent equipment that might block the lift path. Skipping this check is one of the more common on-site surprises we hear about — the hinge works perfectly on paper but the door cannot actually be lifted clear once installed.

In-Line or Offset: Which Geometry Fits?

In-line or offset geometry is determined by the frame flange, door return, gasket clearance, and the resulting door gap and opening angle. We walk through the frame section drawing to check whether the door sits flush or has a formed return, whether a gasket needs clearance to seal correctly, and how much height difference exists between the two mounting faces before recommending either geometry.

Which Mounting Method Should You Choose?

The mounting method should match the door's material thickness and structural rigidity, since screw, bolt, rivet, and weld-on connections each carry different trade-offs. Screw and bolt mounting offer easier replacement and adjustment but need adequate backing on thin panels. Riveted connections offer a permanent, vibration-resistant joint but are harder to service. Weld-on mounting provides the highest rigidity for heavy doors but introduces distortion risk and limits future hinge replacement without cutting and rewelding.

How Does Environment Affect Hinge Choice?

Environment affects both material grade and finish choice, factoring in humidity, salt exposure, cleaning chemicals, temperature, washdown frequency, and contact with dissimilar metals. An indoor cabinet in a dry, climate-controlled facility has very different requirements from an outdoor enclosure exposed to salt spray and daily washdown, and the hinge specification should reflect that difference rather than defaulting to one grade across all projects.

What Opening Angle Allows Safe Removal?

Safe removal requires confirming the available opening angle, checking for door interference, and verifying limiters or supports before attempting to lift the door. Some equipment layouts restrict how far a door can swing before hitting an adjacent panel or structure, which in turn limits whether the door can reach the angle required for separation. Door stops or angle limiters should be checked against the hinge's specified removal angle, not assumed to align automatically.

How Do Anti-Lift Features Prevent Failure?

Anti-lift features such as retaining pins, screws, or locking clips prevent the door from separating accidentally during normal operation. These features add a small amount of extra effort when intentional removal is needed, but they close the safety gap that a purely frictional lift-off joint leaves open, particularly on doors subject to vibration, wind load, or accidental upward force. Balancing removal convenience against unintentional separation risk is a judgment call that should be made deliberately for each application, not left to the default hinge configuration.

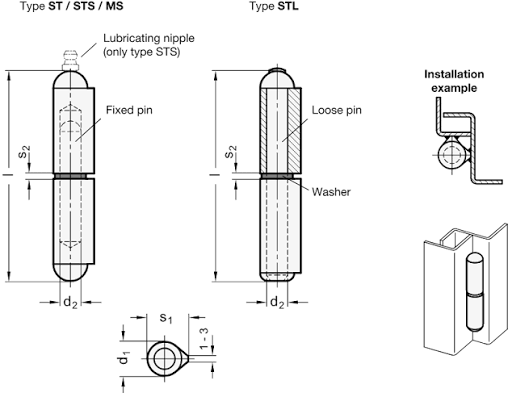

How Do You Install Lift-Off Hinges Correctly?

Correct installation depends on aligning the hinge axis, supporting the door during fitting, verifying the removal path, and testing the finished assembly before releasing it to service.

Why Must the Hinge Axis Stay Aligned?

Misaligned hinge axes across multiple hinges on the same door cause binding, uneven wear, and difficulty lifting the door off cleanly. We often see this issue when hinges are installed independently without a shared reference line, leading to a door that swings stiffly even though each individual hinge measures correctly on its own.

Why Support the Door During Installation?

Temporary support during installation prevents the door from sagging or twisting the hinge leaves before fasteners or welds are fully secured. An unsupported door hanging on a partially fastened hinge can distort the leaf or knuckle before the connection reaches full strength, creating a problem that is hard to diagnose after the fact.

How Do You Verify the Removal Path?

Verifying the removal path means checking lift distance, opening angle, overhead interference, and available operator space before finalizing the installation. This confirmation should happen with the door actually in place, not only on the drawing, since real-world tolerances and adjacent equipment can differ from the design intent.

Which Fasteners or Welds Should You Use?

Fastener or weld selection should match the leaf thickness and expected load, with attention to thread engagement, backing plates, weld sequence, and post-weld cleanup. On bolted connections, we check thread engagement length and whether a backing plate is needed on thin material. On welded connections, weld sequence and fixturing control distortion, and post-weld cleanup — including re-passivation where needed — restores the stainless steel's corrosion resistance in the heat-affected zone.

How Do You Test the Finished Door?

Testing the finished door means checking smooth movement, sag, gap consistency, removal and reinstallation, fastener stability, anti-lift function, and gasket compression. We treat this as a standard step before any lift-off hinge installation is considered complete, since several of these issues only appear once the door has been cycled open and closed several times.

What Selection and Installation Mistakes Should You Avoid?

The most common mistakes involve selecting hinges by dimension alone, ignoring handing, underestimating lift clearance, and skipping full-door sample testing.

1. Selecting by dimension alone. Error: choosing a hinge because its outer size matches a cutout. Consequence: the hinge may lack the load capacity or pin engagement the door actually needs. Correct approach: match capacity data from the manufacturer to the door's actual weight and use profile.

2. Not confirming handing. Error: ordering without checking left- or right-hand orientation on the drawing. Consequence: the hinge lifts in the wrong direction or interferes with the door swing. Correct approach: confirm handing from a drawing showing the operator's viewpoint before ordering.

3. Ignoring lift clearance. Error: overlooking the space needed above the door to disengage the leaf. Consequence: the door cannot actually be removed once installed, despite a correctly specified hinge. Correct approach: measure overhead clearance on site, not only from the drawing.

4. Considering weight but not centre of gravity. Error: sizing hinges from total door weight alone. Consequence: underestimating the bending moment on doors with off-center mass or mounted equipment. Correct approach: calculate the moment arm from the hinge axis to the actual centre of gravity.

5. Multiple hinges out of axis. Error: installing hinges independently without a shared alignment reference. Consequence: binding, uneven wear, and difficulty during lift-off. Correct approach: align all hinges to a common vertical reference line before final fastening.

6. Incorrect offset dimension. Error: specifying or measuring the offset distance incorrectly. Consequence: poor door gap, gasket compression issues, or restricted opening angle. Correct approach: verify offset against the actual frame return and gasket clearance, not a standard assumption.

7. Wrong stainless steel grade. Error: defaulting to 304 or 316 without reviewing the exposure environment. Consequence: premature corrosion in coastal settings, or unnecessary cost in dry indoor settings. Correct approach: match grade to actual chloride, humidity, and chemical exposure.

8. Ignoring dissimilar metal contact. Error: pairing stainless steel hinges with incompatible fasteners or adjacent metals. Consequence: galvanic corrosion at the contact point. Correct approach: confirm fastener and adjacent material compatibility, particularly in marine or high-humidity settings.

9. Thin panels without reinforcement. Error: mounting screws directly into unreinforced sheet metal. Consequence: loosening or pull-out under repeated cycling. Correct approach: add a backing plate or reinforced mounting point behind the hinge.

10. Weld-induced axis distortion. Error: welding hinge leaves without proper fixturing. Consequence: the pin axis shifts, causing binding once the door is hung. Correct approach: fixture leaves precisely and control weld sequence to limit heat distortion.

11. Unassessed accidental lift risk. Error: omitting anti-lift retention on doors exposed to vibration or wind load. Consequence: unintended separation during operation, creating a safety hazard. Correct approach: add retaining pins, screws, or clips based on the operating environment.

12. Skipping full-door sample testing. Error: approving a hinge design from drawings alone. Consequence: fit, alignment, or clearance issues discovered only after volume production. Correct approach: build and test a sample door assembly before committing to production quantities.

How Do You Maintain and Inspect Lift-Off Hinges?

Maintenance and inspection should check pin and knuckle wear, door sag, fastener tightness, weld condition, corrosion, and anti-lift device function on a schedule matched to the operating environment. Pin wear shows up as increased play in the joint or a gradual change in door alignment over time. Door sag often points to worn knuckles, loosened fasteners, or insufficient hinge count for the door's weight. Fasteners should be checked for tightness and thread condition, particularly on doors subject to vibration. Weld joints on weld-on hinges should be inspected for cracking or corrosion at the heat-affected zone. Surface corrosion, contamination buildup, and any permanent deformation of the leaves or pin are worth documenting over successive inspections rather than judged from a single visit. We do not recommend a single maintenance interval that applies across all environments — a coastal outdoor cabinet and a dry indoor enclosure will wear at very different rates, and inspection frequency should reflect that difference.

When Do You Need a Custom Lift-Off Hinge?

A custom lift-off hinge becomes necessary when standard offsets, handing, hole patterns, materials, or opening angles cannot match the existing door and frame structure. In the projects we evaluate, this comes up around non-standard offset distances, unusual left- or right-hand configurations, specific pin and lift directions dictated by surrounding equipment, restricted mounting space, non-standard hole patterns needed to match existing frame cutouts, special material requirements beyond 304 or 316, weld-on structures for heavy machinery frames, added anti-lift retention features, unusual opening angle requirements, compatibility with existing mounting holes on retrofit projects, and non-standard door frame profiles that do not match catalog hinge geometry.

How Does ForndLock Support Custom Lift-Off Hinge Projects?

At ForndLock, we support custom lift-off hinge projects through drawing review, door weight and centre-of-gravity assessment, handing and geometry confirmation, material selection, sample verification, and volume production.

Our process typically starts with a drawing review to confirm door dimensions, mounting structure, and hole positions. From there, we assess door weight and centre of gravity to size the hinge and confirm hinge count and spacing. We work through handing and lift direction with the customer's drawing, decide between in-line and offset geometry based on the frame return and gasket needs, and confirm the appropriate grade between 304 and 316 based on the stated environment. Mounting method — screw, bolt, or weld-on — is matched to the door's material thickness and structural requirements, and surface finish is selected according to appearance and cleaning needs. Where accidental separation is a concern, we incorporate anti-lift retention into the design. Before committing to volume production, we recommend building and testing a sample against the actual door assembly, since this step catches fit and clearance issues that are difficult to identify from drawings alone.

When reaching out about a custom stainless steel lift-off hinge, it helps us move faster if you can share drawings, door dimensions, door weight, centre of gravity if known, opening direction, lift direction, mounting structure, offset requirements, material grade preference, application environment, and expected quantity.

What Should You Confirm Before Ordering Lift-Off Hinges?

Before ordering, confirm door weight, centre of gravity, handing, lift clearance, offset geometry, mounting method, and environmental exposure together, with drawing-based verification at every step. Selecting stainless steel lift-off hinges is never a single-variable decision. Material grade alone does not tell you whether the hinge will support the door's weight, whether it will lift off in the correct direction, or whether the installation has enough clearance for the door to actually come free.

Getting this right means evaluating door weight and centre of gravity together, confirming handing and geometry against the actual frame structure, matching mounting method to material thickness, and selecting a stainless steel grade based on real exposure conditions rather than habit. For projects that fall outside standard offsets, hole patterns, or opening angles, a custom hinge reviewed against your specific drawing and verified with a sample is the more reliable path than adapting a standard part and hoping the fit works out.

If you are working through a stainless steel lift-off hinge selection for an industrial door, cabinet, machinery guard, or removable panel, send your drawings, door dimensions and weight, opening and lift direction, mounting details, material requirements, application environment, and quantity to [email protected]. Our engineering team will review the drawing, work through material selection with you, and support sample evaluation ahead of production.
