How to Measure Cam Locks for Cabinet Replacement Projects
Welcome industrial engineers, procurement managers, and OEM clients to this professional technical guide provided by ForndLock. As a dedicated manufacturer of high-security industrial hardware, we understand that knowing How To Measure Cam Locks is the most critical step in industrial hardware maintenance, system upgrades, and large-scale procurement. This comprehensive manual focuses strictly on how to measure cam lock barrel length for cabinet replacement, providing the necessary engineering insights to ensure your hardware selection is flawless. Unlike standard household furniture hardware that allows for wide margins of error, industrial panels demand exceptionally strict dimensional tolerances. These precise measurements are absolutely mandatory to maintain crucial ingress protection ratings, structural integrity, and security against unauthorized access or environmental contamination.
Throughout this guide, we will outline the exact methodologies our manufacturing and engineering teams utilize daily. We will cover everything from professional tool selection and diameter-to-thickness ratios to real-world failure analysis based on our firsthand manufacturing experience. By adopting our strict measurement protocols, you will eliminate the costly downtime associated with ordering incompatible hardware for heavy-duty enclosures, server racks, and outdoor equipment stations.
What Is The Correct Measurement Process?
The correct measurement process requires extracting the existing hardware from the enclosure and taking precise readings from the base of the head to the cam attachment point. This systematic approach ensures the replacement hardware integrates flawlessly with your specific industrial panel.

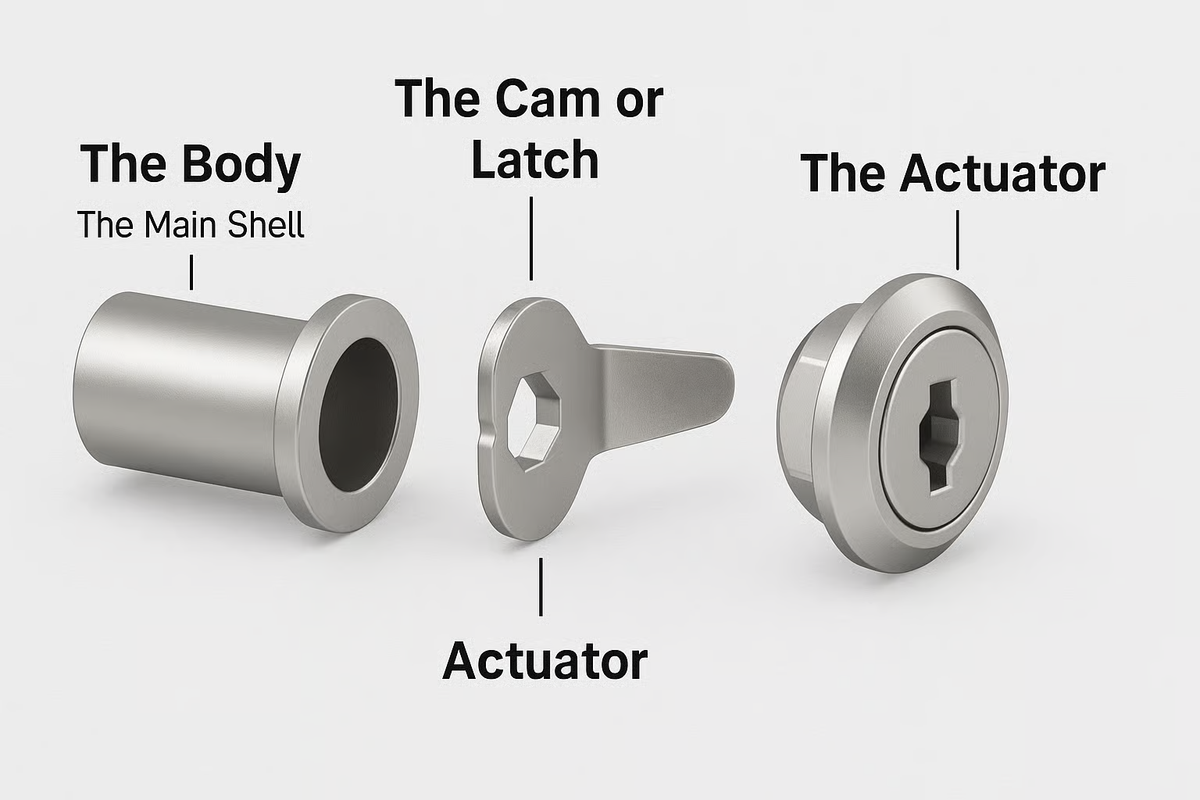

Attempting to measure any industrial locking mechanism while it is still installed inside the door panel invariably leads to distorted depth readings and subsequent procurement failures. The geometry of the door frame, the compression of the weather stripping, and the angle of the measuring tool all introduce unacceptable variables. To begin the correct process, the lock must be completely disassembled and removed from the mounting hole. Once removed, engineers must understand the distinct anatomy of the component to isolate the correct dimensions. The mechanism consists of the head, which rests on the exterior of the door; the cylinder or barrel, which passes through the panel material; the threading, which accepts the fastening nut; and the cam arm, which rotates to secure the door against the interior frame.
Our internal quality assurance and technical support data at ForndLock reveals a startling industry trend: approximately sixty percent of client return requests stem from estimating barrel length while the lock is still mounted rather than measuring the removed component on a flat surface. Mastering how to measure cam lock barrel length for cabinet replacement prevents the most common and expensive procurement error in our industry, which is ordering cylinders that are too short to fully engage the strike plate or too long to maintain a tight weather seal. By isolating the hardware on a professional workbench, procurement managers can confidently capture the exact specifications required to replicate or upgrade the security of their enclosures.

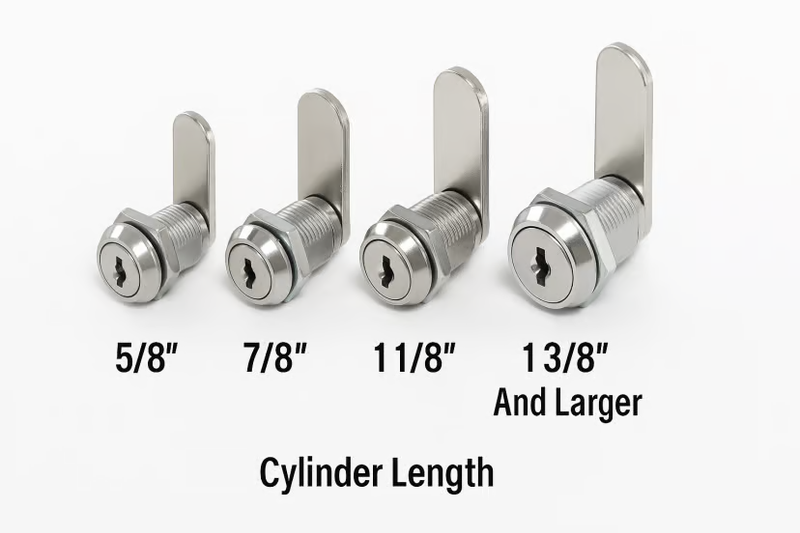

How Do You Measure Barrel Length?
You measure the barrel length by calculating the exact distance from the underside of the lock head to the inner face of the rotating cam. This specific metric dictates whether the lock will secure the cabinet door without rattling or binding.
A frequent point of confusion among procurement managers is the distinction between the effective length and the overall length of the hardware. The overall length includes the exterior head and the protruding cam arm, which is an irrelevant metric for determining panel compatibility. The effective length, which is the true barrel length, strictly measures the threaded body that passes through the door. To capture this, you must place the measuring tool flush against the flat underside of the lock head, which physically rests against the exterior of the cabinet, and extend the measurement down the threaded shaft to the exact point where the cam arm seats against the cylinder. This measurement must account for the space required by the fastening nut and any internal washers. If the effective length is miscalculated, the threading will either fail to protrude far enough into the cabinet interior to attach the securing nut, or it will protrude too far, causing the door to sit loosely against the frame and vibrate under industrial operational stresses.
Why Does Panel Thickness Matter Here?
Panel thickness matters because the cylinder must be long enough to pass entirely through the cabinet wall while leaving enough exposed thread to attach the securing nut and cam arm. Ignoring this leads to immediate installation failure on heavy-duty enclosures.
The relationship between the measured barrel length and the thickness of the cabinet door cannot be overstated. Industrial enclosures are frequently constructed from thick gauge sheet metal, double-walled aluminum, or reinforced fiberglass, all of which present unique depth challenges. If you are working with a flush-mount panel design where the lock head sits in a recessed dimple, the effective material thickness changes, requiring a highly specific barrel length to compensate for the recess. Conversely, surface-mount panels require the barrel to traverse the absolute maximum thickness of the door material plus any exterior powder coating or protective finishes. Furthermore, if the panel is exceptionally thick, the standard threading may not offer enough engagement for the fastening nut to achieve the required torque specifications, leading to mechanical loosening over time due to machine vibration. Understanding the exact thickness of your panel ensures that the measured barrel length will provide adequate thread engagement for a secure, permanent installation.
Which Measurement Tools Should Engineers Use?
Engineers should prioritize digital vernier calipers over standard tape measures to capture exact millimeter readings of the cylinder. This professional approach eliminates tolerance stack-up errors during large-scale enclosure assembly.
In the realm of industrial manufacturing and hardware replacement, the tools utilized dictate the success of the entire operation. Relying on standard construction tape measures or plastic desk rulers is a practice that must be strictly avoided when dealing with high-security enclosures. In these demanding environments, a mere one-millimeter discrepancy in the barrel length or cylinder diameter can severely compromise the structural security of the cabinet and completely void its ingress protection certification. Digital vernier calipers are the undisputed standard for this task. When handling the caliper, the engineer must ensure that the jaws of the tool are placed squarely across the widest points of the cylinder for diameter readings, and perfectly flush against the head base for length readings. The tool must be handled with a steady grip, ensuring no excessive pressure is applied that might tilt the jaws and create a false positive reading on the digital display.
Are Calipers Better Than Standard Rulers?
Digital calipers are vastly superior because they provide precise depth and outer diameter readings down to a fraction of a millimeter. Rulers simply cannot account for the micro-tolerances required in high-security industrial cabinet applications.
The error margins associated with standard rulers render them entirely obsolete for industrial hardware specification. A ruler introduces parallax errors depending on the angle of the viewer's eye, and the thick printed lines on the ruler itself can obscure the true edge of the hardware. Digital calipers eliminate human visual error by providing an exact numerical output. Furthermore, calipers possess multiple measuring faces, allowing an engineer to measure the outside diameter of the threaded barrel using the lower jaws, while simultaneously using the upper jaws to measure the inside diameter of the pre-punched mounting hole on the cabinet door. This dual capability ensures that both the male and female components of the installation matrix are verified with identical precision, a feat that is physically impossible to achieve with a standard straight-edge ruler.
How To Avoid Common Reading Errors?
To avoid common reading errors, always ensure the measuring tool is perfectly parallel to the cylinder body and zeroed out before use. Taking three separate measurements and averaging them guarantees absolute accuracy for procurement.
Even with high-end digital calipers, human error can corrupt the data if strict procedures are not followed. The most prevalent mistake observed during technical audits is the accidental inclusion of the lock head in the barrel length measurement. Procurement personnel often measure from the very top of the curved exterior head down to the base, artificially inflating the required length and resulting in hardware that hangs loosely in the door frame. Another frequent error is measuring all the way to the extreme end of the threaded shaft, ignoring the fact that the cam arm actually seats several millimeters higher up on the body. To prevent these costly mistakes, the tool must be calibrated and zeroed before every session. The jaws must be aligned perfectly parallel to the central axis of the cylinder. We highly recommend taking three distinct measurements, removing the tool entirely between each attempt, and calculating the average to serve as your final procurement specification.
How Do Dimensions Dictate Panel Compatibility?
Dimensions dictate compatibility by ensuring the cylinder diameter matches the pre-punched mounting hole and the barrel length accommodates the exact material depth. Mismatched dimensions result in loose fittings, compromised IP ratings, or total mechanical failure.
The physical constraints of the cabinet door represent a rigid framework that the replacement hardware must perfectly match. In industrial manufacturing, mounting holes are generally standardized to specific metric diameters, most commonly sixteen millimeters, nineteen millimeters, and twenty-two millimeters. If the measured outer diameter of your cylinder is even slightly larger than the mounting hole, the lock simply will not pass through the panel. Conversely, if the cylinder diameter is significantly smaller than the hole, the lock will shift off-center when torqued down, creating gaps that allow moisture and dust to bypass the exterior gasket. To streamline this critical matching process, ForndLock provides comprehensive structural reference tables to our OEM clients. These technical documents allow procurement teams to seamlessly translate their physical measurements into precise product codes, ensuring that the interplay between the cylinder diameter, the threaded length, and the physical panel thickness is perfectly harmonized before a purchase order is ever generated.
What Does The Diameter Chart Reveal?
A comprehensive cam lock cylinder diameter measurement chart for panel thickness reveals the exact lock specifications required for various sheet metal gauges. It acts as an essential cross-reference tool for procurement managers to verify compatibility before ordering.
Navigating the complexities of hardware selection requires reliable reference materials. When you utilize a cam lock cylinder diameter measurement chart for panel thickness, you are essentially viewing a matrix that cross-references the maximum allowable material depth against the outer dimensions of the lock body. This chart reveals the absolute limits of each hardware configuration. For example, it will indicate that a nineteen-millimeter diameter cylinder with a twenty-millimeter barrel length can only secure a panel up to twelve millimeters thick, once the nut and cam arm are accounted for. At ForndLock, our engineering teams continuously rely on a highly detailed cam lock cylinder diameter measurement chart for panel thickness to customize hardware solutions for non-standard enclosure thicknesses. By consulting these charts, engineers can instantly determine if a standard off-the-shelf component will suffice or if the specific sheet metal gauge of the project necessitates a custom-machined barrel length to achieve the required structural security.
How To Match Length To Thickness?
You match length to thickness by adding the cabinet wall depth to the thickness of the securing nut and the required clearance for the cam rotation. This calculated total determines the absolute minimum barrel length required.
ForndLock 9340 Lock Cylinder Assembly Machine: Advanced Automation Line
The engineering formula for calculating the required barrel length is a strict mathematical addition of the physical barriers the lock must traverse. You must measure the exact depth of the cabinet wall and add the thickness of the securing hex nut, the thickness of the cam arm itself, and the depth of any weather-sealing gaskets or anti-vibration washers that will be installed on the shaft. The sum of these measurements dictates the minimum effective barrel length required for a successful installation. In scenarios where a standard manufactured length is marginally too long for a particularly thin panel, engineers can utilize specialized spacer rings or extension collars. These metal or high-density polymer spacers slide over the cylinder before the nut is applied, artificially increasing the panel thickness to consume the excess threading and ensuring the cam arm pulls the door tightly against the frame without bottoming out the nut.
What Happens When Measurements Go Wrong?
When measurements go wrong, industrial cabinets suffer from loose doors, moisture ingress, and compromised structural security. Incorrect barrel lengths specifically cause the cam arm to either dig into the frame or fail to engage the strike plate entirely.
The consequences of improper measurement extend far beyond the minor inconvenience of returning a batch of hardware. In harsh industrial environments, a poorly fitted lock jeopardizes the operational integrity of the entire internal system. If the barrel length is too long, the door cannot be pulled tight against its weather seals, allowing wind-driven rain, corrosive salt spray, and conductive dust to infiltrate the enclosure and destroy sensitive electronic components. If the barrel is too short, the cam arm will scrape against the interior frame, eventually stripping the threads or bending the cam itself under forced rotation. As a premier manufacturer, ForndLock has witnessed firsthand the catastrophic financial and operational impacts of estimation over precision. We frequently consult with OEM clients who have experienced total system failures simply because their procurement teams did not understand how to measure cam lock barrel length for cabinet replacement accurately.
Why Did The Enclosure Installation Fail?
The installation failed because the client utilized a generic lock with a barrel length that was two millimeters too short for their double-walled cabinet design. This prevented the cam from fully rotating into the locked position, leaving the outdoor equipment vulnerable.
A recent, highly illustrative project case study involves a prominent German telecommunications equipment manufacturer tasked with outfitting a nationwide network of outdoor 5G server cabinets. The OEM client's procurement team assumed that standard commercial measurements could be applied to their specialized, heavy-duty enclosures. They sourced a massive batch of generic locks from an unverified supplier without physically measuring the extracted components from their prototype units. The critical problem emerged during the final assembly phase: the industrial double-walled aluminum panels were significantly thicker than standard sheet metal. The generic locks possessed a barrel length that was exactly two millimeters too short. Consequently, when the technicians attempted to secure the doors, the cam arms struck the interior frame prematurely and could not rotate the full ninety degrees into the locked position. The doors remained slightly ajar, and the entire production run failed its mandatory IP65 waterproof testing, halting the 5G rollout and threatening millions of euros in contract penalties.
How Did ForndLock Solve This Issue?
ForndLock solved this issue by guiding the client's engineering team through our rigorous measurement protocol to determine the exact required dimensions. We then manufactured a custom batch of extended-barrel locks that perfectly accommodated the double-walled thickness.
Quarter Turn Cam Lock with Key | Vending Machine & ATM Cabinet Lock Cylinder Manufacturer
Facing a critical production bottleneck, the German manufacturer contacted ForndLock for an emergency intervention. Our technical team immediately halted their guesswork and implemented our strict measurement protocols, instructing their engineers on the precise methodology for a complex cabinet replacement scenario. Using digital calipers, we identified the exact effective length required to traverse the double-walled aluminum while leaving just enough clearance for the sealing gasket compression. Utilizing this precise data, ForndLock rapidly prototyped and manufactured a custom batch of high-security locks featuring an extended barrel length specifically calibrated for their enclosures. The result was an irreplaceable experimental conclusion: off-the-shelf hardware universally fails in 5G outdoor cabinets without precise barrel length calibration. The custom ForndLock hardware achieved a perfect, watertight seal, allowing the cabinets to easily pass all environmental testing and saving the client from an exceedingly expensive total enclosure redesign.
How To Request Custom Manufacturer Solutions?
You can request custom manufacturer solutions by sending your precise measurements, panel thickness data, and project blueprints directly to our engineering team. Partnering with a dedicated manufacturer ensures your hardware meets the exact tolerances required for your industrial application.
Mastering How To Measure Cam Locks is just the foundational first step in securing your industrial infrastructure; sourcing a manufacturer capable of executing those precise requirements is the ultimate solution. Standard inventory often falls short of the exact tolerances demanded by specialized enclosures, server racks, and heavy machinery. As your dedicated manufacturing partner, ForndLock possesses the advanced machining capabilities and engineering expertise to produce custom barrel lengths, customized cylinder diameters, and specialized cam arms based strictly on your unique cabinet replacement needs. We do not rely on approximations; we build to the exact millimeter your project dictates. We invite engineers, procurement managers, and OEM clients to streamline their hardware sourcing by communicating directly with our factory experts. To send your project requirements, technical drawings, sample requests, or custom manufacturing needs, please reach out via email to: [email protected]. Let ForndLock engineer the perfect fit for your next industrial project.
