Flush Mounted Hinges: Types, Applications and Manufacturer Selection Guide

Industrial equipment doors often require low profile installation, reduced external projection, limited installation space and reliable door movement over long service life. Flush mounted hinges address these requirements by allowing the hinge body to sit within or below the door and frame surface, rather than projecting outward from the equipment enclosure. At ForndLock, we work with flush mounted hinges, industrial flush mounted hinges and related enclosure hinges across electrical cabinets, control cabinets, machinery panels and industrial boxes where a compact hinge profile matters as much as mechanical reliability.

A lower profile alone does not make a hinge suitable for a given application. We evaluate flush mounted hinges based on door weight, installation structure, mounting method, material and operating environment rather than selecting hinges only by appearance. This guide walks through what flush mounted hinges are, how they differ from surface mounted hinges, the main types available, where they are applied, and how to select both the right hinge and a manufacturer capable of supporting a specific project.

What Is a Flush Mounted Hinge?

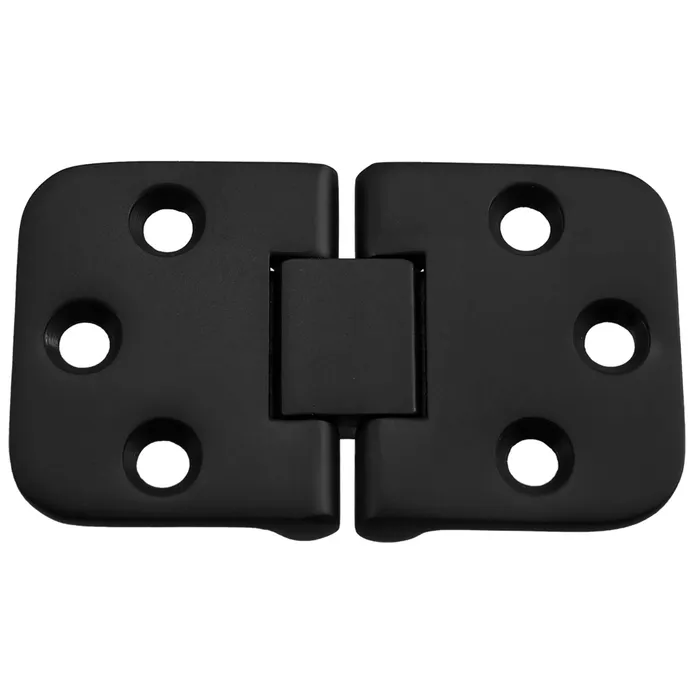

A flush mounted hinge is a hinge whose knuckle and leaves are installed within or below the surface of the door and frame, reducing the hinge profile that extends outward from the equipment surface.

Instead of sitting entirely on top of the panel surface, a flush mounted hinge is set into a recess, mortise or matched cutout on the door leaf and frame leaf. This allows the door and frame to sit closer together when closed, reducing the gap and the amount of hardware visible from outside the enclosure.

The basic structure of a flush mounted hinge typically includes:

· Door leaf – the portion fixed to the door panel

· Frame leaf – the portion fixed to the equipment frame or enclosure body

· Hinge pin – the rotating axis connecting both leaves

· Knuckle – the joint section where the leaves interlock around the pin

· Mounting holes – used for screw, bolt or weld-on installation

In operation, the door leaf rotates around the hinge pin while the frame leaf remains fixed, allowing the door to swing open and closed while the hinge body remains largely contained within the panel structure.

It is important to clarify that flush mounted does not always mean completely hidden. Depending on door thickness, recess depth and knuckle design, part of the hinge knuckle may remain visible along the door edge even after installation. The actual degree of concealment depends on the specific door structure, not on the hinge type alone. This is one reason we recommend reviewing door drawings before assuming a flush mounted hinge will fully disappear into the panel line.

How Do Flush Mounted Hinges Differ From Surface Mounted Hinges?

Flush mounted hinges sit within the door or frame surface for a lower profile, while surface mounted hinges attach externally for simpler installation and easier maintenance access.

Both hinge types serve the same basic function of supporting door rotation, but they differ in installation method, appearance and serviceability. Understanding this distinction helps clarify why one type may fit a given enclosure design better than the other.

Flush mounted hinges are generally selected when external projection needs to be minimized, either for design reasons or because adjacent equipment leaves limited clearance around the door edge. Surface mounted hinges remain a practical choice where installation speed and maintenance access are higher priorities than a compact profile. Neither type is inherently superior; the right choice depends on the door structure, available space and how frequently the hinge needs to be inspected or serviced.

What Types of Flush Mounted Hinges Are Available?

Flush mounted hinges are commonly available as recessed flush hinges, heavy duty flush hinges, stainless steel flush hinges and flush lift-off hinges, each suited to different structural and environmental requirements.

What Are Recessed Flush Hinges?

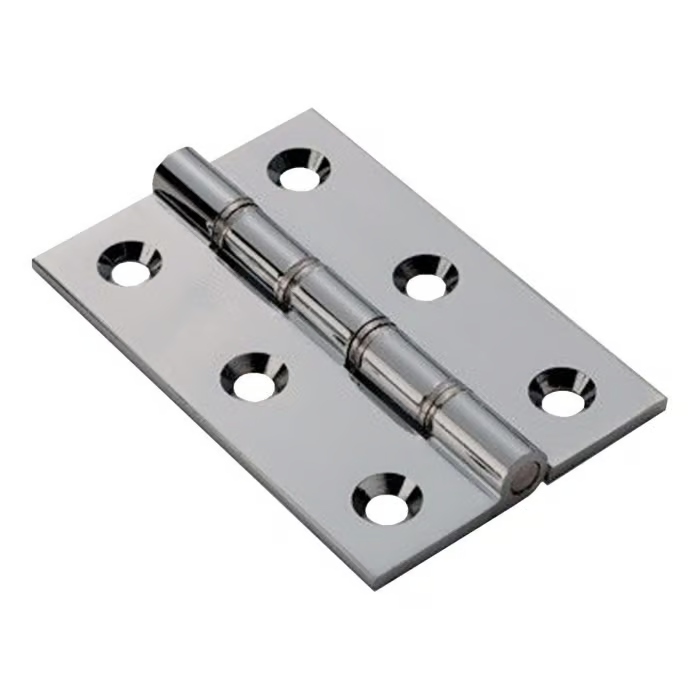

Recessed flush hinges are designed for low-profile installation where the hinge body sits within a machined recess in the door or frame. This design reduces the gap between door and frame when closed and limits how far the hinge protrudes from the panel surface. Recessed flush hinges are generally suited to enclosure doors where a compact appearance and minimal external projection are priorities, provided the panel structure can accommodate the required recess depth.

What Are Heavy Duty Flush Hinges?

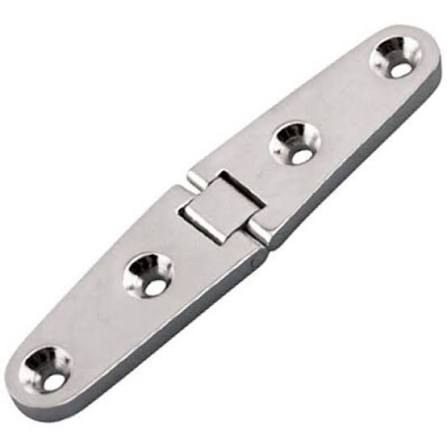

Heavy duty flush hinges are built with thicker leaves and larger pins to support heavy doors and large equipment panels under sustained load. When evaluating heavy duty flush hinges, we pay attention to pin size, leaf thickness and mounting strength, since these factors determine how much load the hinge can carry over repeated opening cycles without excessive wear at the knuckle or mounting points. Heavy duty flush hinges are typically considered for doors carrying mounted components, thick metal panels, or equipment enclosures subject to frequent access.

What Are Stainless Steel Flush Hinges?

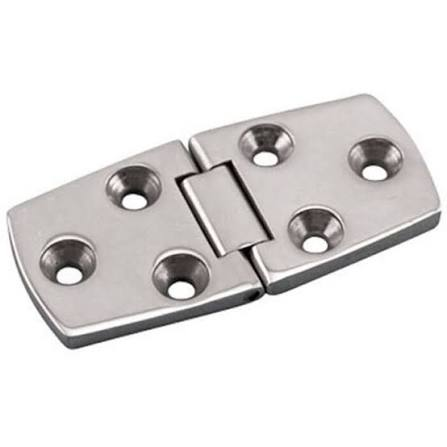

Stainless steel flush hinges are selected for outdoor, humid or corrosive environments where corrosion resistance directly affects long-term hinge performance. In applications exposed to moisture, chemical residue or coastal air, standard steel hinges may develop surface corrosion that affects pin movement and leaf strength over time. Stainless steel flush hinges are one option for reducing this risk, though the specific grade and surface finish should still be matched to the actual exposure conditions of the installation site.

What Are Flush Lift-Off Hinges?

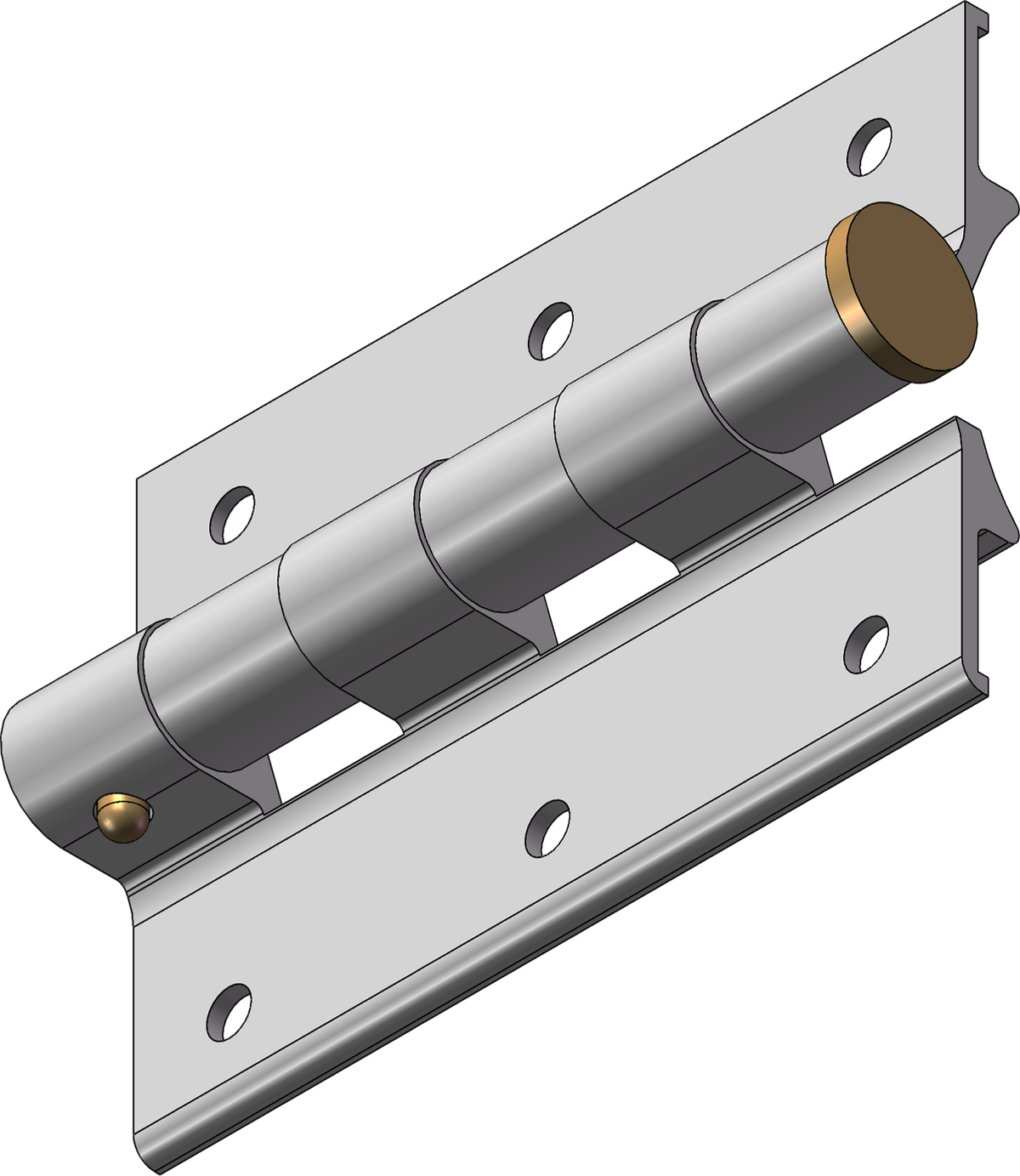

Flush lift-off hinges allow the door to be lifted off the pin without removing hardware, which supports maintenance access and removable equipment doors. This design is useful where doors need to be periodically detached for cleaning, component replacement or full enclosure access, since it avoids unscrewing the entire hinge assembly each time the door needs to come off.

Where Are Flush Mounted Hinges Used in Industrial Equipment?

Flush mounted hinges are used across electrical cabinets, industrial enclosures, control cabinets, outdoor equipment cabinets and transportation equipment where low profile and reliable door movement are required.

Rather than simply listing industries, it is worth looking at why each application drives specific hinge considerations.

Why Do Electrical Cabinets Need Flush Mounted Hinges?

Electrical cabinets typically require flush mounted hinges to maintain a compact enclosure profile while supporting doors that carry electrical components. Door weight can increase significantly when switches, indicators or wiring channels are mounted directly on the door panel, so hinge selection needs to account for this added load rather than treating the door as a bare panel. The hinge also needs to work with any door seal or gasket structure without interfering with cabinet closure.

ForndLock Hinge Product Range

Why Do Industrial Equipment Enclosures Need Flush Mounted Hinges?

Industrial equipment enclosures often need flush mounted hinges to fit within limited panel space while still supporting repeated door movement. Enclosure doors are frequently opened and closed during routine inspection or servicing, so hinge wear resistance and mounting strength become relevant even when the door itself is not particularly heavy.

Why Do Control Cabinets Need Flush Mounted Hinges?

Control cabinets frequently require flush mounted hinges because internal component layout leaves limited clearance for external hinge projection. Where control panels, terminals or wiring ducts are positioned close to the door edge, a hinge with excessive external projection can interfere with internal layout or adjacent equipment, making a lower profile hinge more practical.

Why Do Outdoor Equipment Cabinets Need Flush Mounted Hinges?

Outdoor equipment cabinets generally require flush mounted hinges made from corrosion-resistant materials to withstand weather exposure over time. Beyond material selection, outdoor installations also need to account for how recess design affects water drainage around the hinge area, since standing moisture in a recess can accelerate corrosion regardless of hinge material.

Why Does Transportation Equipment Need Flush Mounted Hinges?

Transportation equipment often uses flush mounted hinges to reduce protruding hardware that could interfere with adjacent panels or vibration-prone structures. In these applications, mounting strength and resistance to loosening under vibration are typically as important as the low-profile benefit itself.

How Do You Select the Right Flush Mounted Hinges?

Selecting the right flush mounted hinges requires evaluating door weight, installation space, mounting method, material, opening angle and installation accuracy together, not as isolated factors.

Our engineering team reviews these factors together when evaluating a customer's drawing, since a hinge that looks correct on one dimension can still be unsuitable if another requirement is overlooked.

How Does Door Weight Affect Hinge Selection?

Door weight affects hinge selection because load capacity depends not only on hinge size but also on door size, mounted accessories and how load is distributed across hinge points. A door with components such as displays, switches or ventilation panels can weigh considerably more than its bare panel dimensions suggest. Load distribution across two, three or more hinge points also changes how much stress each individual hinge needs to carry, which is why hinge count and spacing matter alongside hinge size.

How Does Recess Depth Affect Hinge Selection?

Recess depth affects hinge selection because available installation space, door thickness and frame structure determine whether a flush mounted hinge can be properly seated. If the recess is too shallow for the hinge knuckle, the door may not close fully or may bind during rotation. If the door panel itself is too thin, additional reinforcement may be needed around the recess area to maintain mounting strength. Frame structure at the hinge location also needs enough material thickness to hold fasteners securely.

Which Mounting Method Should You Choose?

The right mounting method depends on structural requirements, comparing screw mounted, weld-on and bolt mounted options for strength and serviceability. Screw mounted hinges are generally easier to install and replace but rely on the surrounding panel material holding thread engagement over time. Weld-on hinges can offer stronger structural integration for heavier doors but are more difficult to replace if damaged. Bolt mounted hinges sit between these two options, offering secure attachment while still allowing removal for maintenance.

Which Material Is Right for Your Hinge?

The right hinge material depends on load, operating environment and corrosion requirements, typically narrowed down among stainless steel, steel and zinc alloy. Stainless steel is generally considered where corrosion resistance is a priority, steel is often selected for higher load applications where corrosion exposure is limited, and zinc alloy may be suitable for lighter-duty applications where cost and moderate corrosion resistance are balanced. Material selection should always be reviewed against the actual environment the equipment will operate in, rather than assumed from general application category alone.

How Much Opening Angle Do You Need?

The required opening angle depends on adjacent components and how far the door needs to move for full access or clearance. A hinge that allows only ninety degrees of rotation may be sufficient for routine inspection but insufficient if a component needs to be removed through the door opening. Adjacent panels, brackets or equipment should be checked against the intended opening angle to confirm the door will clear them without obstruction.

Why Does Door Alignment Matter for Hinges?

Door alignment matters because incorrect installation accuracy can lead to door sagging, uneven loading and premature hinge wear. In practice, we have seen installation issues arise from wrong hinge positioning relative to the door center of gravity, insufficient mounting strength at the frame leaf, and incorrect material selection for the operating environment. These are structural and installation issues rather than isolated product defects, and they typically become apparent only after repeated door cycles rather than immediately after installation. This is why alignment checks during installation are as important as selecting the correct hinge specification.

What Are Common Flush Mounted Hinge Selection Mistakes?

Common flush mounted hinge selection mistakes include choosing hinges based only on appearance, ignoring door weight, overlooking recess depth, and using an unsuitable material or weak mounting structure.

These mistakes are rarely caused by a single factor. In most cases, a hinge failure traces back to a mismatch between the hinge specification and the actual door structure, load or environment, rather than a defect in the hinge itself. Reviewing these points early in the design stage generally avoids rework after installation.

How Should You Install and Maintain Flush Mounted Hinges?

Flush mounted hinges should be installed with confirmed mounting dimensions and alignment checks, then maintained through periodic fastener, wear and corrosion inspections.

What Should You Check During Installation?

During installation, mounting dimensions, alignment, panel reinforcement and complete door movement should all be verified before the equipment is put into service. Confirming mounting dimensions against the actual hinge and recess prevents mismatches that only become obvious once the door is loaded. Checking alignment at this stage, rather than after full assembly, makes adjustments easier. Where door panels are thin, reinforcing the mounting area helps distribute load more evenly. Finally, testing the complete door movement through its full opening range confirms there is no binding or interference before the equipment leaves the installation stage.

What Should You Check During Maintenance?

Routine maintenance should include checking fasteners, inspecting hinge wear, checking for corrosion and verifying that door alignment has not shifted over time. Fasteners can loosen gradually under repeated door movement or vibration, and periodic tightening checks help maintain mounting strength. Visual inspection of the knuckle and pin area can reveal early wear before it affects door movement. Corrosion checks are particularly relevant for outdoor or humid installations, and alignment verification helps catch sagging before it becomes severe enough to affect door sealing or closure.

How Do You Choose a Reliable Flush Mounted Hinge Manufacturer?

Choosing a reliable flush mounted hinge manufacturer means evaluating engineering support, customization capability, manufacturing capability, prototype validation and production consistency together.

At ForndLock, we structure our evaluation process around these five areas when reviewing a new hinge project, since each one affects whether a hinge specification will actually perform as intended once installed.

What Engineering Support Should a Manufacturer Provide?

A manufacturer should provide drawing review, application analysis and hinge recommendation as part of basic engineering support. Reviewing door drawings before production helps identify potential issues with recess depth, mounting hole placement or load distribution before they become physical problems on finished parts.

What Customization Capability Should You Expect?

Customization capability typically covers custom dimensions, mounting hole configuration, special materials and surface finish options. Standard hinge dimensions do not always match every enclosure design, so the ability to adjust leaf size, hole spacing or pin diameter to fit an existing panel structure is often necessary for industrial applications rather than furniture-style hardware.

What Manufacturing Capability Should a Manufacturer Have?

Core manufacturing capability generally includes metal forming, CNC machining, surface treatment and assembly processes. These capabilities determine whether a manufacturer can produce hinges to the required dimensional tolerance, apply the appropriate surface treatment for the intended environment, and assemble components consistently across a production run.

Why Does Prototype Validation Matter?

Prototype validation matters because it allows sample fitting and design adjustment before committing to full production. Testing a prototype hinge against the actual door and frame structure can reveal fitment issues that are difficult to predict from drawings alone, particularly around recess tolerances and opening angle clearance.

How Is Production Consistency Maintained?

Production consistency is maintained through dimension control, surface quality checks and batch-to-batch consistency monitoring. Consistency across production batches matters for projects involving multiple identical doors or cabinets, where even small dimensional variation between hinges can create alignment differences across units. It is worth noting that actual field performance still depends on how a hinge is installed and used in a specific project, so results should be verified against real operating conditions rather than assumed from general specifications alone.

How Does ForndLock Support Custom Flush Mounted Hinge Projects?

At ForndLock, we support custom flush mounted hinge projects through drawing review, structure evaluation, material recommendation, custom development, prototype validation and production support.

When a customer approaches us with a door or enclosure design, our process generally follows these steps:

· Drawing review to understand door structure, recess space and mounting points

· Structure evaluation to assess load distribution and installation constraints

· Material recommendation based on load and environmental exposure

· Custom development for dimensions, mounting holes or finish requirements outside standard configurations

· Prototype validation to confirm fitment before full production

· Production support to maintain dimension and surface quality across the order quantity

To support this process, we typically ask customers to share door drawings, door weight, dimensions, material requirements, application environment and order quantity. Sharing these details with our engineering team allows for a more accurate hinge recommendation than relying on generic specifications, since even hinges with the same nominal size can behave differently depending on how they are mounted and loaded in a specific enclosure.

What Should You Remember When Choosing Flush Mounted Hinges?

Choosing flush mounted hinges requires weighing installation space, door weight, load distribution, material and mounting structure against the operating environment, while manufacturer selection depends on engineering capability, customization and manufacturing consistency.

Selecting flush mounted hinges for industrial equipment doors is not a matter of picking a low-profile design and assuming it will fit every application. It involves reviewing installation space, door weight, load distribution, material compatibility, mounting structure and the operating environment as connected factors rather than separate checkboxes. Equally, selecting a manufacturer for industrial flush mounted hinges, heavy duty flush hinges or stainless steel flush hinges should focus on engineering capability, customization support and manufacturing consistency, since these determine whether a hinge specification translates into reliable performance once installed on an actual door.

As industrial enclosure designs continue to move toward more compact and integrated layouts, flush mounted hinges are likely to remain a common choice for electrical cabinets, control cabinets and equipment enclosures where reduced external projection matters. Selection decisions should continue to be based on actual structural drawings, door weight data and environmental conditions rather than visual impression alone, with final performance confirmed through project-specific validation rather than general assumptions.
