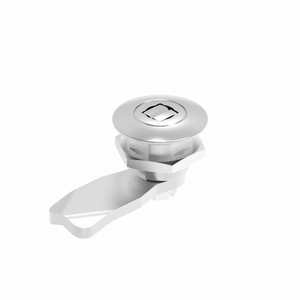

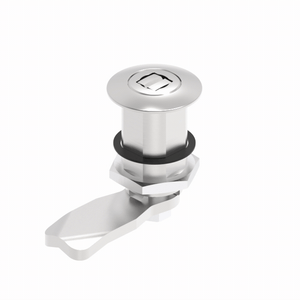

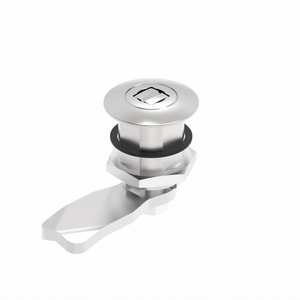

D4-1423 Dustproof Safety Lock
This is a SUS304 push-down safety cam lock, designed with a dust cover and sliding sleeve limit structure. In the locked state, the lock body cannot be directly rotated open; the sliding sleeve must first be pushed down to release the limit, allowing the lock cylinder to be rotated with a tool or key to unlock the rear cam. This structure effectively reduces the risks of vibration loosening, misoperation, and dust intrusion, making it suitable for railway equipment cabinets, engineering machinery maintenance doors, outdoor electrical enclosures, communication cabinets, generator sets, energy storage cabinets, and doors of various equipment in vibrating environments. The product has an IP65 protection rating and is made of SUS304 stainless steel.
- Hole Size: M22*20mm
- Material: Stainless Steel
- Protection Rating: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Railway Equipment Cabinet, Engineering Machinery Maintenance Door, Generator Set Door, Outdoor Electrical Enclosure, Communication Cabinet, Energy Storage Cabinet, Vehicle Equipment Compartment Door.

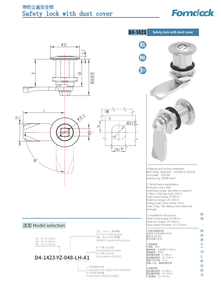

Detailed Specifications
| Image | Model | Lock Body Length | Lock Cylinder Specification | Locking L&H | Material | Download |
|---|---|---|---|---|---|---|
| D4-1423-18-037-LH-A1 | GH18 | 7mm triangular belt groove | Locking L&H Custom | SUS304 | ||
| D4-1423-18-048-LH-A1 | GH18 | 8mm Square with Slot | Locking L&H Custom | SUS304 | ||
| D4-1423-30-037-LH-A1 | GH30 | 7mm triangular belt groove | Locking L&H Custom | SUS304 | ||
| D4-1423-30-048-LH-A1 | GH30 | 8mm Square with Slot | Locking L&H Custom | SUS304 | ||
| D4-1423-38-037-LH-A1 | GH38 | 7mm triangular belt groove | Locking L&H Custom | SUS304 | ||
| D4-1423-38-048-LH-A1 | GH38 | 8mm Square with Slot | Locking L&H Custom | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping costs can be covered by you.
Does ForndLock offer OEM/ODM customization for safety right angle locks?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for safety right-angle locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restriction.
What Industrial Equipment is the Safety Right Angle Lock Suitable For?
The Safety Right Angle Lock is primarily used in industrial equipment that requires high locking reliability, including railway equipment cabinets, engineering machinery maintenance doors, outdoor electrical enclosures, communication cabinets, energy storage equipment cabinets, generator sets, and vehicle equipment hatches. Its downward pressure unlocking mechanism reduces the risk of accidental opening in vibrating environments, making it suitable for long-term operation in industrial equipment door applications.
What lock cylinders and operation methods are supported by the safety right-angle lock?
This series supports various lock cylinder configurations, including 7mm triangular groove lock cylinders and 8mm square groove lock cylinders. It allows for tool access or key operation modes based on equipment management requirements, meeting the access control needs of different industrial equipment.
