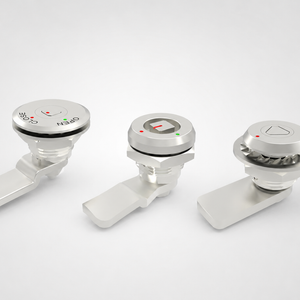

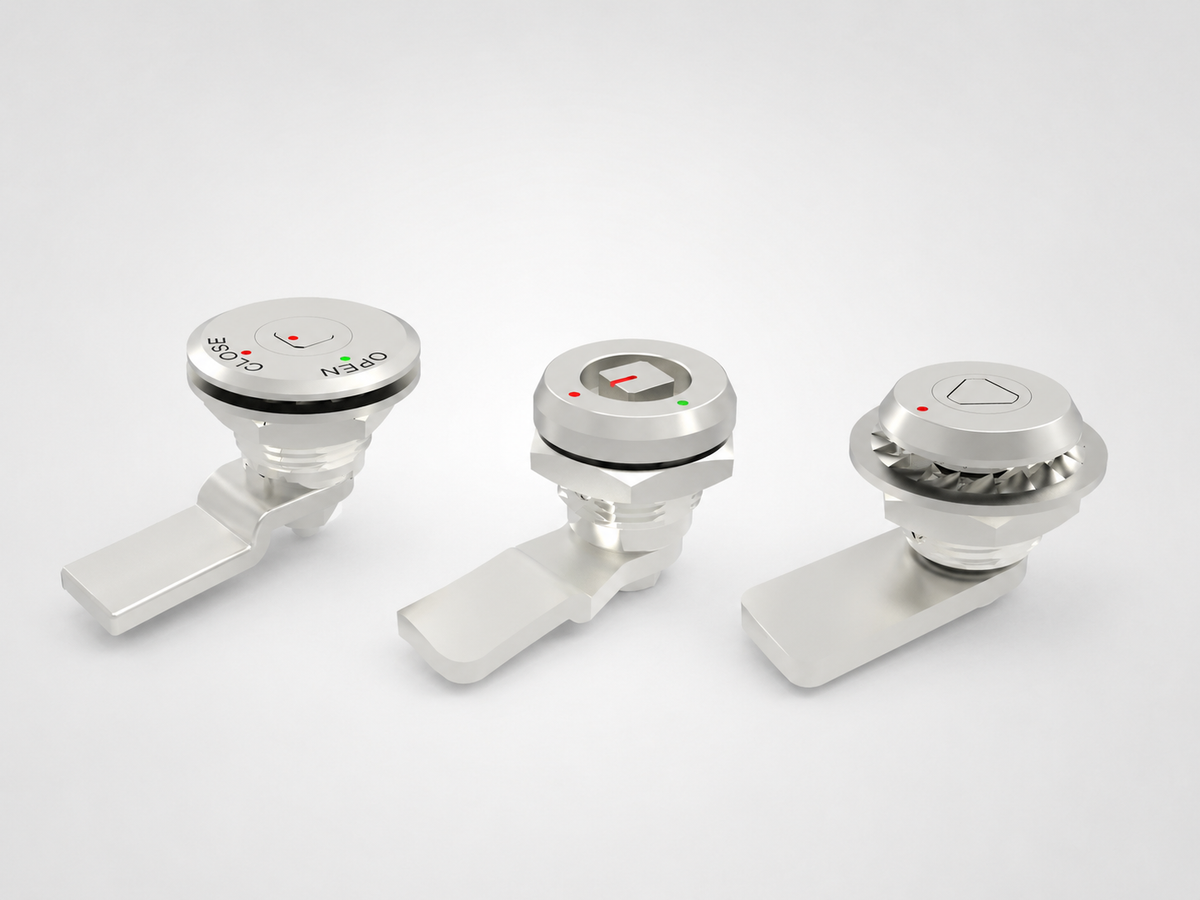

Designed for industrial cabinets, power enclosures, communication panels, and outdoor control boxes, these tool-driven quarter-turn cam latches secure doors and covers with a 90° rotation. Compatible with triangular, square, or slotted drives, their compact design fits narrow panels while preventing accidental opening. Available in multiple drive types, tongue configurations, and optional IP65-rated waterproof, dustproof, and anti-vibration designs, this series meets the safety and maintenance requirements of electrical, rail, communication, and industrial automation equipment. Features: 90° rapid rotation for easy access Supports triangular, square, and slotted drives Compact structure for thin panel installation Optional waterproof, dustproof, and anti-vibration protection Suitable for power cabinets, communication cabinets, and industrial enclosures Flexible tongue and installation size options
Quarter turn cam latches operate by rotating the insert 90° to lock the cam behind the enclosure flange, providing secure mechanical retention without secondary keying. Unlike generic cam locks, industrial cam latch mechanisms are engineered to ensure consistent compression, resistance against vibration‑induced loosening, and minimal installation error. Embedded detent features provide tactile feedback at end‑stop positions, crucial in mission‑critical panels where actuation confirmation matters.
Functional components: housing body, insert driver, cam arm, nut retention, gasket sealing layer, optional padlock pass‑through.
Key parameters: rotation torque, contact force, mechanical life cycles, vibration ratings (DIN EN 61373 compliance).
Engineering insight: the insertion depth and cam geometry directly influence clamping force on door frames; ForndLock’s precision‑machined profiles ensure optimized rotation torque curves tailored for enclosure thickness and profile type.
Industrial quarter turn latch performance hinges on material selection and surface finishing, especially where long service life and environmental sealing matter. For corrosion‑intensive environments including coastal, chemical, or wash‑down zones, stainless steel alloys such as 316 deliver superior resistance to chloride pitting vs standard 304. Zinc alloys with advanced passivation can balance cost vs environmental demands when stainless isn’t mandated.
Material | Corrosion Resistance | Typical Use | Surface Options |
|---|---|---|---|
Stainless 316 | Excellent | Marine / chemical plants | Passivated / polished |
Stainless 304 | Very Good | Indoor/outdoor general | Mirror / brushed |
Zinc Alloy | Moderate | Dry industrial | Chrome / powder‑coat |
Brass | Good | Panel locks / cabinetry | Polished / plating |
A high security quarter turn lock isn’t solely about material strength — it encompasses mechanical resistance to tampering, vibration resilience, and anti‑rotation characteristics. Designs that integrate DIN EN 61373 vibration resistance endure shock loads typical in transportation, railway, or mobile machinery applications.
ForndLock engineers collaborate with OEM partners on tailored cam profiles, shaft extensions, and handle configurations to align with specific design constraints. Unlike one‑size catalogs, custom quarter turn latch solutions integrate precise cut‑out templates, torque‑optimized cams, and OEM‑specified finishes.
Real‑world deployment of industrial cam latches spans:
Telecommunications cabinets — demanding IP65 protection and vibration resilience
Railway rolling stock panels — high shock environment
Energy distribution enclosures — locking under load conditions
Medical/IT equipment access doors — hygiene‑critical finishes and secure access
Each application requires tailored specification checks — ForndLock provides engineered installation guides matching these domain requirements.
Elevate your system design with engineered 1/4 turn cam latches and high security quarter turn lock solutions backed by robust testing and customization capabilities. Engage with our technical team to receive tailored CAD packs, RFQ support, and engineering consultancy — from prototype to global delivery — without generic specs holding back your project momentum.
A 1/4 turn cam latch secures a door by rotating an internal cam 90°, engaging behind the frame. The compact motion simplifies enclosure locking while delivering mechanical retention.
High security quarter turn locks integrate anti‑vibration features, tamper‑resistant insert profiles, and mechanical resistance beyond basic cam rotation, ideal for demanding industrial environments.
Focus on door thickness, cut‑out tolerance, gasket sealing, and torque specifications to achieve optimal sealing and mechanical engagement.
Yes — ensure the replacement matches existing cut‑outs and torque chain requirements; custom solutions are often used when geometry differs.
Custom engineering is available, including cam profile adjustments, insert options, and OEM‑specific finishes.
