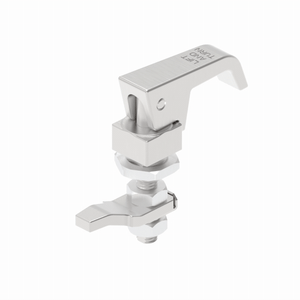

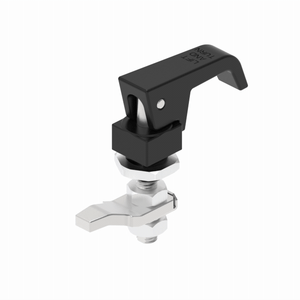

A-1545 Light Lift Compression Lock
This is a zinc alloy lift and turn lever compression lock that features a "Lift and Turn" operation structure. The rear lock tongue allows for adjustable locking distance. Once closed, the compression structure pulls the door panel inward, reducing looseness, vibration, and noise. It is suitable for applications such as industrial equipment doors, cabinet doors, electrical enclosure doors, vehicle equipment doors, air compressors, generator sets, and maintenance doors. This product can be finished with a black powder coating or silver chrome plating, making it ideal for industrial projects that require cost-effectiveness, operational convenience, and effective compression.
- Material: Die-Cast Zinc/SUS304
- Protection Level: IP65
- Mounting Method: Adjustable Spacing
- Application Scenarios: Industrial Equipment Doors, HVAC Cabinets, Electrical Enclosures, Communication Cabinets, Vehicle Equipment Doors, Air Compressors.
Detailed Specifications
| Image | Model | Spacing Range | Material and Surface Treatment | Download |
|---|---|---|---|---|
| A-1545-1-30 | Reverse (42~52mm) | Chrome Plating | ||
| A-1545-1-40 | Reverse (42~52mm) | Powder Coated Matte Black | ||
| A-1545-1-A1 | Reverse (42~52mm) | SUS304 | ||
| A-1545-2-30 | Forward (2~12mm), Reverse (32~42mm) | Chrome Plating | ||
| A-1545-2-40 | Forward (2~12mm), Reverse (32~42mm) | Powder Coated Matte Black | ||
| A-1545-2-A1 | Forward (2~12mm), Reverse (32~42mm) | SUS304 | ||
| A-1545-3-30 | Forward (12~22mm), Reverse (22~32mm) | Chrome Plating | ||
| A-1545-3-40 | Forward (12~22mm), Reverse (22~32mm) | Powder Coated Matte Black | ||
| A-1545-3-A1 | Forward (12~22mm), Reverse (22~32mm) | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for customers, but we hope that the shipping costs can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
Where is this lock mainly used?
Mainly used for industrial equipment doors, cabinet doors, electrical enclosures, communication cabinets, vehicle equipment doors, air compressors, generator sets, toolboxes, and maintenance doors. It is suitable for scenarios that require clamping the door panel, reducing vibration loosening, and minimizing noise.
Is this lock suitable for equipment with high vibration?
Suitable. The compression lock tightens the door panel after closing, reducing looseness, noise, and shaking of the door panel during the operation of air compressors, generator sets, vehicles, and construction machinery.
What is the difference between it and a regular cam lock?
The standard turn latch lock primarily uses a rotating latch tongue to block the door frame; this model features a lift lever compression latch that pulls the door panel inward when closed, ensuring a more stable fit of the sealing strip and improved vibration resistance.
