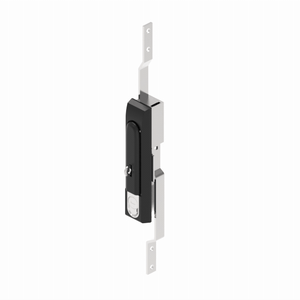

A-1234-3001 Multi-Point Rod Lock
This is a zinc alloy multi-point linkage rotary handle lock featuring a flush long panel design, achieving multi-point synchronous locking with the upper and lower linkages. The product can accommodate a padlock for on-site locking management; simultaneously, pressing the lock cylinder allows the handle to automatically pop out for easy operation. It is suitable for cabinet door systems requiring multi-point locking, such as electrical enclosures, control cabinets, communication cabinets, equipment cabinets, and distribution cabinets.
- Material: Zinc Alloy
- Configuration: Optional Padlock
- Protection Rating: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosure, Outdoor Control Cabinet, Communication Cabinet, Distribution Cabinet, Industrial Equipment Cabinet, Generator Door, Energy Storage Cabinet.
Detailed Specifications
| Image | Model | Locking Method | With Hook | Surface Treatment | Download |
|---|---|---|---|---|---|
| A-1234-3001-40 | 3 Point Linkage | Without padlock | Powder Coated Matte Black | ||
| A-1234-3011-40 | 3 Point Linkage | Padlock Compatible | Powder Coated Matte Black | ||
| A-1234-3001-50 | 3 Point Linkage | Without padlock | Matte Silver Paint | ||
| A-1234-3011-50 | 3 Point Linkage | Padlock Compatible | Matte Silver Paint |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, and equipment maintenance doors. It is particularly well-suited for lightweight cabinets and general industrial applications.
What is the biggest feature of this product?
This product's main feature is its lightweight plastic structure combined with a single-point rotary handle locking mechanism. Compared to standard single-point handle locks, it emphasizes portability, dust resistance, and ease of daily operation.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly condition.
What is the function of a padlock feature?
The padlock function can enhance external locking on the existing closure, suitable for maintenance tagging, access management, prevention of accidental opening, and unauthorized access in industrial applications.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a foundation for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
