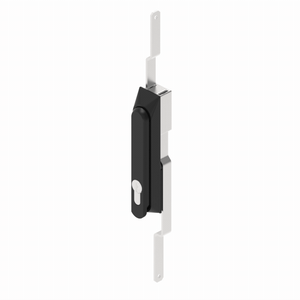

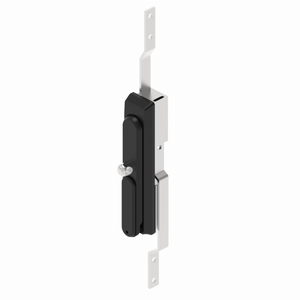

A-1200-3P Multi-Point Rod Lock
This is a zinc alloy multi-point linkage rotary handle lock featuring a flush long panel design, which works with upper and lower linkages to achieve multi-point synchronous locking. The product can include a padlock function for on-site locking management; simultaneously, pressing the lock cylinder allows the handle to automatically pop out for easy operation. It is suitable for cabinet door systems requiring multi-point locking, such as electrical enclosures, control cabinets, communication cabinets, equipment racks, and distribution cabinets.
- Material: Zinc Alloy/SUS304
- Configuration: Optional Padlock
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Usage scenarios: electrical enclosures, outdoor control cabinets, communication cabinets, distribution cabinets, industrial equipment cabinets, generator doors, energy storage cabinets.
Detailed Specifications

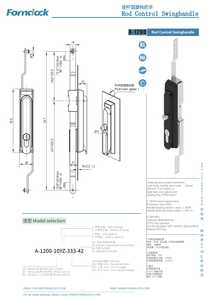

| Image | Model | Locking Method | Dust Cover Included | With Hook | Lock Cylinder Specification | Material and Surface Treatment | Download |
|---|---|---|---|---|---|---|---|
| A-1200-1P11-333-42 | Lock Tongue Type | with dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-1P11-333-A1 | Lock Tongue Type | with dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-1P12-333-42 | Lock Tongue Type | with dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-1P12-333-A1 | Lock Tongue Type | with dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-1P21-333-42 | Lock Tongue Type | Without dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-1P21-333-A1 | Lock Tongue Type | Without dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-1P22-333-42 | Lock Tongue Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-1P22-333-A1 | Lock Tongue Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-3P11-333-42 | Multi-Point Rod Type | with dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-3P11-333-A1 | Multi-Point Rod Type | with dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-3P12-333-42 | Multi-Point Rod Type | with dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-3P12-333-A1 | Multi-Point Rod Type | with dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-3P21-333-42 | Multi-Point Rod Type | Without dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-3P21-333-A1 | Multi-Point Rod Type | Without dust cover | Padlock compatible | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 | ||
| A-1200-3P22-333-42 | Multi-Point Rod Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1200-3P22-333-A1 | Multi-Point Rod Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | SUS304 |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, equipment maintenance doors, and other scenarios. It is particularly well-suited for lightweight cabinets and general industrial applications.
What is the biggest feature of this product?
This product's main feature is its lightweight plastic structure combined with a single-point rotary handle lock. Compared to standard single-point handle locks, it emphasizes convenience, dust resistance, and ease of daily operation.
Can this lock be used for outdoor cabinets?
Can be used for some outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What is the function of a padlock feature?
The padlock function can enhance external locking on top of the existing closure, suitable for maintenance signage locking, access management, prevention of accidental opening, and unauthorized access in industrial applications.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression amount, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
