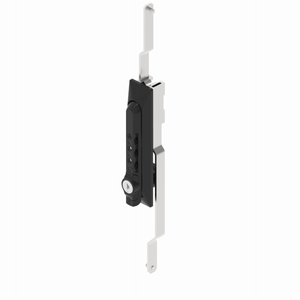

A-1219-3P Combination Multi-Point Rod Lock
This is a Multi-Point Linkage Rotary Handle Lock, featuring an integrated three-position combination code structure. The correct code must be entered before the lock cylinder can be rotated/unlocked and the handle can be turned to open the cabinet door. The product is suitable for applications such as electrical enclosures, distribution cabinets, control cabinets, communication cabinets, and industrial equipment cabinets. The multi-point linkage structure is designed for taller door panels, allowing for vertical locking. The all-nylon construction offers lightweight properties, good insulation, and resistance to general environmental corrosion. Specific protection levels, hole dimensions, rod lengths, and code reset methods must be confirmed according to the drawings.
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, equipment maintenance doors, and other scenarios. It is especially suitable for lightweight cabinets and general industrial applications.
What is the biggest feature of this product?
This product's main feature is its lightweight plastic structure combined with a single-point rotary handle locking mechanism. Compared to standard single-point handle locks, it emphasizes convenience in daily operation, dust resistance, and portability.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What are the differences between plastic and metal materials?
The advantages of plastic material include being lighter, more cost-effective, and easier to integrate in appearance; however, in terms of load-bearing capacity, impact resistance, and high-strength security, it typically does not match that of metal lock bodies. Therefore, it is more suitable for light to medium applications rather than for heavy-duty or high-risk environments.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression amount, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
