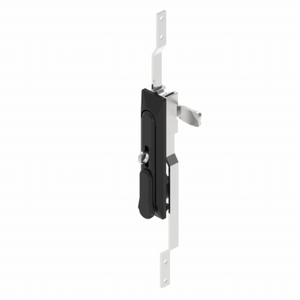

A-1218-3P Multi-Point Link Lock
This is a zinc alloy multi-point linkage rotary handle lock featuring a flush long panel design, which works with upper and lower linkages to achieve multi-point synchronous locking. The product can include a padlock function for convenient on-site locking management; it also comes with a dust cover that effectively protects the lock cylinder or operation area, reducing dust ingress. It is suitable for door systems requiring multi-point locking in electrical enclosures, control cabinets, communication cabinets, equipment cabinets, distribution cabinets, and more.
- Material: Zinc Alloy
- Configuration: Optional Padlock, Optional Dust Cover
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosures, Outdoor Control Cabinets, Communication Cabinets, Distribution Cabinets, Industrial Equipment Cabinets, Generator Doors, Energy Storage Cabinets.

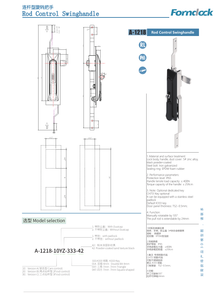

Detailed Specifications
| Image | Model | Locking Method | Dust Cover Included | With Hook | Lock Cylinder Specifications | Surface Treatment | Download |
|---|---|---|---|---|---|---|---|
| A-1218-1P11-333-42 | Lock Tongue Type | Dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-1P12-333-42 | Lock Tongue Type | Dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-1P21-333-42 | Lock Tongue Type | Without dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-1P22-333-42 | Lock Tongue Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-3P11-333-42 | 3 Point Rod Type | Dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-3P12-333-42 | 3 Point Rod Type | Dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-3P21-333-42 | 3 Point Rod Type | Without dust cover | Padlock hasp | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black | ||
| A-1218-3P22-333-42 | 3 Point Rod Type | Without dust cover | Without padlock | K333 (optional double wings 4mm, triangle 7mm, square 7mm) | Powder Coated Textured Black |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, and equipment maintenance doors. It is particularly well-suited for lightweight cabinets and general industrial applications.
What is the biggest feature of this product?
This product's key feature is its lightweight plastic structure combined with a single-point rotary handle lock. Compared to standard single-point handle locks, it emphasizes convenience, dust resistance, and ease of daily operation.
Can this lock be used for outdoor cabinets?
Can be used for certain outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray testing requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What are the differences between plastic materials and metal materials?
The advantages of plastic materials include being lighter, more cost-effective, and easier to integrate aesthetically; however, in terms of load-bearing capacity, impact resistance, and high-strength security, they typically do not match metal lock bodies. Therefore, they are more suitable for light to medium applications rather than heavy-duty or high-risk environments.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a foundation for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression, installation method, and overall cabinet testing; it cannot be determined solely based on the individual lock body.
