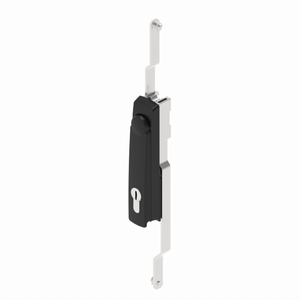

A-1205-3P Multi-Point Link Lock
This is a plastic multi-point rod lock, operated by a rotary handle. It utilizes an internal transmission mechanism to drive the upper and lower rods, achieving synchronized locking of cabinet doors at multiple points. Compared to single-point locks, this product is more suitable for taller cabinet doors and cabinets requiring a more stable locking effect. The product is applicable to electrical enclosures, distribution cabinets, control cabinets, communication cabinets, equipment cabinets, and various types of industrial boxes, featuring lightweight construction, ease of operation, and a wide range of applications.
- Material: Main body PA66+30GF
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Application Scenarios: Electrical Enclosure, Outdoor Control Cabinet, Communication Cabinet, Distribution Cabinet, Industrial Equipment Cabinet, Generator Door, Energy Storage Cabinet.
Detailed Specifications
| Image | Model | Lock Cylinder Type | Locking Method | Download |
|---|---|---|---|---|
| A-1205-1001-40 | Cylinder Lock Cylinder K333 | Lock Tongue Type | ||
| A-1205-3001-40 | Cylinder Lock Cylinder K333 | Multi-Point Rod Type | ||
| A-1205-1P01-40 | European Cylinder Lock K333 | Lock Tongue Type | ||
| A-1205-3P01-40 | European Cylinder Lock K333 | Multi-Point Rod Type |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, equipment maintenance doors, and other scenarios. It is especially suitable for lightweight cabinets and general industrial applications.
What is the difference between this product and a standard single-point lock?
This product is a Multi-Point Rod Lock, designed to work with upper and lower rods to achieve multi-point locking; whereas a standard single-point lock typically secures only one position. For taller cabinet doors, multi-point locking provides greater stability and distributes the load on the door panel more evenly.
Can this lock be used for outdoor cabinets?
Can be used for some outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requires IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly condition.
What are the differences between plastic materials and metal materials?
The advantages of plastic material include being lighter, more cost-effective, and easier to integrate aesthetically; however, in terms of load-bearing capacity, impact resistance, and high-strength security, it typically does not match that of metal lock bodies. Therefore, it is more suitable for light to medium applications rather than heavy-duty or high-risk environments.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a basis for dustproof and waterproof design. However, the specific IP65 / IP66 rating needs to be confirmed in conjunction with the door panel cutout, gasket compression, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
