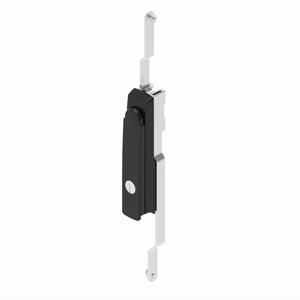

A-1205-30 Multi-Point Rod Lock
This is a multi-point rod lock made of plastic material, operated by a rotary handle. It utilizes an internal transmission mechanism to drive the upper and lower rods, achieving synchronized locking of cabinet doors at multiple points. Compared to single-point locks, this product is more suitable for taller cabinet doors and cabinets requiring a more stable locking effect. The product is applicable to electrical enclosures, distribution cabinets, control cabinets, communication cabinets, equipment racks, and various industrial boxes, featuring lightweight structure, convenient operation, and wide application range.
- Material: Main Body PA66+30GF
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Usage scenarios: electrical enclosures, outdoor control cabinets, communication cabinets, distribution cabinets, industrial equipment cabinets, generator set doors, energy storage cabinets.
Detailed Specifications
| Image | Model | Lock Cylinder Type | Locking Method | Download |
|---|---|---|---|---|
| A-1205-1001-40 | Cylinder Lock Cylinder K333 | Lock Tongue Type | ||
| A-1205-3001-40 | Cylinder Lock Cylinder K333 | Multi-Point Rod Type | ||
| A-1205-1P01-40 | European Cylinder Lock K333 | Lock Tongue Type | ||
| A-1205-3P01-40 | European Cylinder Lock K333 | Multi-Point Rod Type |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Which industries is this lock suitable for?
It is suitable for use in electrical enclosures, control boxes, communication boxes, automation equipment housings, small distribution boxes, functional doors, and equipment maintenance doors. It is particularly well-suited for lightweight cabinets and general industrial applications.
What is the difference between this product and a standard single-point lock?
This product is a Multi-Point Link Lock, which can be combined with upper and lower link rods to achieve multi-point locking; whereas a standard single-point lock typically secures only one position. For taller cabinet doors, multi-point locking provides greater stability and distributes the load on the door panel more evenly.
Can this lock be used for outdoor cabinets?
Can be used for some outdoor cabinet doors, but it is necessary to confirm the protection level, sealing structure, surface treatment, and salt spray test requirements. If the customer requests IP65, IP66, or higher ratings, testing confirmation must be conducted in conjunction with the cabinet door cutouts, gaskets, and overall cabinet assembly status.
What are the differences between plastic and metal materials?
The advantages of plastic materials include being lighter, more cost-effective, and easier to integrate visually; however, in terms of load-bearing capacity, impact resistance, and high-strength security, they typically do not match metal lock bodies. Therefore, they are more suitable for light to medium applications rather than heavy-duty or high-risk environments.
Can this lock achieve IP65 or IP66?
The image shows the structure of the black gasket, which provides a foundation for dustproof and waterproof design. However, the specific IP65 / IP66 rating must be confirmed in conjunction with the door panel cutout, gasket compression, installation method, and overall cabinet testing; it cannot be determined solely based on a single lock body.
