J-1602 Sanitary Bolt

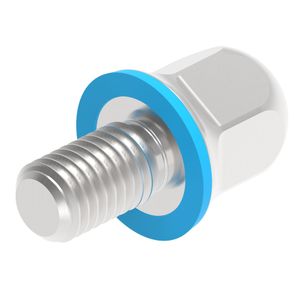

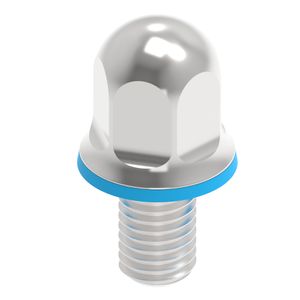

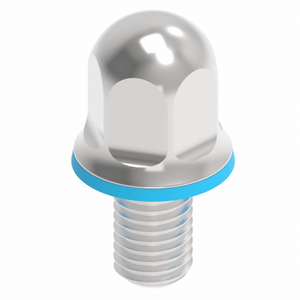

This is a SUS316L hygienic sealed bolt featuring a rounded transition head design that reduces cleaning dead spots and contamination residues. The product is equipped with a blue HNBR sealing ring, which can form a seal at the equipment panel or threaded connection. It is suitable for food machinery, pharmaceutical equipment, dairy equipment, beverage filling lines, meat processing equipment, and high-pressure washing environments. The protection level can reach IP69K, with the specific rating needing to be tested and confirmed based on the installation structure and sealing compression amount.
- Protection Level: IP69K
- Seal Material: HNBR Compliant with FDA Regulations
- Material: SUS316L
- Surface Treatment: Mirror Polishing
- Compliance Standards: Follow sanitary design guidelines such as 3-A, EHEDG, EN 1672-2, and ISO 14159. Use food-safe gaskets that meet FDA standards.
- Application Scenarios: Food Processing Equipment, Pharmaceutical Equipment, Dairy Equipment, Beverage Filling Lines, Meat Processing Equipment, Packaging Machinery, CIP/SIP Cleaning Areas, Cleanroom Equipment.
Detailed Specifications
| Image | Model | Hexagon Width | Thread Standard | Thread Length | Seal Material | Material | Download |
|---|---|---|---|---|---|---|---|
| J-1601-8M-1-L-A2 | 7.9mm | M3x0.5 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1600-8F-1-L-A2 | 7.9mm | 4-48 UNF (Pitch 0.5292) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-8M1-1-L-A2 | 7.9mm | M4x0.7 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-8F1-1-L-A2 | 7.9mm | 8-36 UNF (Pitch 0.7056) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-8M2-1-L-A2 | 7.9mm | M5x0.8 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-8F2-1-L-A2 | 7.9mm | 10-32 UNF (Pitch 0.7938) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-10M-1-L-A2 | 9.9mm | M6x0.75 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-10F-1-L-A2 | 9.9mm | 12-32 UNF (Pitch 0.794) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-13M-1-L-A2 | 12.9mm | M8x1 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-13F-1-L-A2 | 12.9mm | 5/16"-24 UNF (1.058 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-16M-1-L-A2 | 15.9mm | M10x1.25 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-16F-1-L-A2 | 15.9mm | 3/8"-24 UNC (1.058 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1600-18M-1-L-A2 | 17.9mm | M12x1.75 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-18F-1-L-A2 | 17.9mm | 1/2"-13 UNC (1.954 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-24M-1-L-A2 | 23.9mm | M16x2 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-24F-1-L-A2 | 23.9mm | 5/8"-11 UNC (2.3091 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-30M-1-L-A2 | 29.9mm | M20x2.5 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-30F-1-L-A2 | 29.9mm | 3/4"-10 UNC (2.54 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-36M-1-L-A2 | 35.9mm | M24x3 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-36F-1-L-A2 | 35.9mm | 15/16"-9 UNS (2.8222 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-36M1-1-L-A2 | 35.9mm | M27x3 Screw thread | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L | ||
| J-1601-36F1-1-L-A2 | 35.9mm | 1-1/16"-8 UN (3.175 pitch) | Thread length can be customized | Blue Hydrogenated Nitrile Rubber (HNBR) | SUS316L |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by your side.
What industrial equipment are sanitary fasteners mainly used in?
Sanitary fasteners are primarily used in industrial equipment with high requirements for cleanliness, corrosion resistance, and contamination prevention, including applications in food processing machinery, medical devices, pharmaceutical equipment, cleanroom equipment, and stainless steel sanitary structural systems. Their design minimizes the retention of contaminants, meeting installation requirements in high-standard sanitary environments.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restriction.
What is the standard delivery time for sanitary bolts?
Typically 15 to 30 days, depending on customization requirements and order quantity.
How Sanitary Fasteners Improve Equipment Cleanliness?
Sanitary fasteners reduce the accumulation of dust, liquids, and contaminants at connection points through smooth surface treatment, sealed structural design, and optimized profile structure. ForndLock products are made of mirror-polished SUS316L material and equipped with HNBR sealing components, enhancing equipment cleaning efficiency and long-term sealing reliability.
Does ForndLock support custom sanitary fasteners according to drawings or equipment requirements?
Support. ForndLock can provide customized sanitary fastening solutions based on customer drawings, installation dimensions, thread specifications, material requirements, surface treatments, and sealing needs. For equipment manufacturers and engineering projects, comprehensive services from design support to mass production are available.
Can ForndLock provide sanitary-grade fastener samples for testing?
Yes. ForndLock supports providing samples for installation testing, material confirmation, and project evaluation. Customers can verify product dimensions, sealing performance, surface treatment effects, and compatibility with equipment structures before bulk purchasing, reducing project procurement risks.
