B-1309-038 L-Handle Turn Latch Lock
This is an L-Handle Right Angle Rotary Lock with a padlock feature, utilizing a 90° rotary switch structure. The front long handle drives the rear lock tongue to secure and open cabinet doors or equipment doors. The product supports an additional padlock, suitable for equipment access management and preventing accidental openings. It is applicable in scenarios such as electrical cabinets, distribution cabinets, control cabinets, communication cabinets, outdoor equipment boxes, generator doors, and maintenance doors for construction machinery.
- Hole Size: 22*20mm Dual Hole
- Material: Stainless Steel
- Configuration: Triangle 8mm, with padlock
- Protection Level: IP65
- Compliance Standard: REACH No.1907/2006
- Usage scenarios: Outdoor electrical enclosures, control cabinets, European-style box transformers, generator sets, energy storage cabinets.
Detailed Specifications
| Image | Model | Lock Cylinder Specification | Material | Download |
|---|---|---|---|---|
| B-1309-001-A1 | No Lock Cylinder | SUS304 | ||
| B-1309-001-40 | No Lock Cylinder | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-010-A1 | CH751 Key locking | SUS304 | ||
| B-1309-010-40 | CH751 Key locking | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-015-A1 | Double Wing 5mm | SUS304 | ||
| B-1309-015-40 | Double Wing 5mm | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||

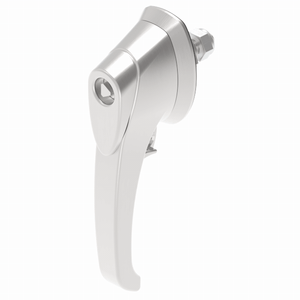

| B-1309-038-A1 | Triangle 8mm | SUS304 | ||

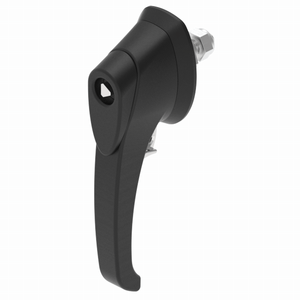

| B-1309-038-40 | Triangle 8mm | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-048-A1 | Square 7mm | SUS304 | ||
| B-1309-048-40 | Square 7mm | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-068-A1 | Hexagon Socket 8mm | SUS304 | ||
| B-1309-068-40 | Hexagon Socket 8mm | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-112-A1 | 2*4mm Straight Slot | SUS304 | ||
| B-1309-112-40 | 2*4mm Straight Slot | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-166-A1 | External Hexagon 6mm | SUS304 | ||
| B-1309-166-40 | External Hexagon 6mm | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1309-268-A1 | Hexagon socket 8mm with pin 3mm | SUS304 | ||
| B-1309-268-40 | Hexagon socket 8mm with pin 3mm | Die-Cast Zinc with Black Coating (Optional Chrome Plating) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks for OEM/ODM customization?
Yes, we support customization of the materials, structure, surface treatment, lock cylinder type, and identification for rotary locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restriction.
What is the standard delivery time for rotary locks?
Typically 15 to 30 days, depending on customization requirements and order quantity.
What materials are available for rotary locks?
Common materials include zinc alloy, SS304, SS316 stainless steel, and PA66+GF plastic, which can be selected based on corrosion resistance and strength requirements.
Does the rotary lock support waterproof and dustproof features?
Support. Available with IP65 or IP67 sealing ratings, ensuring reliable locking in long-term outdoor or industrial environments.
Can rotary locks be used in high humidity or marine environments?
Yes. It is recommended to use SS316 material, with options for corrosion treatment and sealed mounting.
What types of doors or enclosures are suitable?
The rotary lock can be used for electrical enclosures, communication cabinets, rail transit equipment, engineering vehicle hatches, and industrial enclosures.
