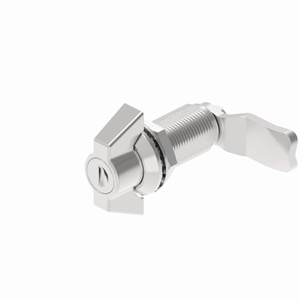

B-1202-140 Wing Handle Cam Lock
This is a GH40 Wing Handle Right Angle Lock, featuring a knob-operated wing handle. The rear rotating lock tongue can turn 90° to compress the sealing strip when the door panel is closed. The product is available in versions with and without a lock cylinder, suitable for electrical enclosures, control cabinets, communication cabinets, outdoor equipment boxes, generator doors, RV storage compartments, trailer toolboxes, and maintenance doors for machinery that require sealing, anti-loosening, and reliable locking for light to medium load door panels.
- Hole Size: M22*20
- Lock Body Specification: GH40
- Material: Stainless Steel / Zinc Alloy
- Protection Rating: IP65
- Compliance Standard: REACH No.1907/2006
- Usage scenarios: outdoor electrical enclosures, control cabinets, communication cabinets, generator sets, RV storage compartment doors, trailer toolboxes, engineering machinery maintenance doors.
Detailed Specifications

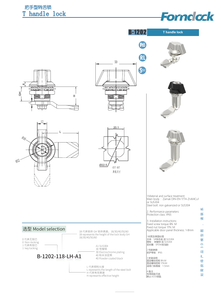

| Image | Model | Key Cylinder Included | Lock Body GH | Material and Surface Treatment | Download |
|---|---|---|---|---|---|
| B-1202-018-A1 | Keyless | GH18 | SUS304 | ||
| B-1202-018-40 | Keyless | GH18 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-118-A1 | Keyed | GH18 | SUS304 | ||
| B-1202-118-40 | Keyed | GH18 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-030-A1 | Keyless | GH30 | SUS304 | ||
| B-1202-030-40 | Keyless | GH30 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-130-A1 | Keyed | GH30 | SUS304 | ||
| B-1202-130-40 | Keyed | GH30 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-040-A1 | Keyless | GH40 | SUS304 | ||
| B-1202-040-40 | Keyless | GH40 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-140-A1 | Keyed | GH40 | SUS304 | ||
| B-1202-140-40 | Keyed | GH40 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-050-A1 | Keyless | GH50 | SUS304 | ||
| B-1202-050-40 | Keyless | GH50 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-150-A1 | Keyed | GH50 | SUS304 | ||
| B-1202-150-40 | Keyed | GH50 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||
| B-1202-060-A1 | Keyless | GH60 | SUS304 | ||
| B-1202-060-40 | Keyless | GH60 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) | ||

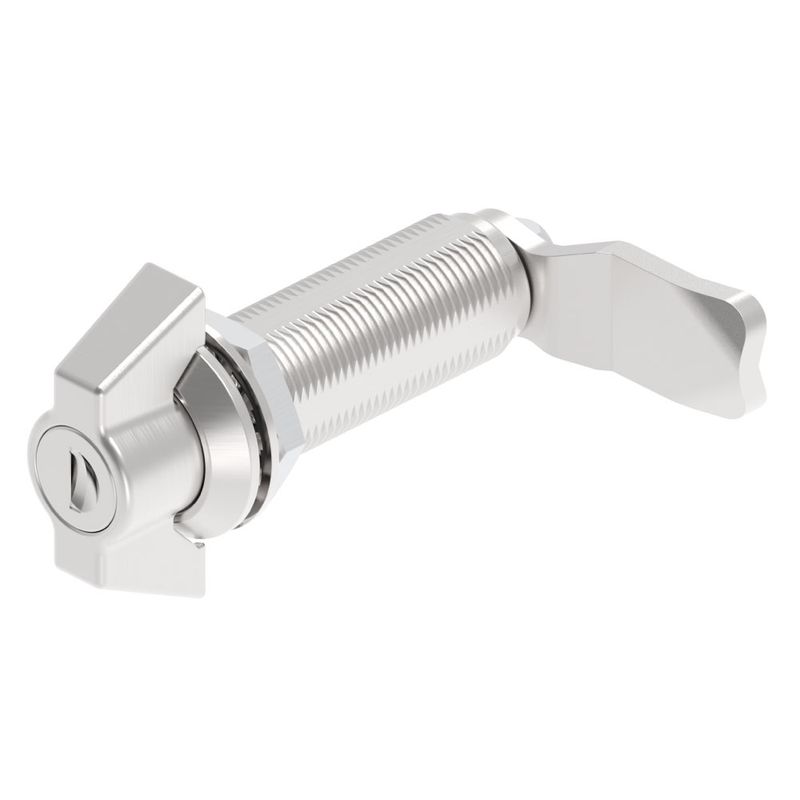

| B-1202-160-A1 | Keyed | GH60 | SUS304 | ||
| B-1202-160-40 | Keyed | GH60 | Die-Cast Zinc with Black Coating (Optional Chrome Plating) |
FAQ
Can you send samples?
Yes, we can provide a few free samples for the customer, but we hope that the shipping cost can be covered by you.
Does ForndLock offer rotary locks OEM/ODM customization?
Yes, we support customization of materials, structures, surface treatments, lock cylinder types, and markings for rotary locks to meet project requirements.
What is the minimum order quantity?
The general minimum order quantity is 200 PCS, but if stock is sufficient, flexible supply can be provided according to actual demand, with no minimum order quantity restrictions.
What is the standard delivery time for rotary locks?
Typically 15 to 30 days, depending on customization requirements and order quantity.
What materials are available for rotary locks?
Common materials include zinc alloy, SS304, SS316 stainless steel, and PA66+GF plastic, which can be selected based on corrosion resistance and strength requirements.
Does the rotary lock support waterproof and dustproof features?
Support. Available with IP65 or IP67 sealing ratings, ensuring reliable locking in long-term outdoor or industrial environments.
Can rotary locks be used in high humidity or marine environments?
Yes. It is recommended to use SS316 material, with options for corrosion treatment and sealed mounting.
What types of doors or enclosures are suitable?
The rotary lock is suitable for electrical enclosures, communication cabinets, rail transit equipment, engineering vehicle hatches, and industrial enclosures.
