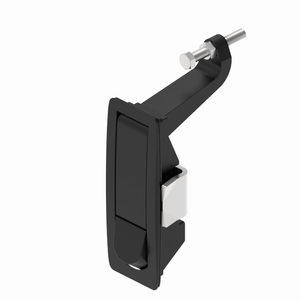

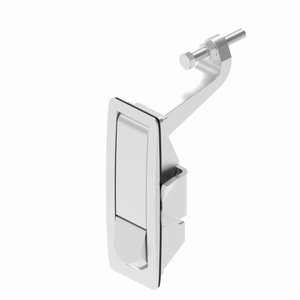

A-1442-124 High Button Lever Compression Lock
This is a lever-operated compression lock, suitable for vehicle equipment doors, air compressor enclosures, generator sets, construction machinery, and doors of industrial equipment subject to significant vibration. The product is available in a non-keyed version or a CH751 keyed version, with adjustable locking distance at the rear, allowing for customization based on door thickness, seal compression, and door frame structure. Once the lever is closed, it applies compressive force to the door panel, helping to reduce vibration loosening, door panel noise, and sealing issues. This product has an IP40 protection rating and is not recommended for high-water or high-pressure washing environments.
- Material: Zinc Alloy
- Protection Level: IP40
- Mounting Method: Adjustable Spacing
- Entry Restriction: Push Button Lock
- Application Scenarios: Vehicle equipment doors, pickup truck tops, air compressors, generator sets, construction machinery, industrial equipment doors, rail transit equipment boxes, vehicle toolboxes.
Detailed Specifications
| Image | Model | Stop Height | Limiting Method | Material and Surface Treatment | Download |
|---|---|---|---|---|---|
| A-1442-124-40 | 1~24mm | Keyless Raised Type | Powder Coated Matte Black | ||
| A-1442-124-30 | 1~24mm | Keyless Raised Type | Chrome Plating | ||
| A-1442-224-40 | 1~24mm | Non-keyed Flush Type | Powder Coated Matte Black | ||
| A-1442-224-30 | 1~24mm | Non-keyed Flush Type | Chrome Plating | ||
| A-1442-324-40 | 1~24mm | Keyed lock with CH751 key and dust cover type | Powder Coated Matte Black | ||
| A-1442-324-30 | 1~24mm | Keyed lock with CH751 key and dust cover type | Chrome Plating | ||
| A-1442-424-40 | 1~24mm | Cross slot (optional hexagon, square, and other tool types) | Powder Coated Matte Black | ||
| A-1442-424-30 | 1~24mm | Cross slot (optional hexagon, square, and other tool types) | Chrome Plating | ||
| A-1442-146-40 | 23~46 | Keyless Raised Type | Powder Coated Matte Black | ||
| A-1442-146-30 | 23~46 | Keyless Raised Type | Chrome Plating | ||
| A-1442-246-40 | 23~46 | Non-keyed Flush Type | Powder Coated Matte Black | ||
| A-1442-246-30 | 23~46 | Non-keyed Flush Type | Chrome Plating | ||
| A-1442-346-40 | 23~46 | Keyed lock with CH751 key and dust cover type | Powder Coated Matte Black | ||
| A-1442-346-30 | 23~46 | Keyed lock with CH751 key and dust cover type | Chrome Plating | ||
| A-1442-446-40 | 23~46 | Cross slot (optional hexagon, square, and other tool types) | Powder Coated Matte Black | ||
| A-1442-446-30 | 23~46 | Cross slot (optional hexagon, square, and other tool types) | Chrome Plating |
FAQ
Can you send samples?
Yes, we can provide a few free samples for customers, but we hope that the shipping costs will be covered by you.
Does ForndLock provide rotary locks for OEM/ODM customization?
Yes, we support customization of the materials, structure, surface treatment, lock cylinder type, and labeling of rotary locks to meet project requirements.
What is the difference between this lock and a standard rotary handle lock?
This is a Lever Compression Lock that generates clamping force when closed, ensuring a tighter fit between the door panel and the gasket. Standard rotary handle locks primarily rotate the latch to secure the door panel, which may not provide a significant clamping effect.
Why is it suitable for vehicles and air compressors?
During the operation of vehicles, air compressors, generator sets, and other equipment, significant vibrations can occur, causing ordinary locks to result in door panel looseness or abnormal noises. The Compression Lock can provide more stable clamping force, reducing the loosening issues caused by vibrations.
What is the purpose of adjustable spacing?
The adjustable spacing can be modified according to door thickness, frame distance, gasket thickness, and compression amount, providing better installation adaptability and facilitating on-site adjustment of the door panel compression level.
